3. GEAR SHIFTER CENTER CONSOLE

REMOVAL

AND

RE-FITMENT

ON

VEHICLE: -

Removal

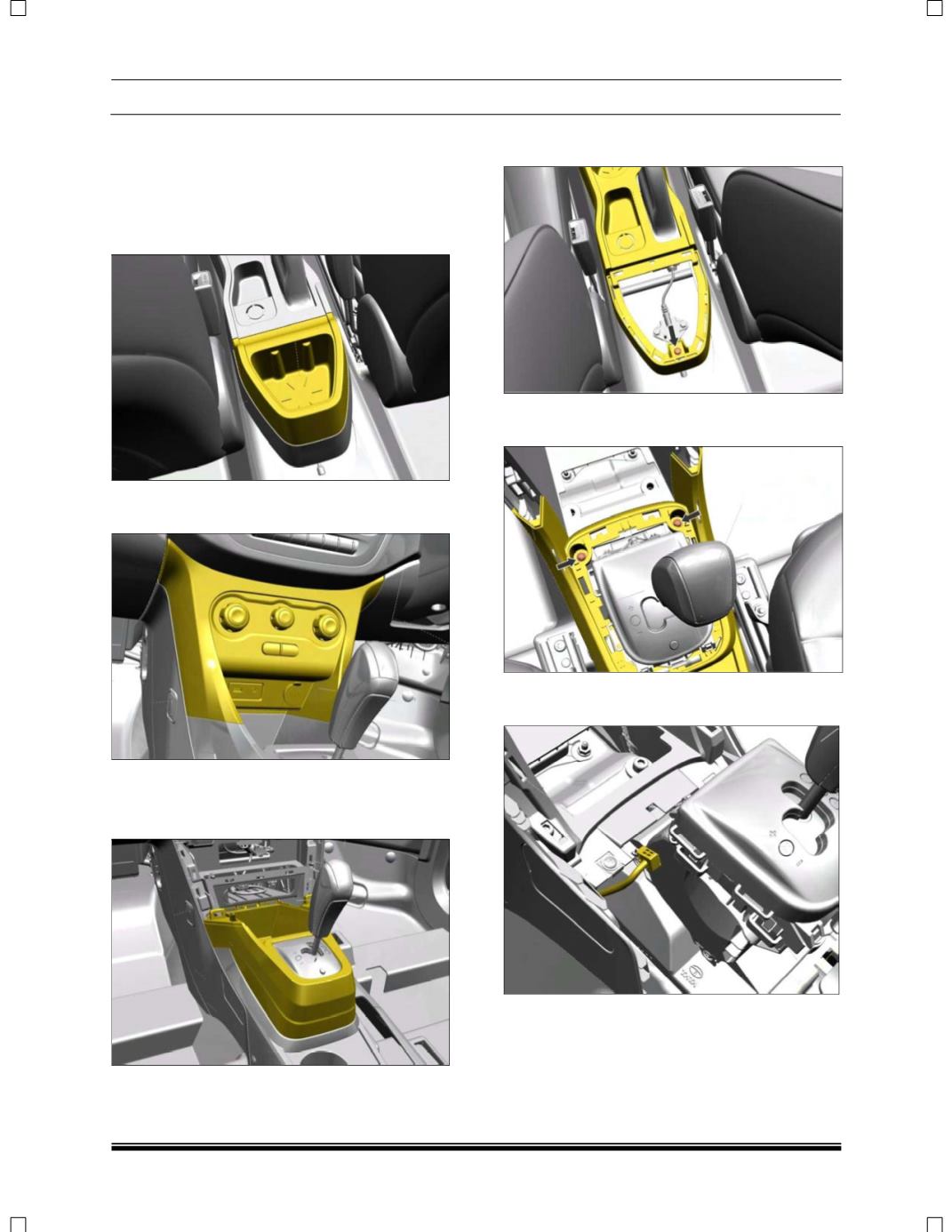

1. Pull out cup holder from console assembly as

shown below

2. Pull out center console along with HVAC

control panel, USB and power socket.

3. Disconnect the electrical connector of HVAC

control panel, USB and power socket.

4. Pull out AMT gear shift Bezel.

5. Remove Rear screws on floor console as

shown

6. Remove front screws on floor console as

shown by doing hand Brake adjustment.

7. Remove electrical connection from Gear

shifter Housing.
