REAR SUSPENSION

17

INSTALLATION

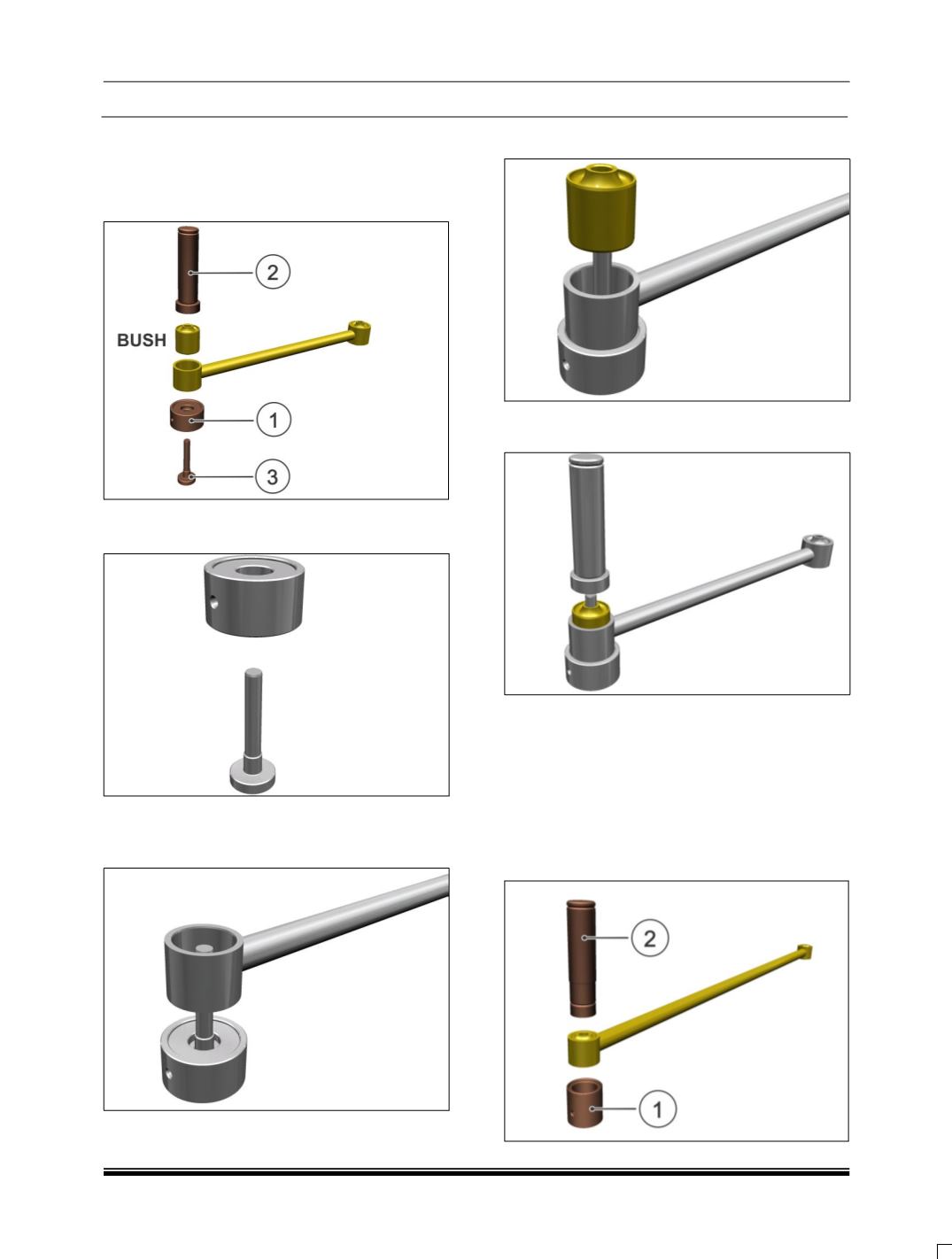

1. Install the Lower link bush using special tool

assembly

(Part No.2870 5890 01 13)

as show

in below arrangement.

2. Place the guide bush and mount the bush

support on the guide bush

.

3. Place the lower link guide bush housing onto

the support and mount the bush over the

housing.

4. Mount the bush over the housing.

5. Place the drift above the bush and press it

using Press machine.

NOTE

Apply soap and water to the bush, the inner

surface of the tool and the bore of assembly lower

link before installation

.

III. PAN HARD ROD BUSH REMOVAL

1. Remove the Pan Hard Rod bush using special

tool assembly

(Part No.2870 5890 01 10).

as

shown in below arrangement.
