REAR SUSPENSION
15
15.3 OVERHAULING
A. PRECAUTIONS
1. Since all suspension fasteners are critical in
suspension attachments with regard to
performance and safety of vehicle, these must
be replaced with same part number in case of
replacement.
2. Torque values must be maintained as
specified during reassembly for proper
retention of the parts. The replacement parts
should be of the same quality as of the
designed parts.
3. Damaged parts should be replaced only with
new parts. Welding, straightening or any other
form of repairing should not be attempted.
4. Care should be taken while handling spring
loaded suspension components.
5. The rubber bushes are not interchangeable;
hence care should be taken to avoid incorrect
assembly.
B DISMANTLING,
INSPECTION
AND
ASSEMBLY.

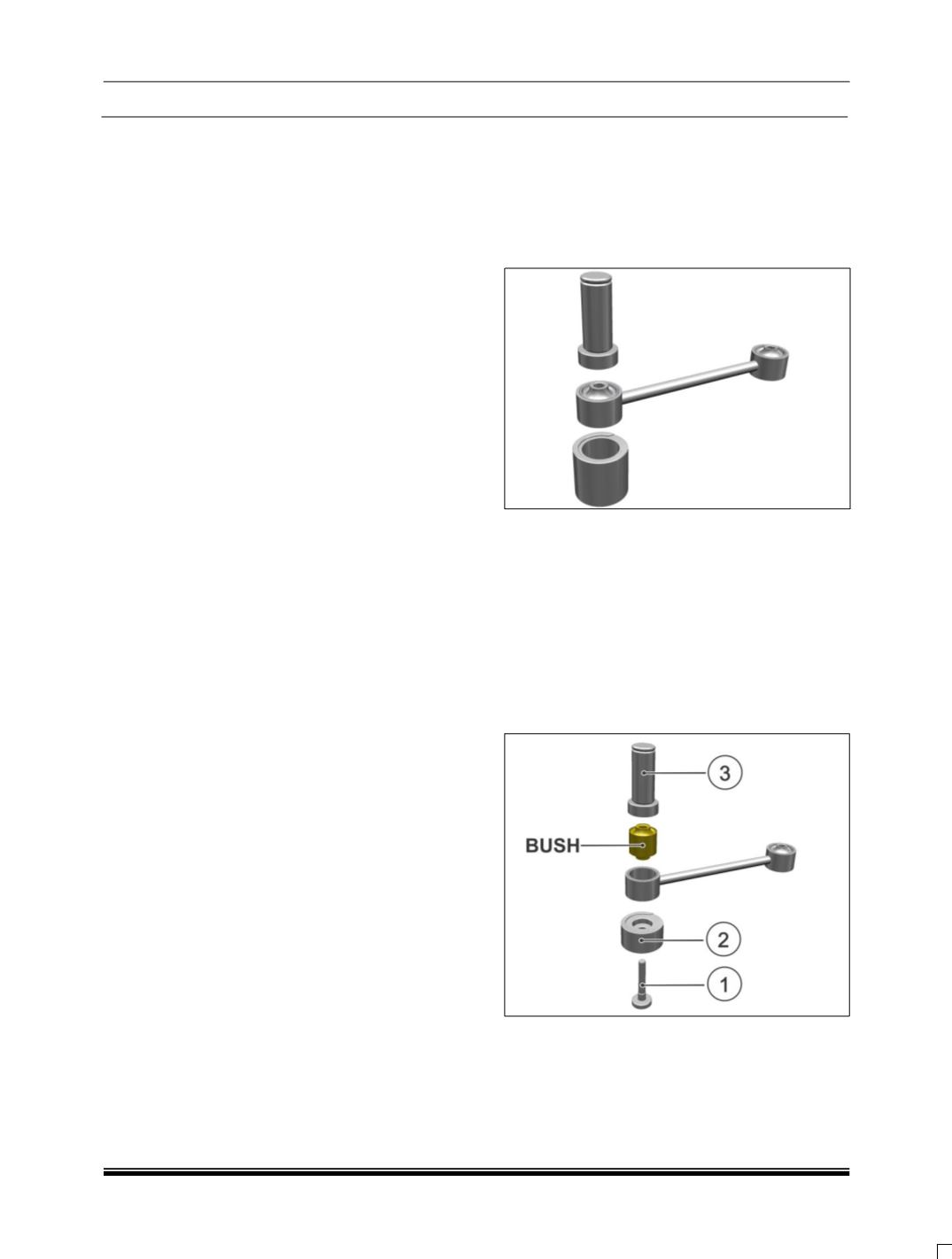

I. UPPER LINK BUSH REMOVAL
1. Remove the Upper link bush using special tool
assembly (
Part No.2870 5890 01 19.)
as
shown in below arrangement.
2. First place the Support
of special tool
assembly (Part No.2870 5890 01 19.)
below
the Upper link.
3. Place the Drift
on the Upper link bush housing
& then press the drift with the help of Press
machine to take out the bush.
INSTALLATION
1. Install the Upper link bush using special tool
assembly
(Part No. 2870 5890 01 21)
as
shown in below arrangement.
