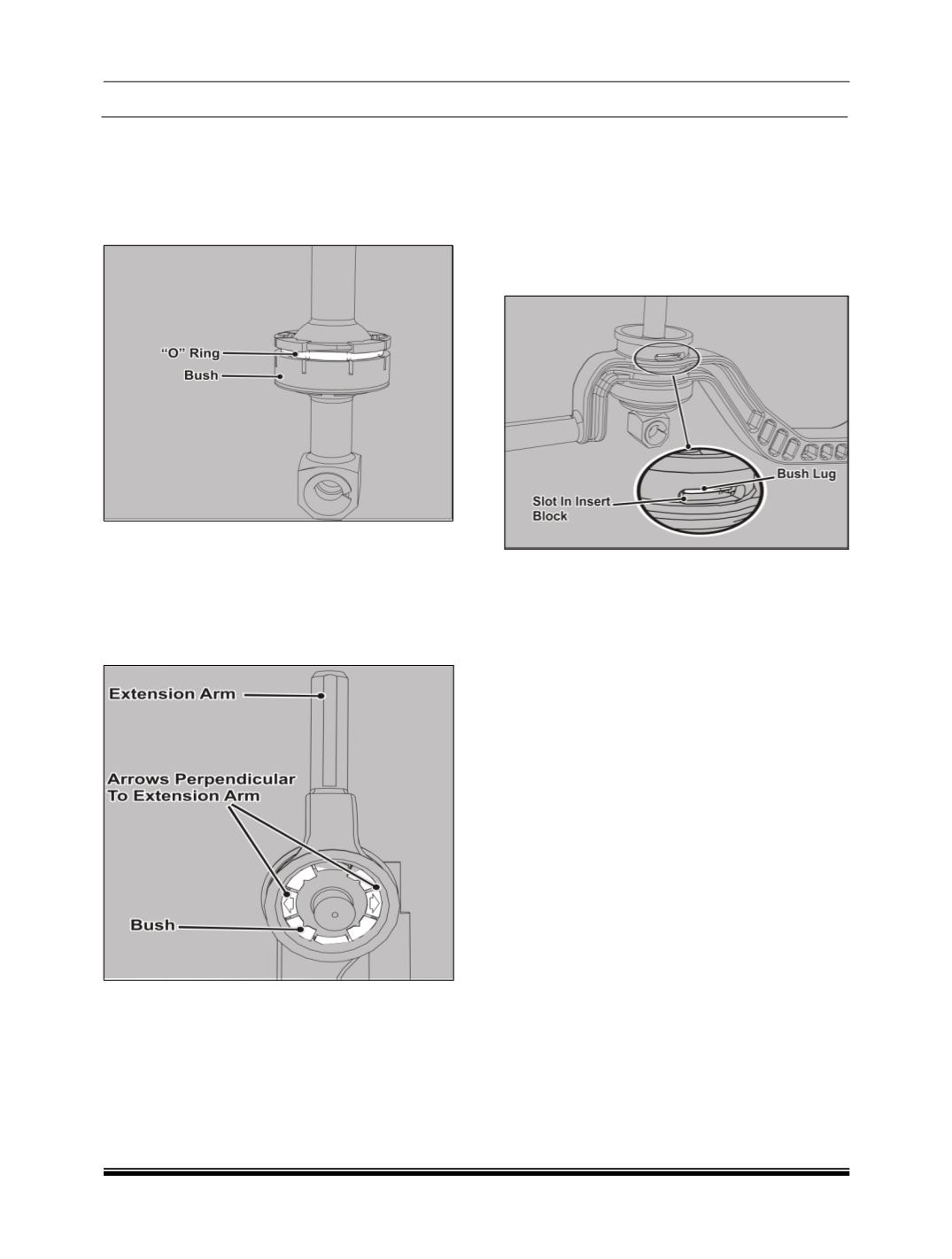

Slide the lever eye end edges through the slots pro-

vided on the plastic bush. Otherwise the edges can

damage the plastic bush.

4. Slide the “O” ring on the groove of plastic bush.

5. Press the gear shifter lever along with the bush

inside the bore of extension arm.

NOTE

While pressing care should be taken that the arrow

marks on the bush should be perpendicular to the

extension arm.

6. Lock the bush on the extension arm by turning

the lever and bush assembly in the clockwise di-

rection by 90º such that the arrows on the bush

should be in line with the extension arm as

shown below.

NOTE

Make sure that the bush lug is properly seated in

the extension arm slot.

7. Assembly extension arm with the insert block by

tightening two nyloc nuts.

8. Slide the rubber bellow at the bottom of the gear

shifter lever and place the bushes (2 Nos.) on to

the gear shifter lever.

9. Assemble the shift link if dismantled.

NOTE



All bushes should be properly checked before

assembly.



Always apply grease 3% MOS 320 on the pins

and inner surface of the bushes before assem-

bly.
