GEAR BOX

49

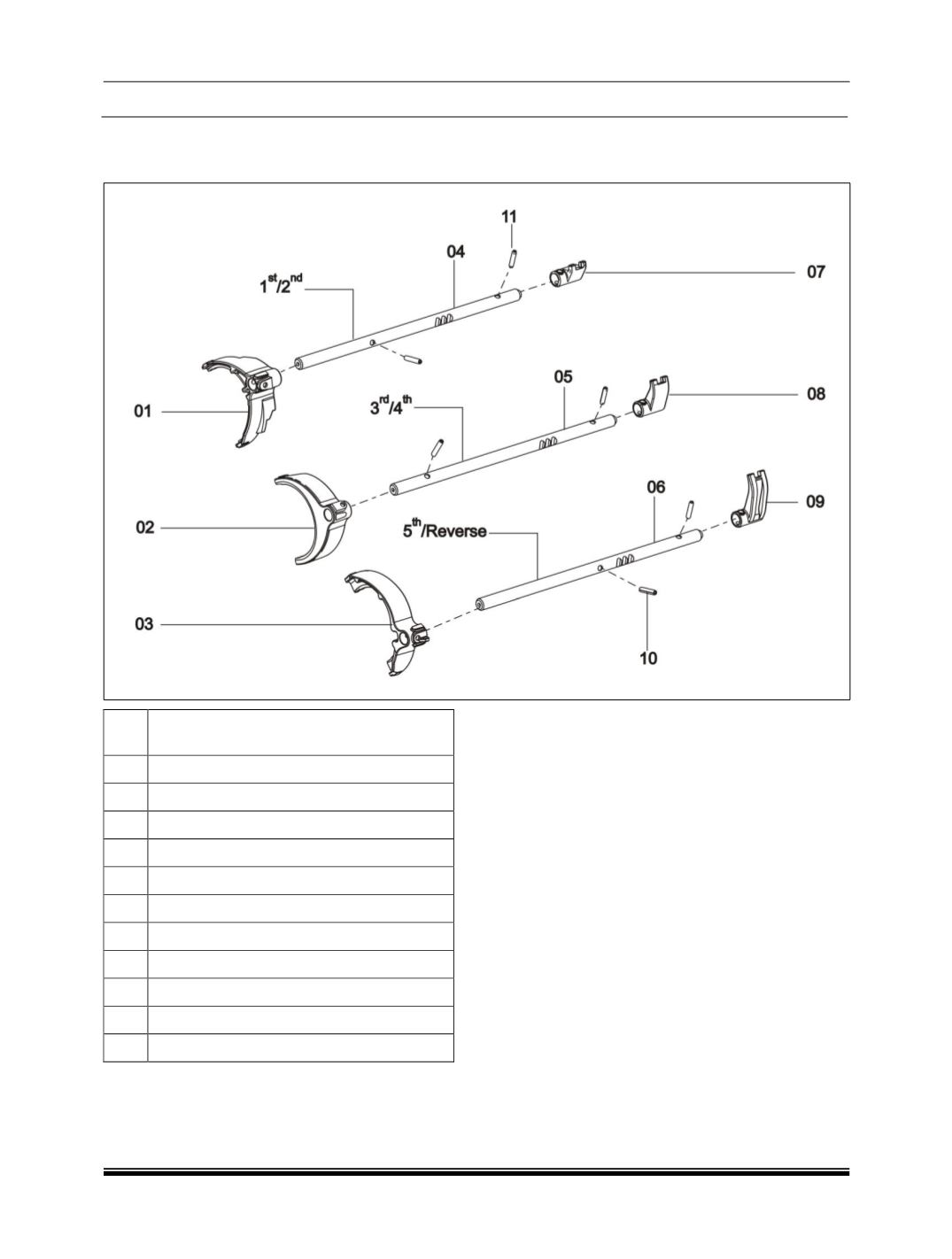

I. SHIFTER SHAFTS & FORKS

CONSTRUCTIONAL DETAILS

SR.

NO.

DESCRIPTION

01 Shifter fork 1st/2nd speed

02 Shifter fork,3rd/4th speed

03 Shifter fork 5th/reverse

04 Shifter shaft 1st/2nd speed

05 Shifter shaft 3rd/4th speed

06 Shifter shaft 5th/reverse speed

07 Selector head 1st/2

nd

08 Selector head 3rd/4

th

09 Selector head 5th/rev

10 Spiral pin 6X28

11 Spiral pin 6X24
