HEXA

ENGINE

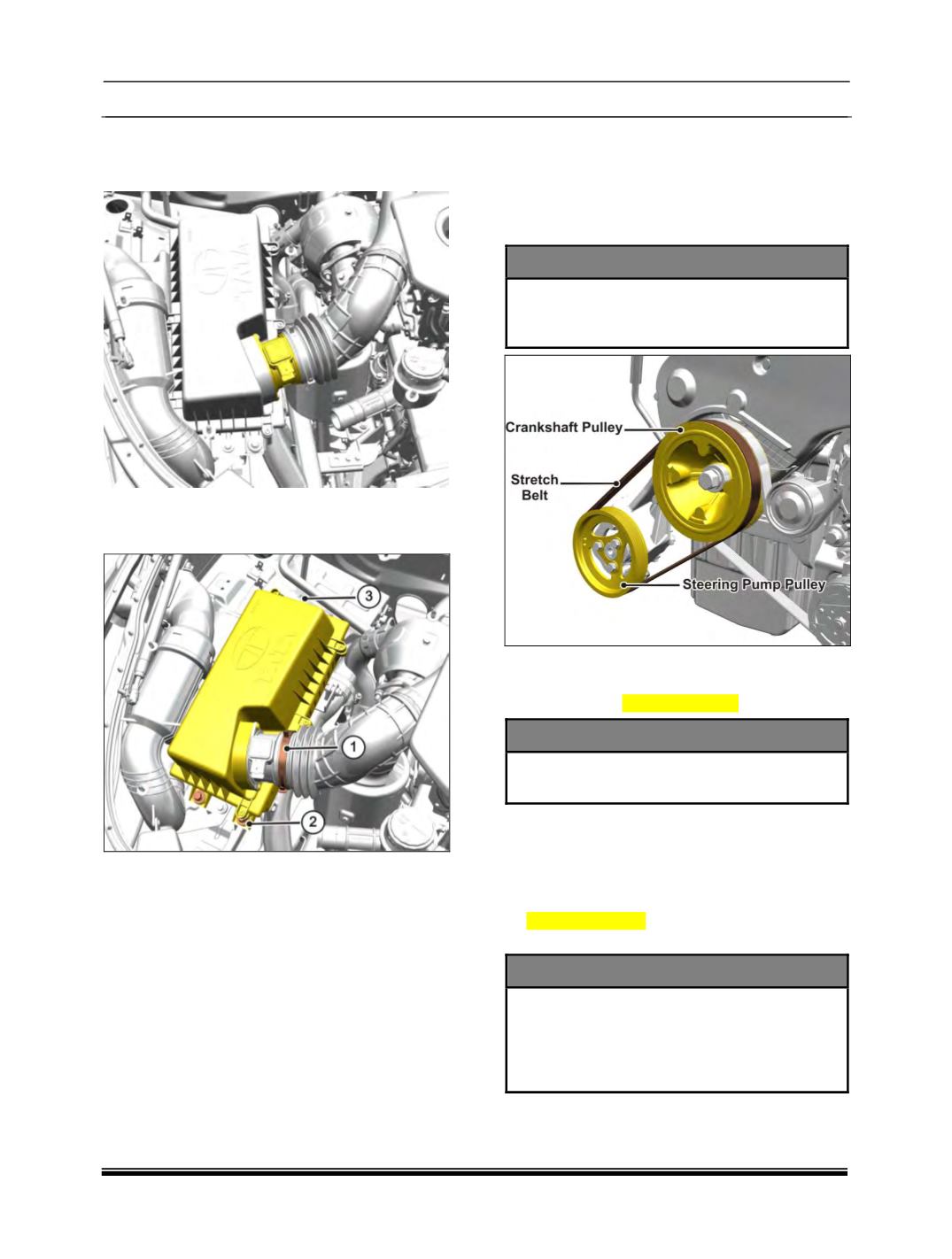

B. Air Filter Assembly Removal :

1. Disconnect the electrical connections of

SIMAF sensor.

2. Disconnect the clamp

(1).

Loosen and remove

the Air filter mounting bolts

(2 and 3)

and

remove the Air filter.

3. Take out the air filter.

Fitment :

For fitment follow the reverse order of removal.

C. Power Steering Pump Belt (Stretch Belt) :

The stretch belt used in this vehicle is multi ribbed

belt. This belt is pre-tensioned over power

steering pump and crank shaft pulleys and

therefore do not require the tensioner as this is

capable of efficient power transmission.

CAUTION



The stretch belt is not interchangeable and

should not be interchanged with normal V-

ribbed belts.

Stretch Belt Removal:

Remove the stretch belt from vehicle using stretch

belt removal tool 2702 5890 0623.

CAUTION



Stretch belt should not be reused. Once

removed it should be replaced by new one..

Fitment :

1. Install the new stretch belt on power steering

pump pulley.

2. Align the belt with the crank shaft pulley and

hold the belt with the mounting tool (Part no.

2702 5890 0622

) and rotate the crank shaft

pulley clockwise.

CAUTION



Ensure that the tool is correctly located

during the belt fitment process. Make sure

that while rotating the crank shaft pulley the

belt should not slip away from power

steering pump pulley.
