ENGINE
41
iii.

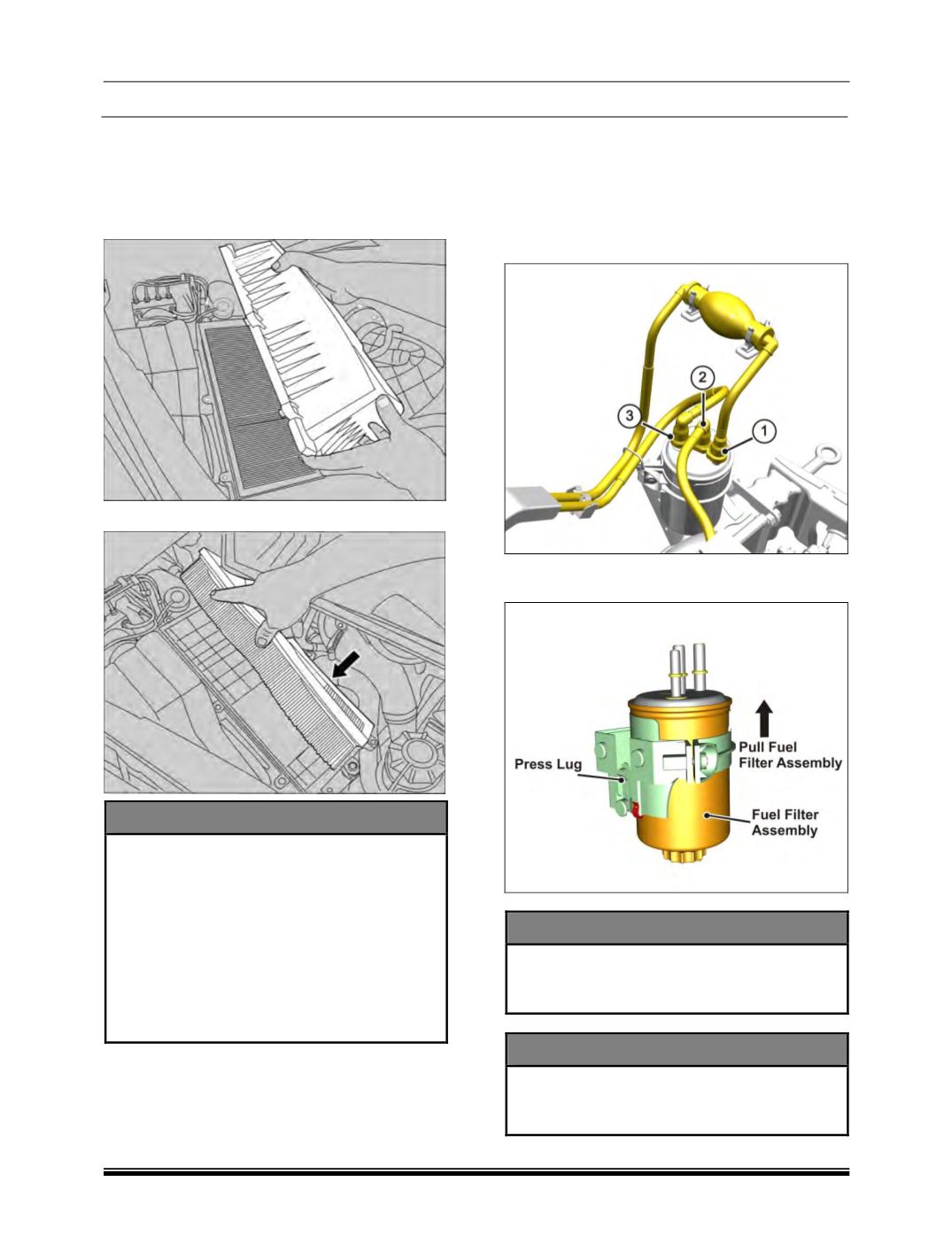

Air Filter Element Cleaning and
Replacement :
1. Loosen and remove the mounting screws of
air filter cover.
2. Lift the air filter cover along with hose.
3. Remove the air filter element.
NOTE
Check for any damage in the air filter
element which may result in intrusion of
unfiltered air. If found replace the air filter
element assembly
Check for any cracks in the air filter
housing and cover which may result in
intrusion of unfiltered air. If found replace
the air filter assembly.
If the service indicator red band appears
then replace the air filter element.
Fitment :
For fitment follow the reverse order of
removal.
Clean the interior of the air filter element
housing using a clean cloth.
iv.
Main Fuel Filter Replacement :
1. Disconnect the
(3)
fuel lines
(Quick fit
connector)
as indicated in the figure below.
1. Return line to in tank pump
2. To HP pump
3. From sedimentor
2. Fuel filter plastic bracket has vertical snap fit
lug, press it and pull the assembly fuel filter.
NOTE
Fuel filter bottle & bracket can be
separately replaced or the whole assembly
fuel filter with bracket can be replaced.
WARNING
The fuel filter will contain diesel in it, which
may get accidentally spilled onto the
operator if it is not handled properly.
