HEXA

HVAC

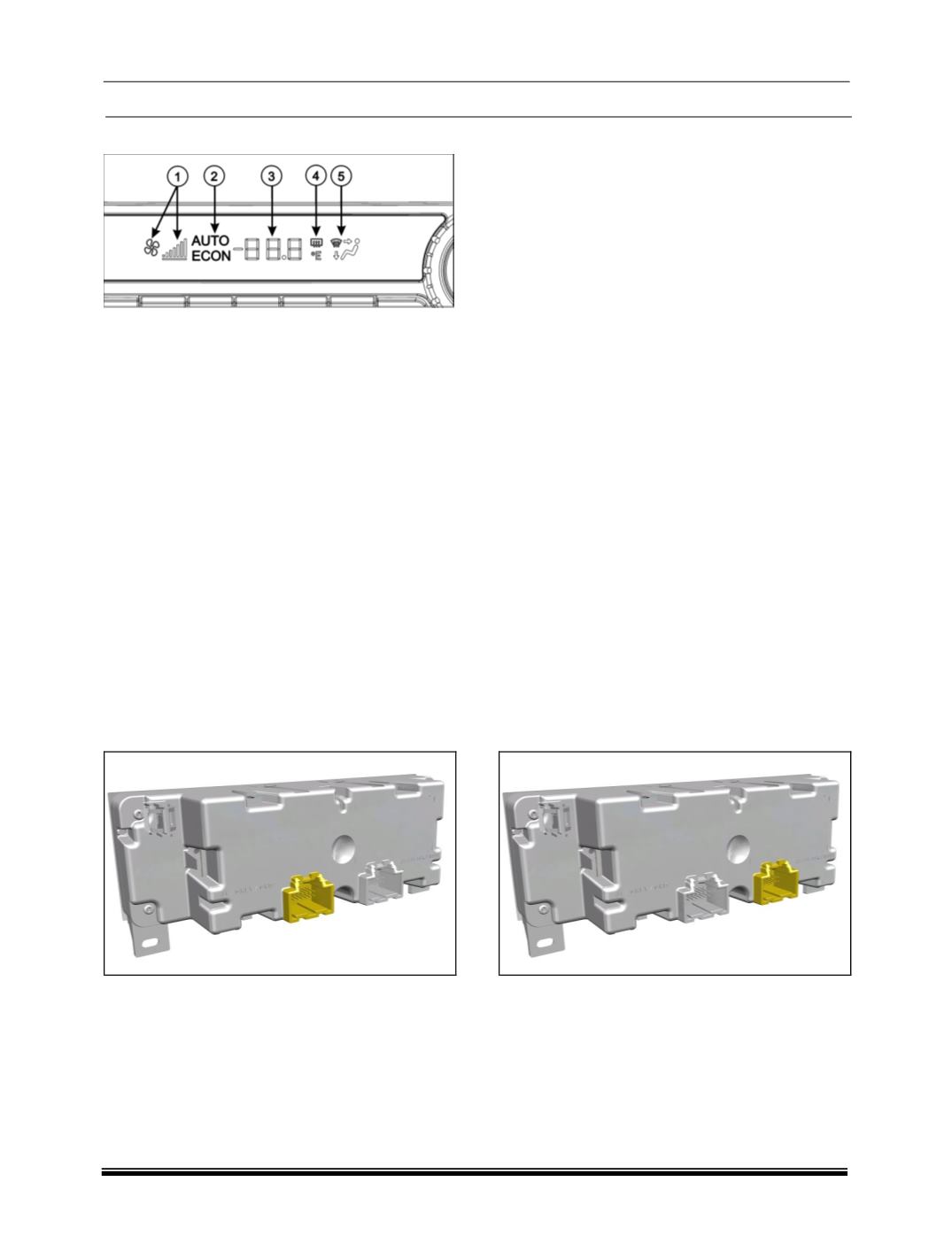

C. VF DISPLAY

(Vacuum Fluorescent display)

The VF display gives display of the following features

1. Blower speed bars indicating blower speed (

bars indicating 7 speeds

)

2. Text indicating Auto /ECON mode

3. Temperature display showing the user set tem-

perature in °C.

4. Rear Defog indicator symbol indicating Rear

Defog ON.

5. MAN mode icon indicating the Air distribution

modes (

Chest, Chest-Leg, Leg, Leg-Defrost, De-

frost

)

NOTE:

The display shall be entirely blank when the ignition

is switched to OFF position.

CONNECTOR DETAILS

1. REAR VIEW OF CONTROL PANEL

It is having two 16 pin connectors .The connectors will be named as J1and J2.

J1 Connector

J2 Connector
