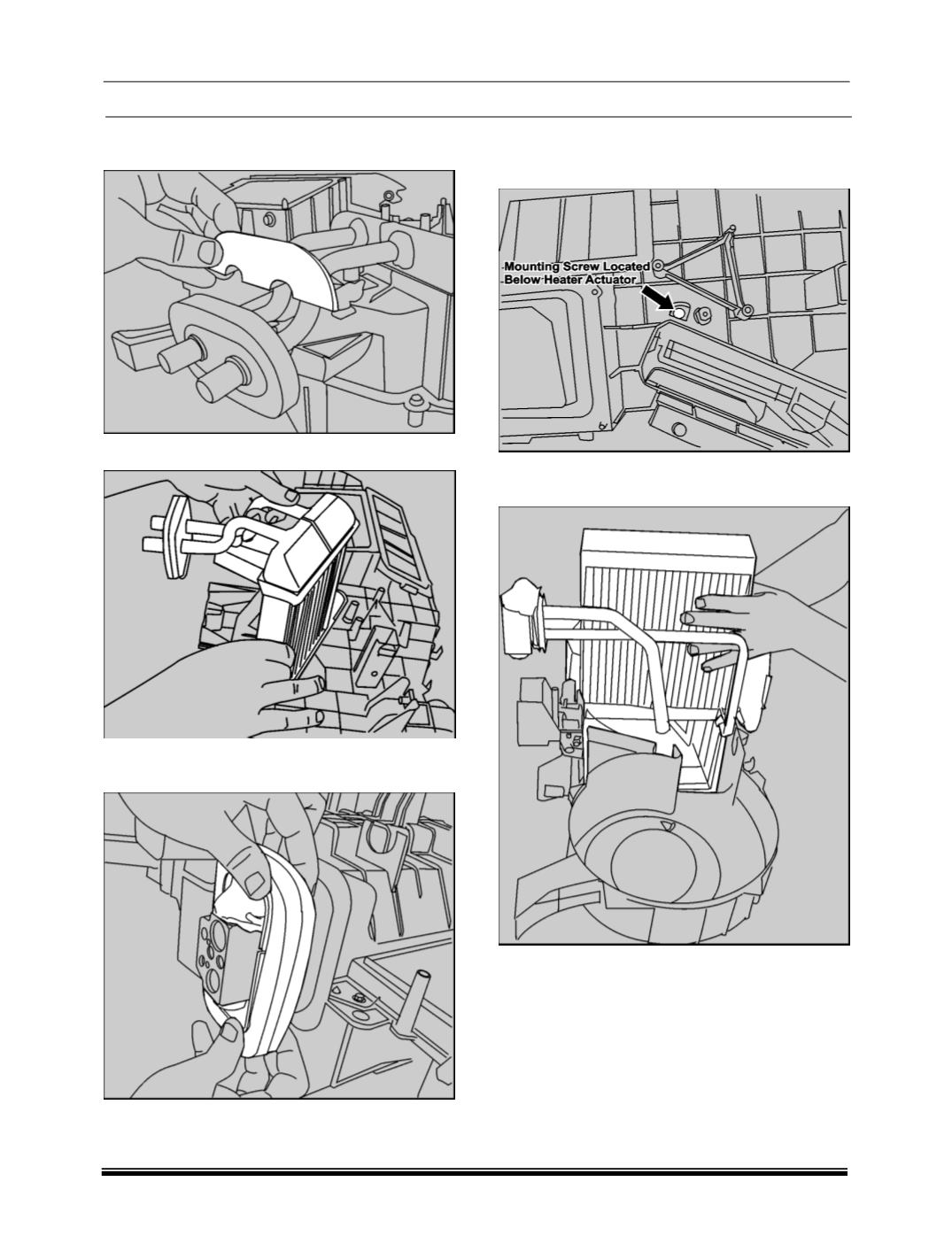

11.Remove the mounting screw and take out the

upper lock of heater assembly.

12.Remove the heater assembly.

13.Pull out the TXV foam so that the mounting screw

underneath foam is visible.

14.Loosen and remove 15 mounting screws of cas-

ing and 1 mounting screw below heater door

actuator and separate the casing.

15.Remove the evapourator along with TXV and

thermister.
