HVAC
29

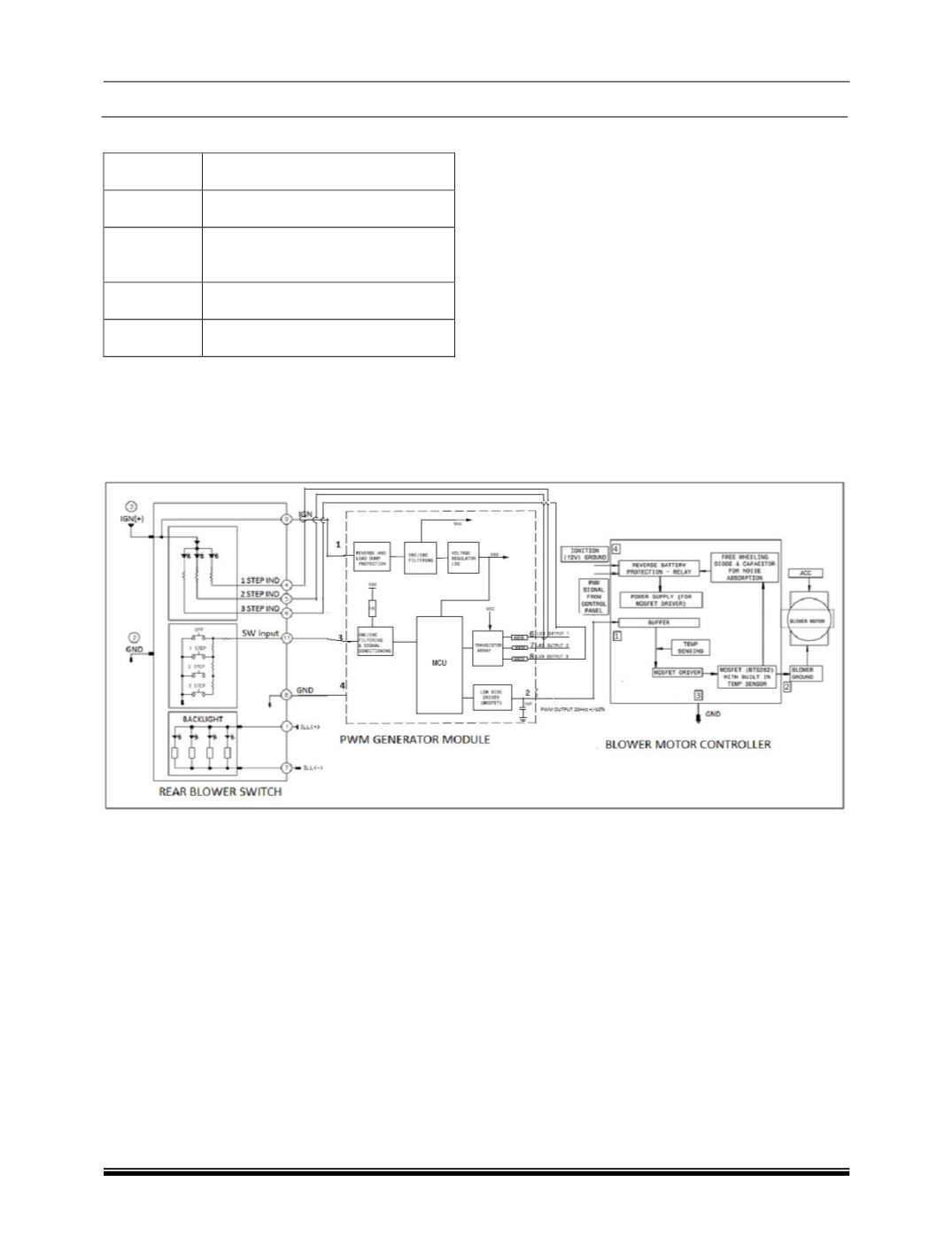

Connector A
PIN NO
DESCRIPTION
1
PWM SIGNAL (20KHz)
2
BLOWER GROUND (Switched
Ground)
3
BATTERY GROUND
4
IGNITION 12 V / 300mA
CIRCUIT
|
|
