BODY

64

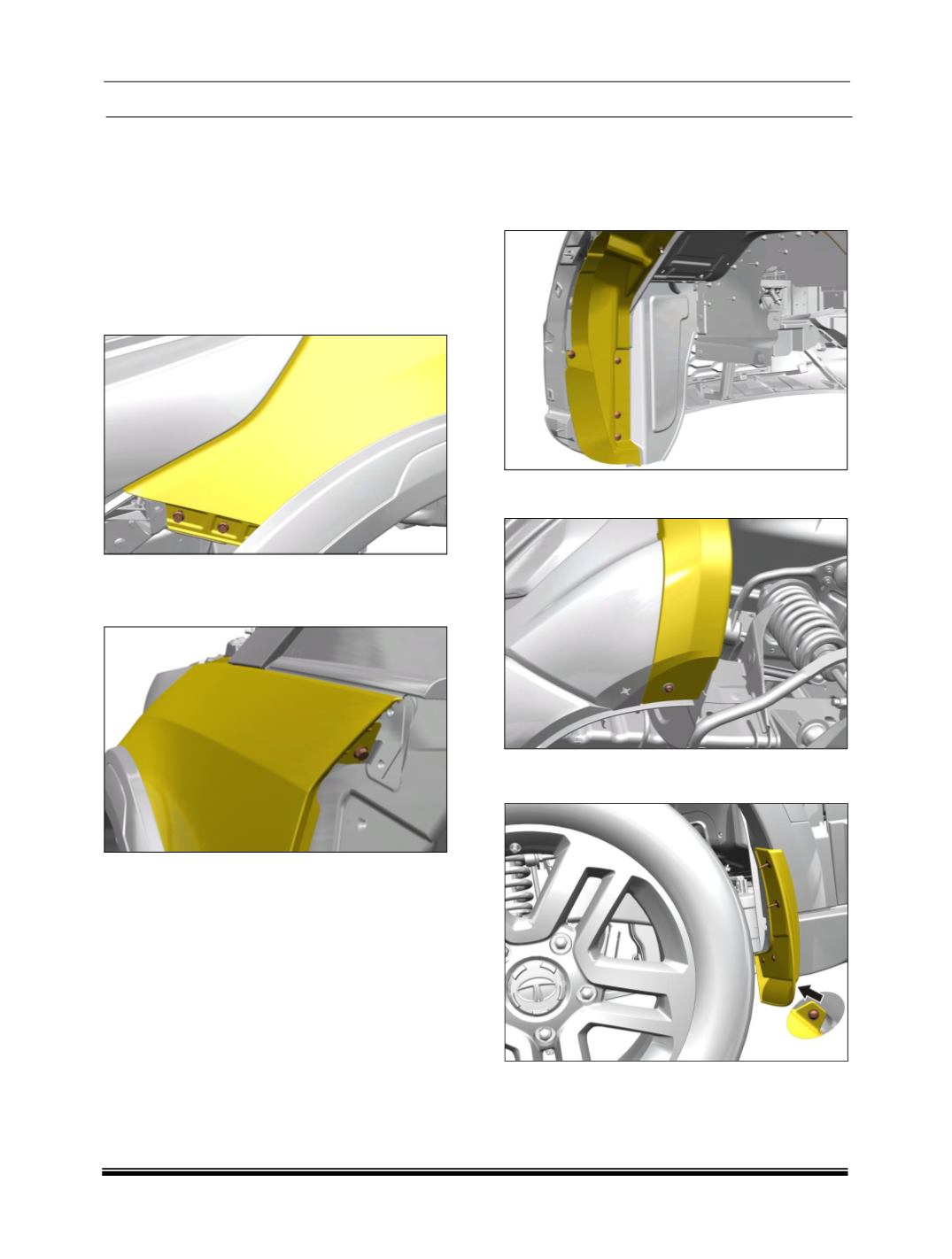

S. FRONT FENDER

REMOVAL

1. Remove front bumper assembly.

(For

procedure refer bumper removal process)

2. Remove front wheel arch cover.

(For

procedure refer front wheel arch removal

process)

3. Loosen and remove mounting screws

(4 Nos.)

along with the washers.

4. Open the front door. Loosen and remove the

mounting screw along with the washer from

the top.

5. Remove the valance cover.

(For procedure

refer valance cover removal process.)

FITMENT

For fitment follow reverse procedure of removal.

T. FRONT WHEEL ARCH COVER

REMOVAL

1. Loosen and remove outer wheel arch

mounting screws

(4Nos.)

.

2. Loosen and remove the mounting screw which

connects the arch cover to the front bumper.

3. Remove the front mud flap by removing 3nos

screws and 02 nos plastic rivets.
