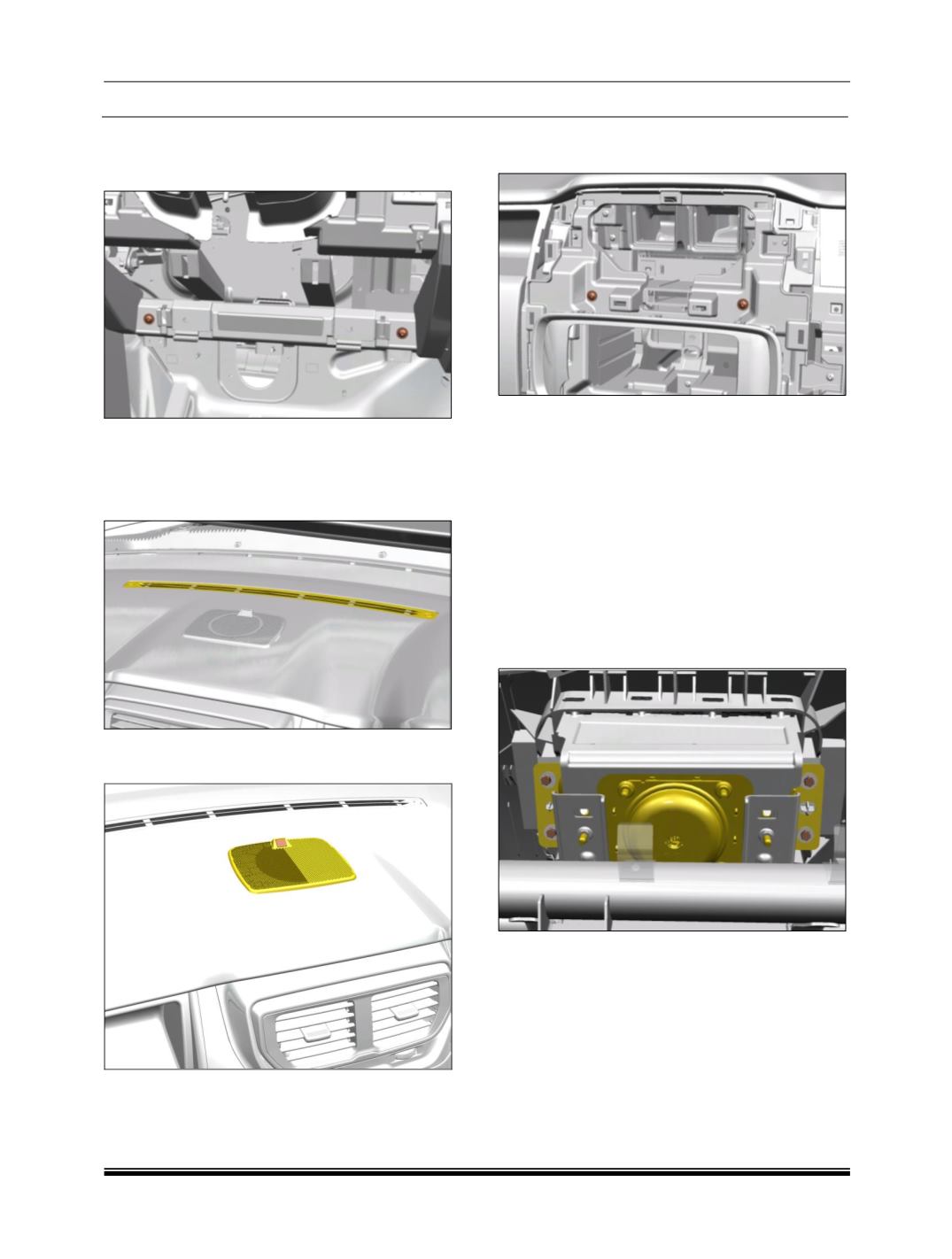

22. Loosen and remove two mounting screws
which are there behind the lower steering
column cover.
23. Remove trim-A from both sides.
(For
procedure refer trim removal section.)
24. Pull out the defrost grill and disconnect the
solar sensor connection.
25. Pull out the speaker assembly (applicable for
Xm version only).
26. Loosen two mounting screws which are behind
the TFT.
27. Remove the dashboard from the vehicle.
ASSEMBLY:
For assembly follow reverse procedure of the
removal.
I. PAB MODULE:
REMOVAL:
1. Remove dashboard assembly.
(For procedure
refer dashboard removal process.)
2. Loosen and remove four mounting screws and
carefully separate the PAB module from the
dashboard.
NOTE:
After removal keep the deploying part facing
upward and away from loose parts.
ASSEMBLY:
For assembly follow reverse procedure of removal.
