IMMOBILIZER SYSTEM STATUS:
During Ignition off, immobilizer status bulb (“Lock” symbol on the instrument cluster) blinks, indicating
Immobilizer is awaiting E-key.
When the ignition key is turned to the “ON” position, if the status bulb goes OFF indicates that the
system is working and the vehicle is unlocked (Engine is ready to start). If the status bulb is continuously
ON, there may be something wrong with key or with the immobilizer system.

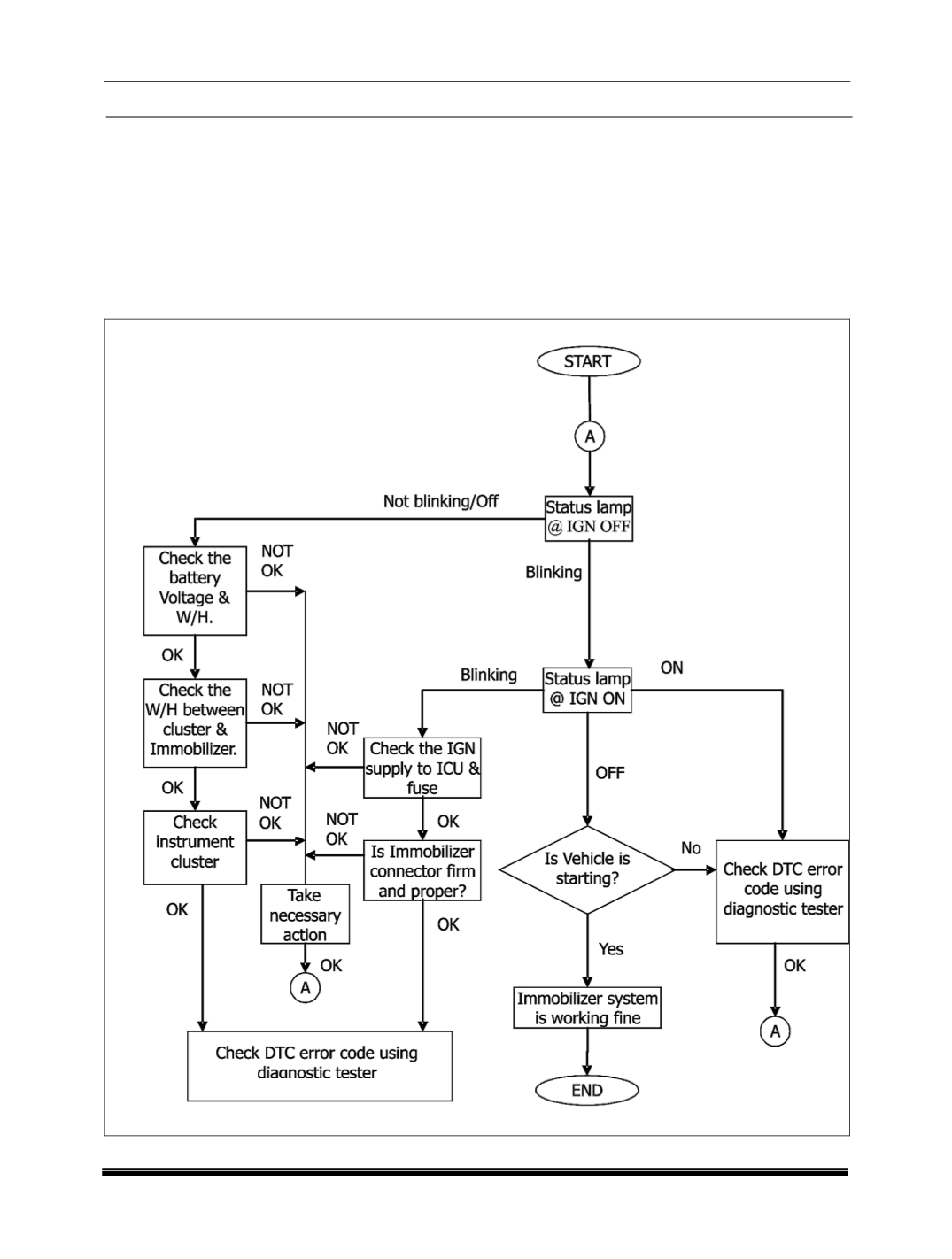

8.14.1 TROUBLESHOOTING THROUGH IMMOBILIZER STATUS BULB:
FLOWCHART:
