ELECTRICAL
41

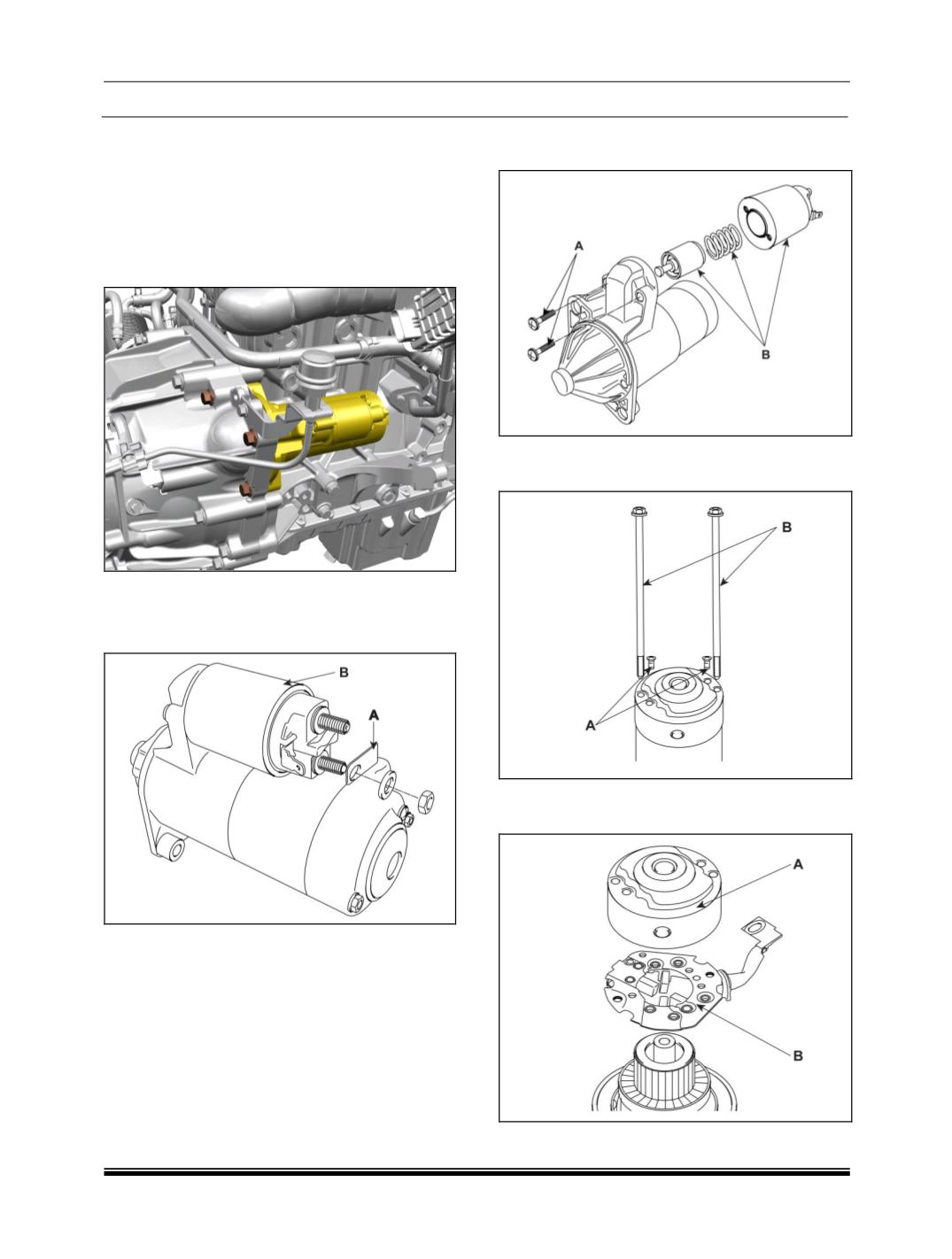

REMOVAL:
1. Remove the air filter assembly;
(Refer Air filter
assembly removal process).
2. Disconnect the electrical connections of the
starter motor.
3. Loosen and remove the 3 mounting bolts (1)
and remove the starter motor (2).
DISMANTLING:
1. Disconnect the M-terminal (A) on the magnet
switch assembly (B).
2. After loosening the 2 screws (A), detach the
magnet switch assembly (B).
3. Loosen the brush holder mounting screw (A)
and through bolts (B).
4. Remove the rear bracket (A) and brush holder
assembly (B).
