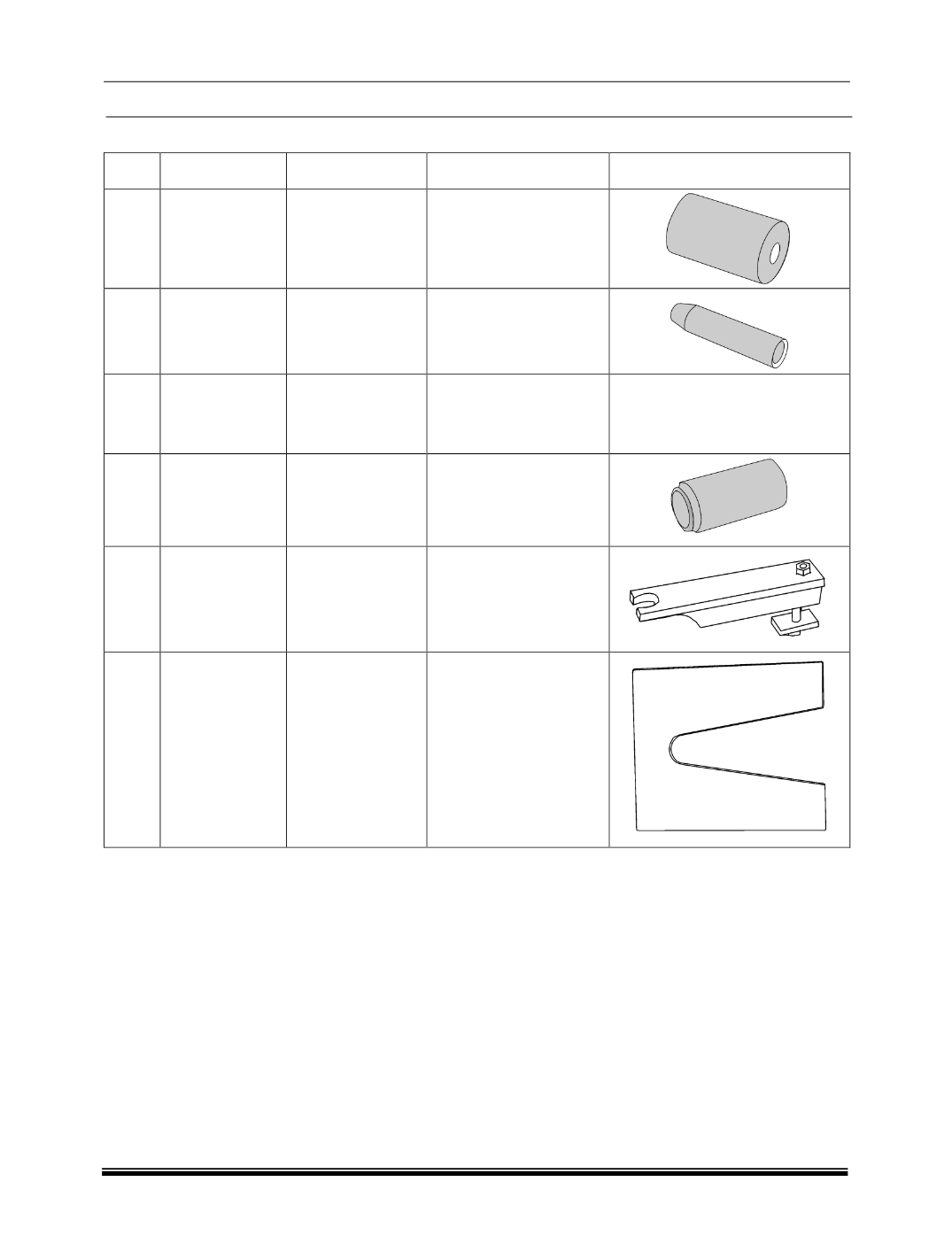

SPECIAL TOOLS LIST:

SR.

NO

DESCRIPTION

APPLICATION

TOOLS

1

Brush holder

H-S/KDEP 188 F

002 H30 169

For holding carbon

brushes while removing

/ assembling BRUSH

HOLDER

2

Ram

03-KDAL 5496

F 002 H30 152

For pushing out stop

ring

3

Mandrel

H- S/KDEP /

1132 / 0 / 1

For pressing out/in

bushes from drive end

housing and

commutator end shield.

4

Sleeve

03-KDAL 5028 9

681 033 340

For assembling spring

ring

5

Holding tool

03-KDAL 5487

F 002 H31 104

For holding armature

while assembling spring

ring.

6

Supporting

plate

H-S/KDEP 189

F 002 H30 801

For holding armature

while assembling spring

ring.
