PROPELLER SHAFT
9
A. PROPELLER SHAFT
(4X2)

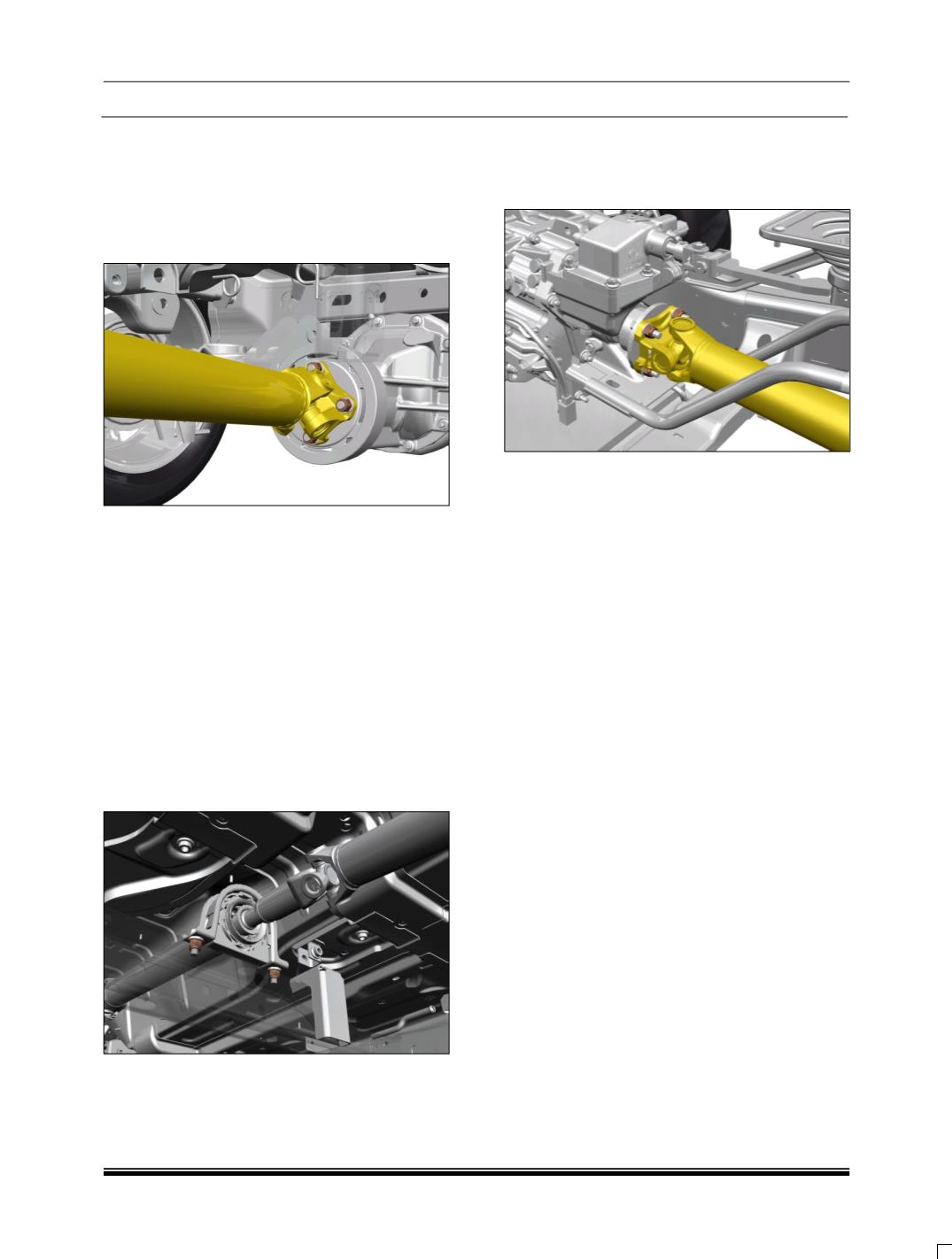

I REAR PROPELLER SHAFT REMOVAL
1. Loosen and remove the mounting nuts
(Nos.4)
of bearing strap from rear axle. Disconnect the
rear end of the propeller shaft from the
companion flange.
2. Pull out the propeller shaft from the slip joint at
the centre bearing.
FITMENT
For fitment follow the reverse procedure of
removal.
II FRONT PROPELLER SHAFT REMOVAL
1. Remove the rear propeller shaft.
2. Remove the Stone guard rear piece from
bottom side for easy access.
(For stone guard
removal procedure refer Body section)
3. Loosen and remove the bearing strap bracket
retaining bolts at centre bearing joint from
cross member.
4. Loosen and remove the mounting bolts for
universal joint flange on the gear box side.
Take out the front end propeller shaft from
gear box.
3. Carefully remove the propeller shaft along with
centre bearing, bracket and rubber cushion.
FITMENT
For fitment follow the reverse procedure of
removal.
NOTE
Discard the Nyloc nut and use new at the time
of assembly.
Check the slip yoke assembly after fitment.
