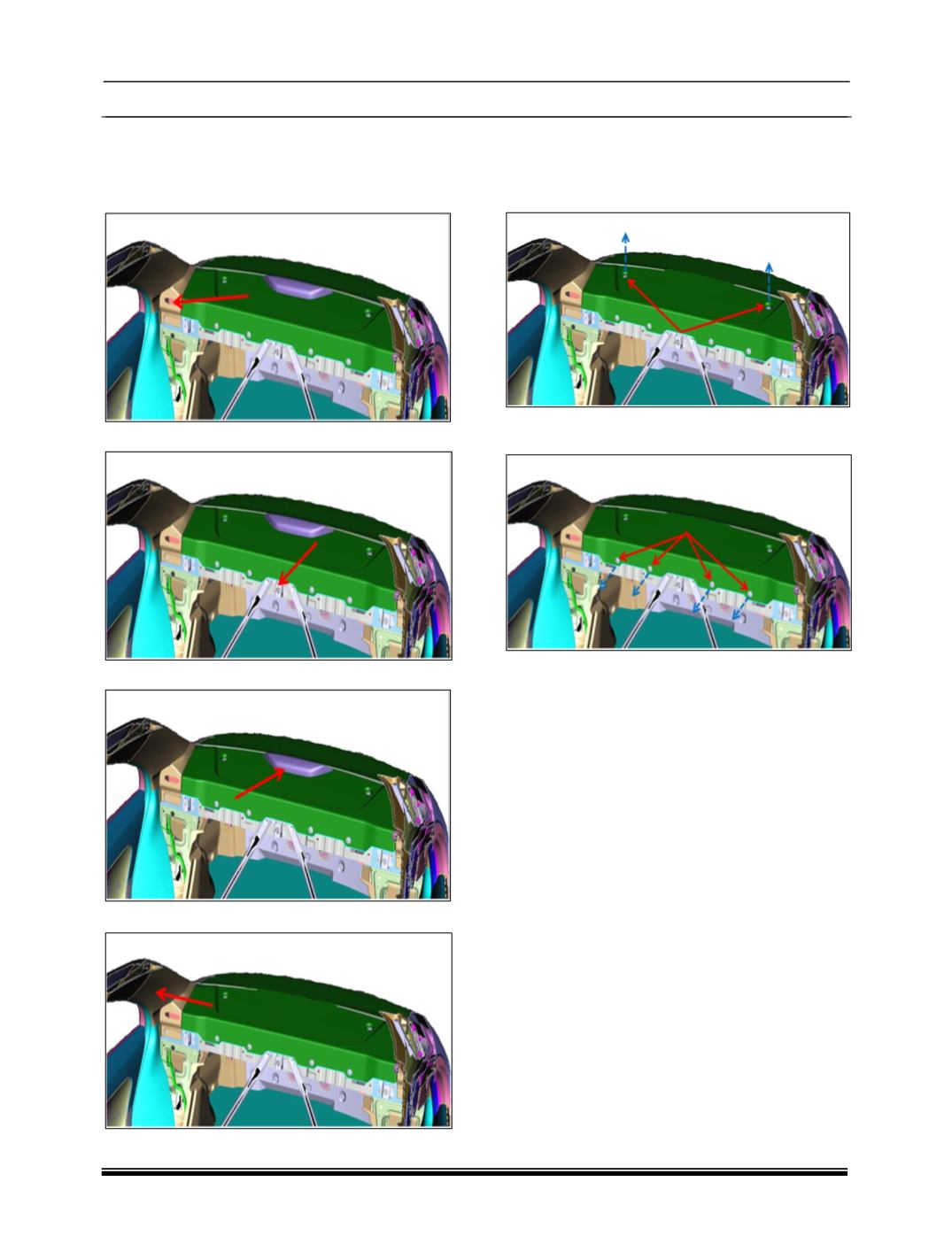

9. Parcel Shelf :
Removal :
1. Removal the seat belt bezel to facilitate
removal of C pillar upper.
2. Remove the seat back assembly.
3. Remove the HMSL.
4. Remove the C pillar upper.
5. Remove the 2 FIR tree clips which are for top
mountings (-Z direction) gently.
6. Remove the 4 FIR tree clips which are for
side mounting (X direction) gently
7. Remove the parcel shelf first by lifting the
inner edge (Rear seat side edge), so that you
see the locator being disengaged. Then you
can pull out the trim.
Re-Fitment :
Carry out the removal process in reverse
order in appropriate sequence for re-fitment of
parcel shelf.
