SUSPENSION
20

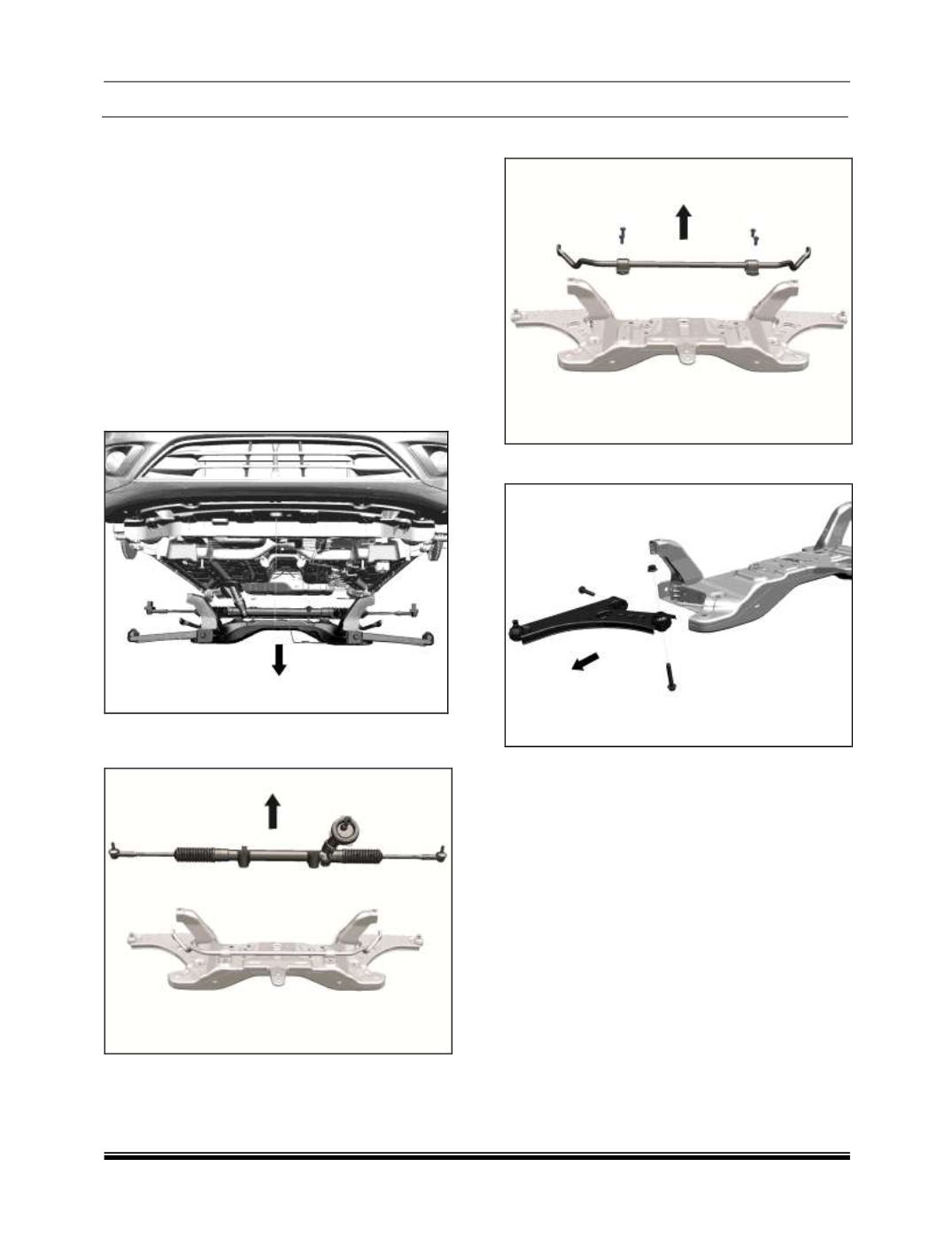

6.7.4 REMOVAL AND INSTALLATION OF
SUBFRAME ASSEMBLY.
REMOVAL OF SUBFRAME ASSEMBLY
1. Remove the front wheel and disconnect the
anti roll bar joint.
2. Disconnect the steering tie rod ball joint from
the knuckle.
3. Disconnect the EPAS. (steering group)
4. Remove the C mount of the engine from the
Subframe.
5. Loosen the Subframe bolts and lower the
assembly (Subframe, antiroll bar, steering
rack, lower arm).
6. Remove the steering rack assembly from
Subframe.
7. Remove the anti roll bar from Subframe.
8. Remove the lower arm assembly
