3A.1.6 INTAKE SYSTEM

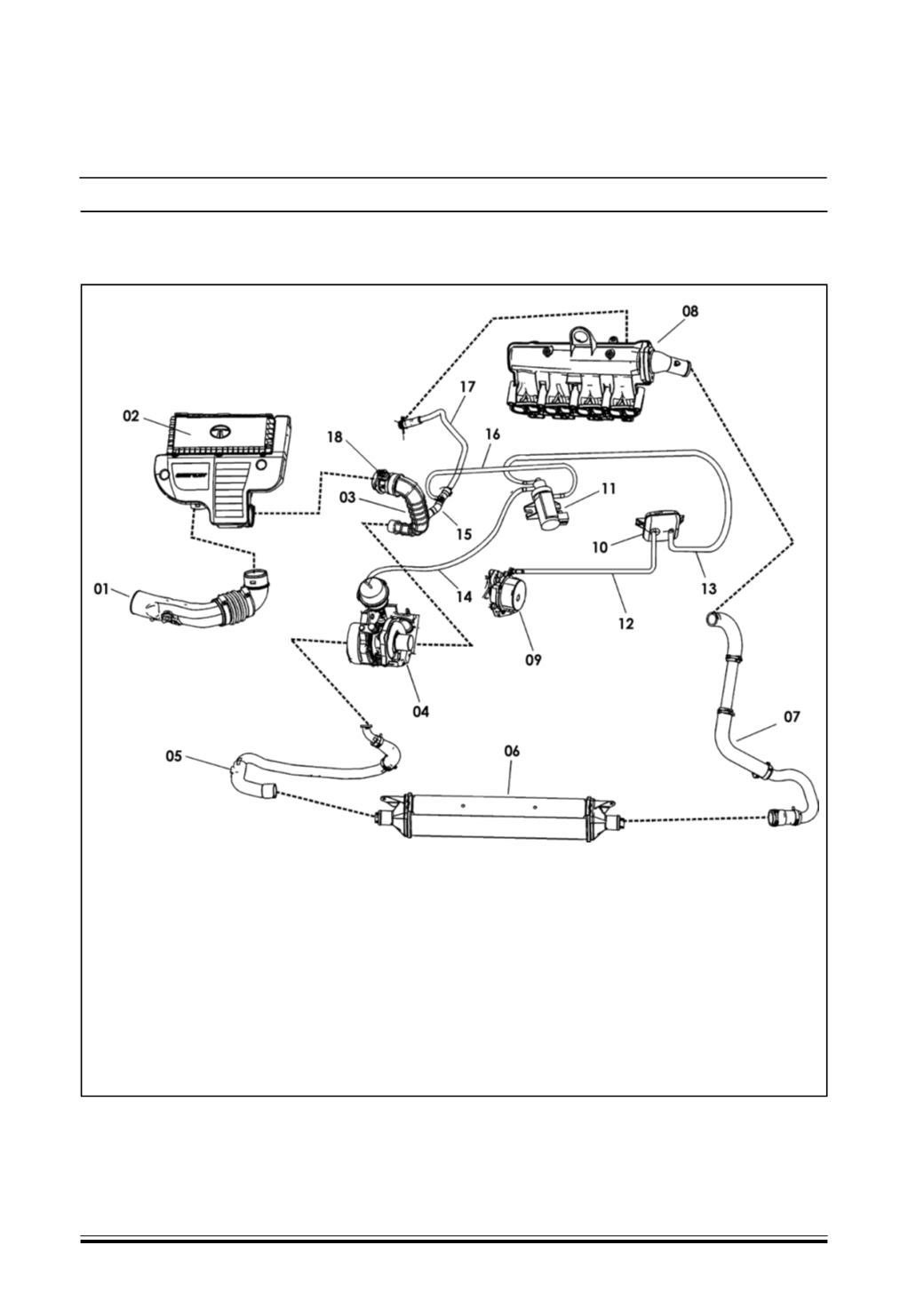

AIR SUPPLY CIRCUIT
01 Cold air intake
02 Air filter assembly
03 Intake air hose to turbocharger
04 Turbocharger assembly
05 Turbocharger outlet air pressure pipe
06 Intercooler
07 Intake chamber supply air pressure pipes
08 Intake manifold assembly
09 Vacuum pump
10 Vacuum accumulator
11 EVRV (Electronic Vacuum Regulating Valve)
12 Hose (Vacuum pump to Vacuum accumulator )
13 Hose (Vacuum accumulator to EVRV)
14 Hose (EVRV to Turbocharger assembly)
15 Blow by hose
16 EVRV to Intake air hose
17 Pipe (Intake air hose to Intake manifold assy)
18 Air mass flow meter
