ELECTRICAL
43

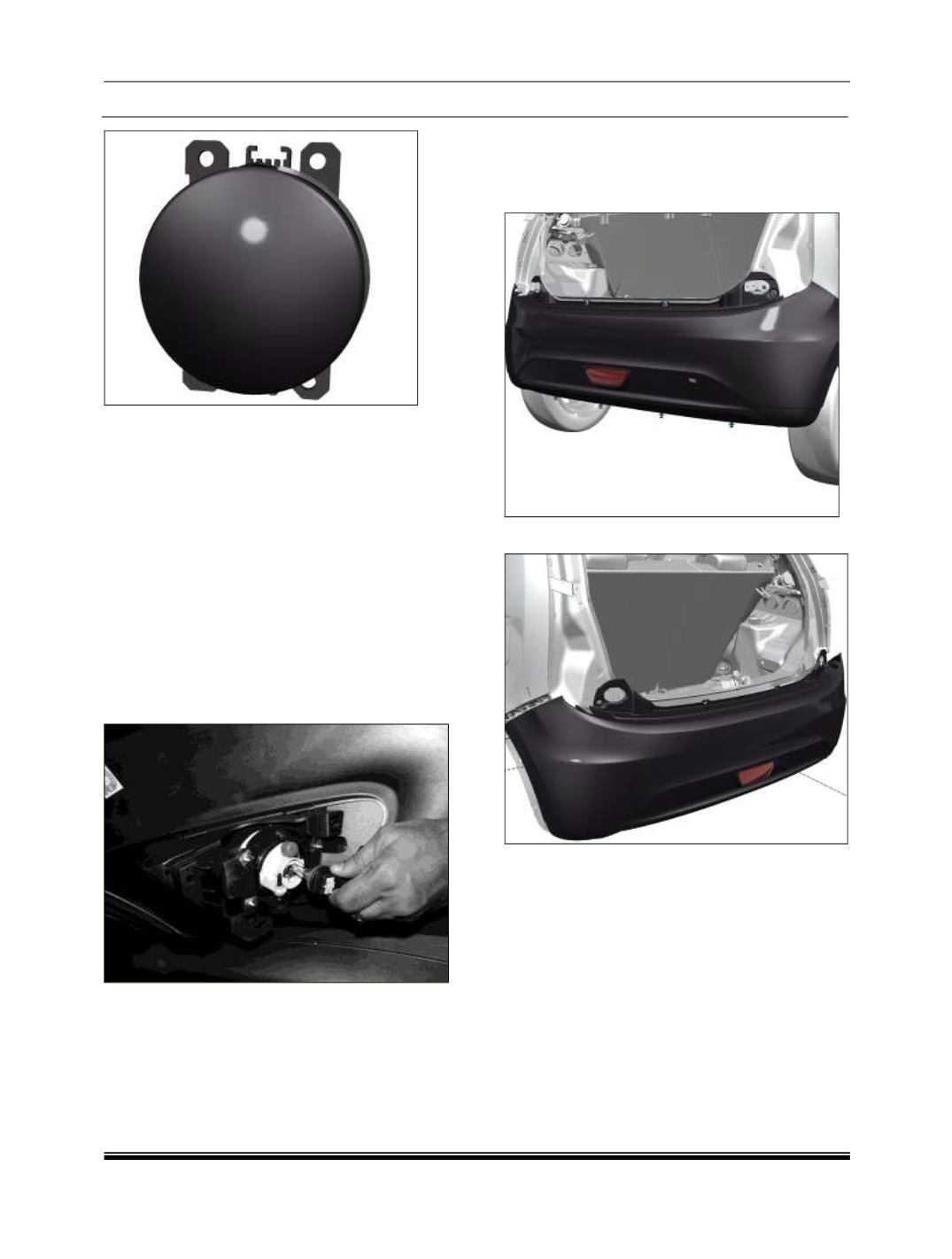

REFITMENT:
1. Fit the fog lamp on bracket.
2. Fit the assembly in the cut out on the bumper.
3. Tighten the 4 mounting screws of fog lamp
assembly.
Tightening torque for screws – 0.65kgfm.
4. Connect the electrical connection.
5. Fit the front bumper.
BULB REPLACEMENT PROCEDURE:
1. Disconnect the electrical connection.
2. Remove the bulb assembly by rotating in
anticlockwise direction.
3. Take out the bulb from holder& replace with
new one.
4. Fit the assembly by rotating in clockwise
direction.
5. Connect the electrical connection.
6. Fit the front bumper.
12.8.10 REAR FOG LAMP
1. Open the tail gate.
2. Remove snap fitted screws rear bumper.
3. Take out the rear bumper assembly.
