12.8.7 HIGH MOUNTED STOP LAMP

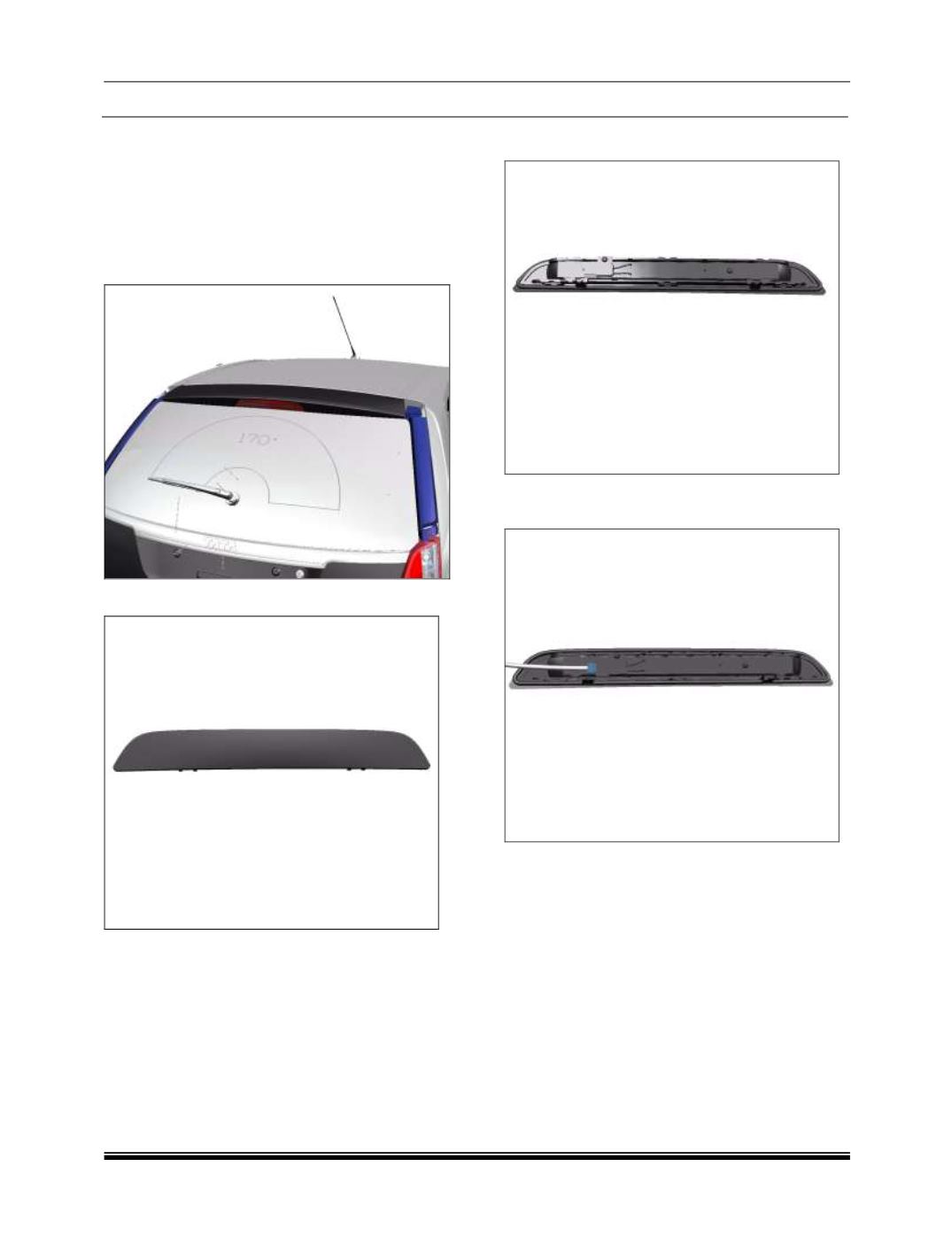

REMOVAL AND RIFITMENT OF HIGH

MOUNTED STOP LAMP

REMOVAL

1. Open the tail gate.

2. Remove the spoiler after removing the nut.

3. Remove the high mounted stop lamp cover.

4. Press the clip on the high mounted stop lamp

5. Disconnect the electrical connection and

remove the lamp.

6. Remove the bulb if required, bulb type 5nos.

REFITMENT

1. Reconnect the stop lamp connector.

2. Align & snap refit two fasteners of high

mounted stop lamp.

3. Refit the spoiler.
