930 / 1236
ELECTRICAL
152
5. LOCKING AND SCEURITY:
A.CENTRAL DOOR LOCKING:

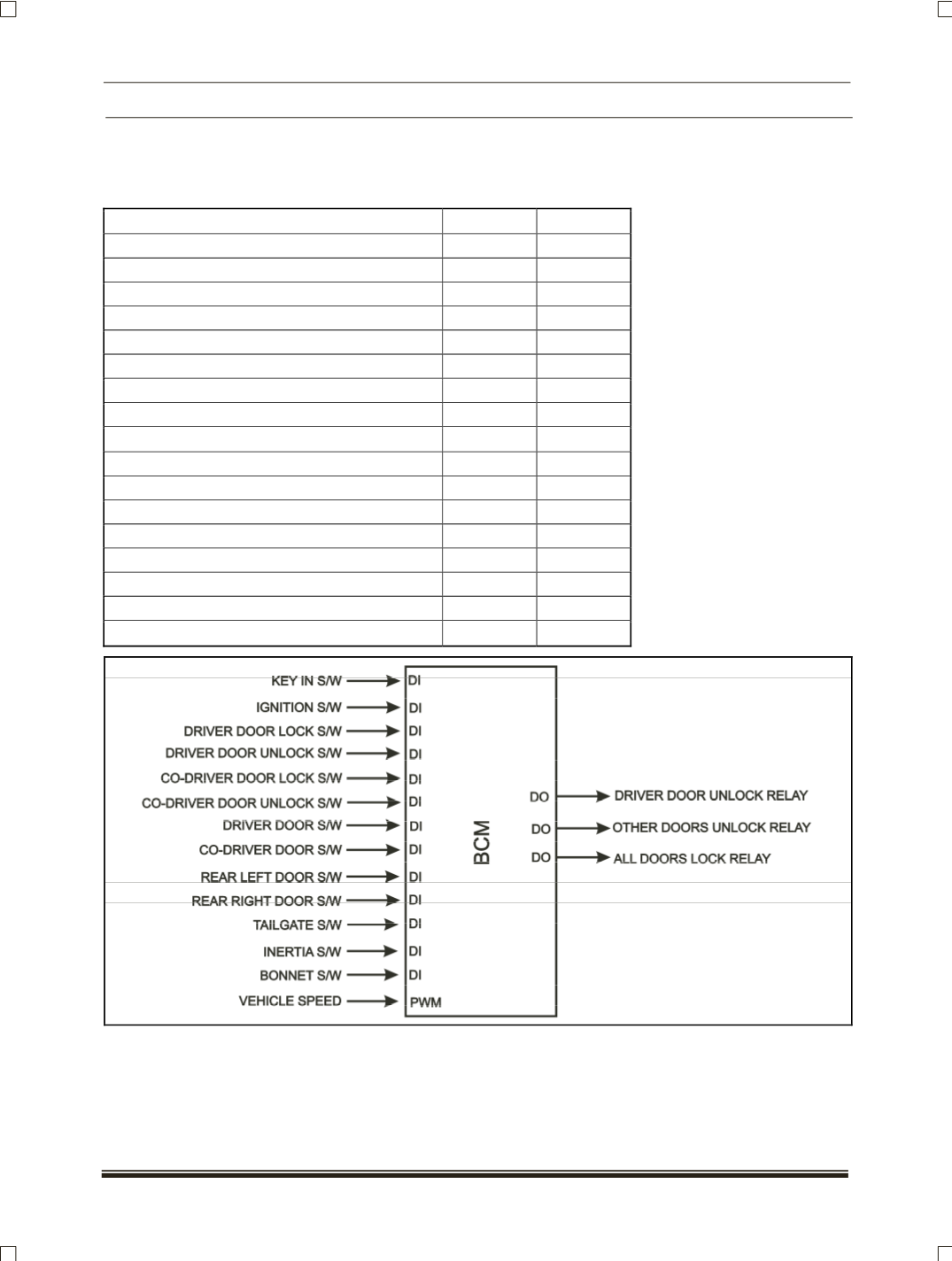

INPUTS/OUTPUTS DIAGRAM:
SIGNAL
LEVEL
TYPE
Key In S/W
High
Input
Ignition S/W
High
Input
Inertia S/W
High
Input
Driver Door Lock S/W
Low
Input
Driver Door Unlock S/W
Low
Input
Co-Driver Door Lock S/W
Low
Input
Co-Driver Door Unlock S/W
Low
Input
Driver Door S/W
Low
Input
Co-Driver Door S/W
Low
Input
Rear Right Door S/W
Low
Input
Rear Left Door S/W
Low
Input
Tailgate S/W
Low
Input
Bonnet S/W
Low
Input
(Vehicle Speed) Odometer Signal
PWM
Input
Driver Door Unlock Relay
Low
Output
Others Door Unlock Relay
Low
Output
All Doors Lock Relay
Low
Output
