STEERING

29

STEERING

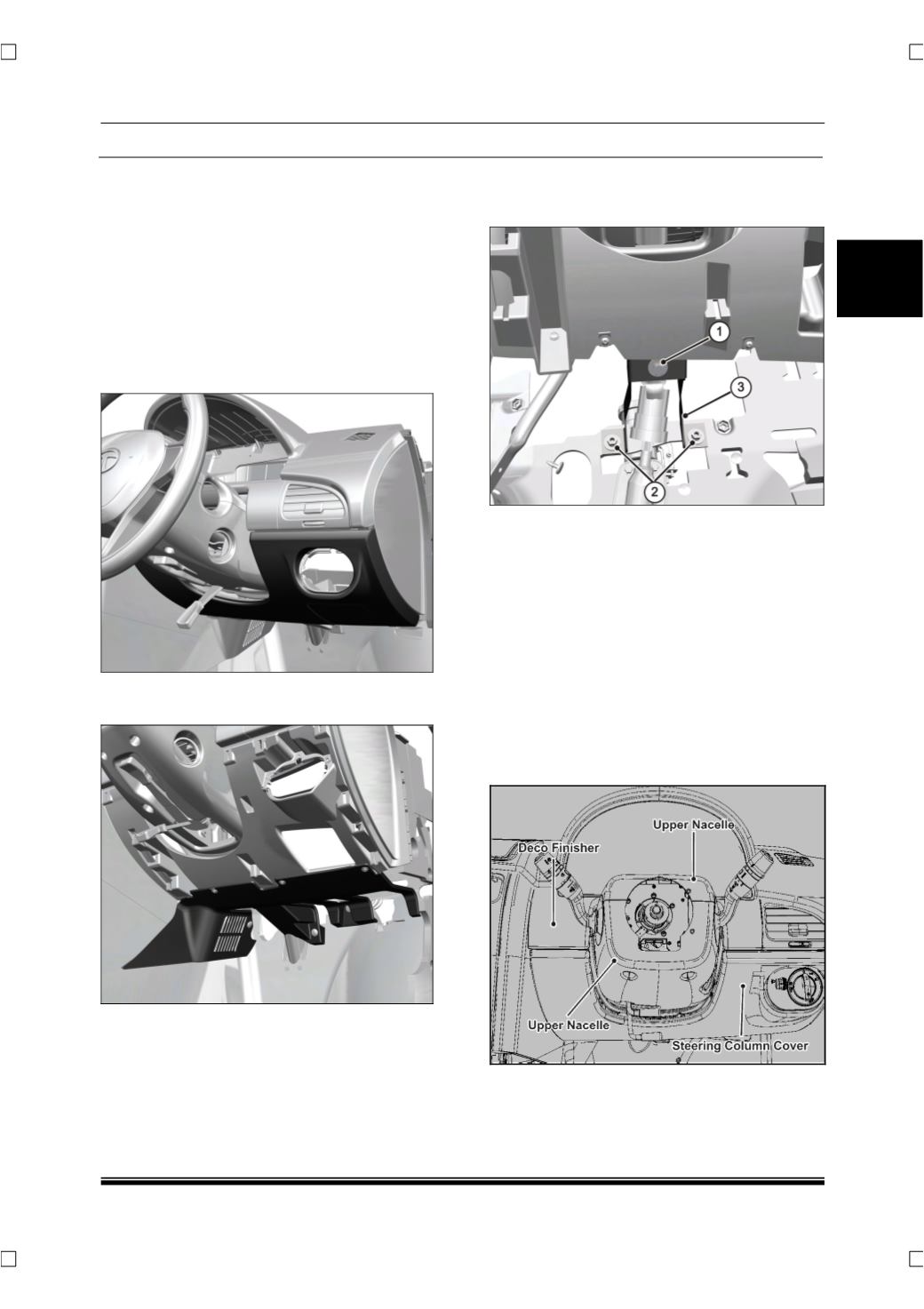

Removal Procedure of steering column has

been defined in four processes:

A. Steering Column Support Bracket

B. Top Column (Upper Column)

C. Intermediate Shaft (Bottom Column)

D. Bottom Flange Coupling (Bottom UJ)

A. STEERING COLUMN SUPPORT BRACKET

REMOVAL

1. Pry out the lower cover of steering column.

2. Remove hush panel from driver end by remov-

ing mounting screws.

3. Loosen and remove steering column support

(3)

mounting bolt

(1)

and nut

(2) (2 Nos.)

and take

out the steering column support

(3).

FITMENT

For fitment follow reverse procedure of removal.

B. TOP COLUMN (UPPER COLUMN)

REMOVAL

1. Remove Steering wheel.

(For procedure refer

steering wheel removal procedure in this sec-

tion)

2. Remove master light switch from the upper RH

cover.

(For procedure refer Electrical section.)

3. Take out the upper nacelle, lower nacelle, deco

finisher and lower cover of steering column.

(For

procedure refer Body section.)

4. Remove the Combi Switch and ignition switch.

(For procedure refer Electrical section.)
