ANTI LOCK BRAKING SYSTEM (ABS)
21
ANTI-LOCK
BRAKING
SYSTEM (ABS)

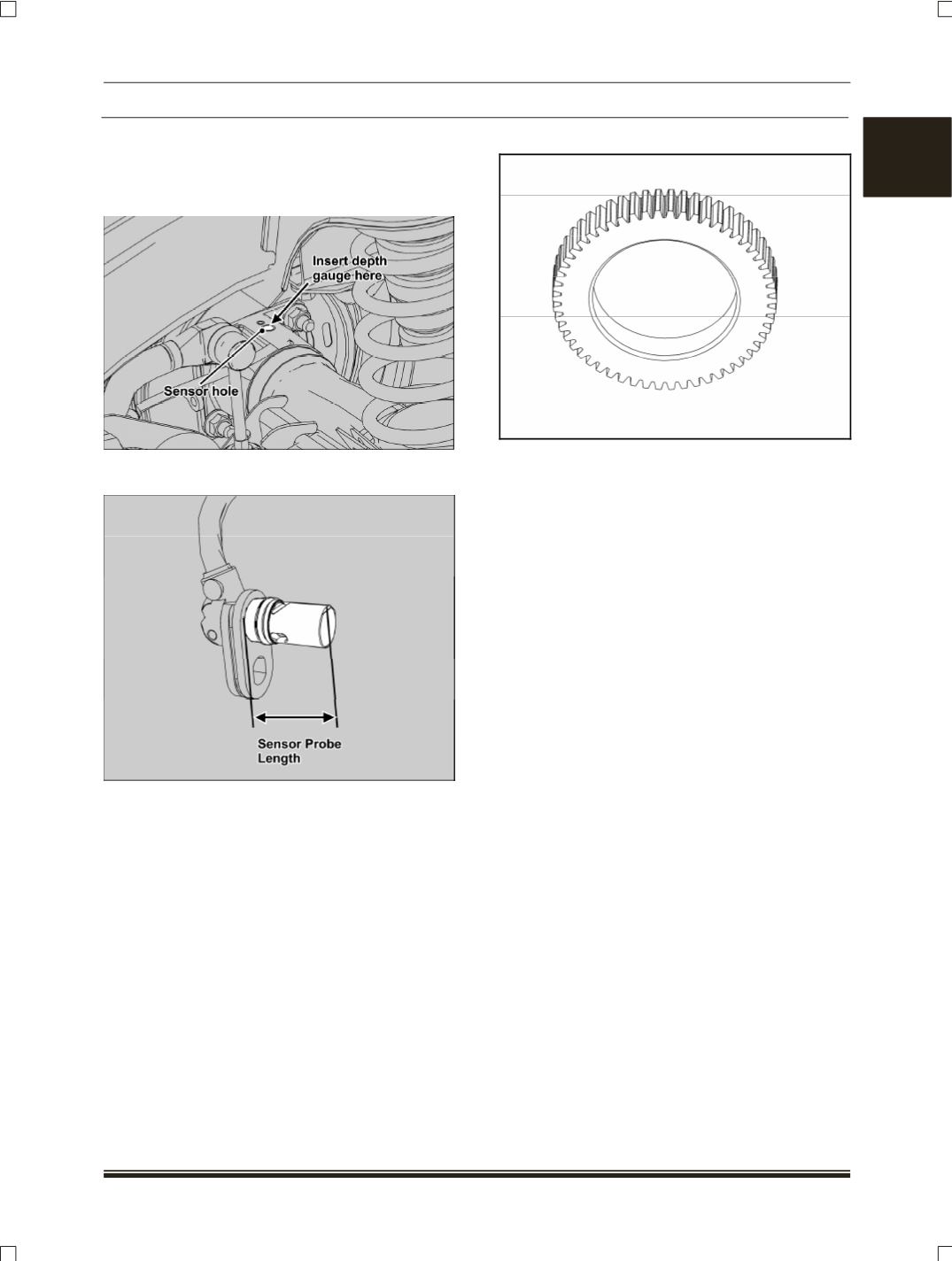

2. Check the air gap as follows:
a. Insert a depth gauge and measure the distance
between the toner ring top surface and rear axle
sensor mounting surface. Let it be ‘A’.
b. Measure the length of the sensor probe. Let it be
‘B’.
c. Air Gap = A – B
NOTE
Air gap should be between 0.6mm to 1.1mm.
3. Route the cable properly.
4. Connect the wiring harness connector to wheel
speed sensor cable.
5. Make sure that the sensor cable connector is fully
seated and locked into vehicle wiring harness
connector.
6.
Insert the sensor into the sensor mounting hole
and tighten the bolt to the specified torque
(1.0
Kg-m).
7.
Clear all fault codes and road test the vehicle to
ensure proper operation of the brake system.
E. REAR TONER RING
1. Position the vehicle in a 2 poster lift and raise it.
2. Remove the rear axle wheel end axle shaft.
(For
procedure refer Rear Axle section).
3. Closely inspect the toner ring and remove the
dust, mud or iron particles in between the teeth.
4. Check for any damaged teeth. (Rear toner ring
got 54 teeth).
5. Replace toner ring if teeth are missing or
damaged.
Refer rear axle section and use
recommended tool to remove the toner ring.
