SAFARI STORME MY14

ANTI LOCK BRAKING SYSTEM (ABS)

ANTI-LOCK

BRAKING

SYSTEM (ABS)

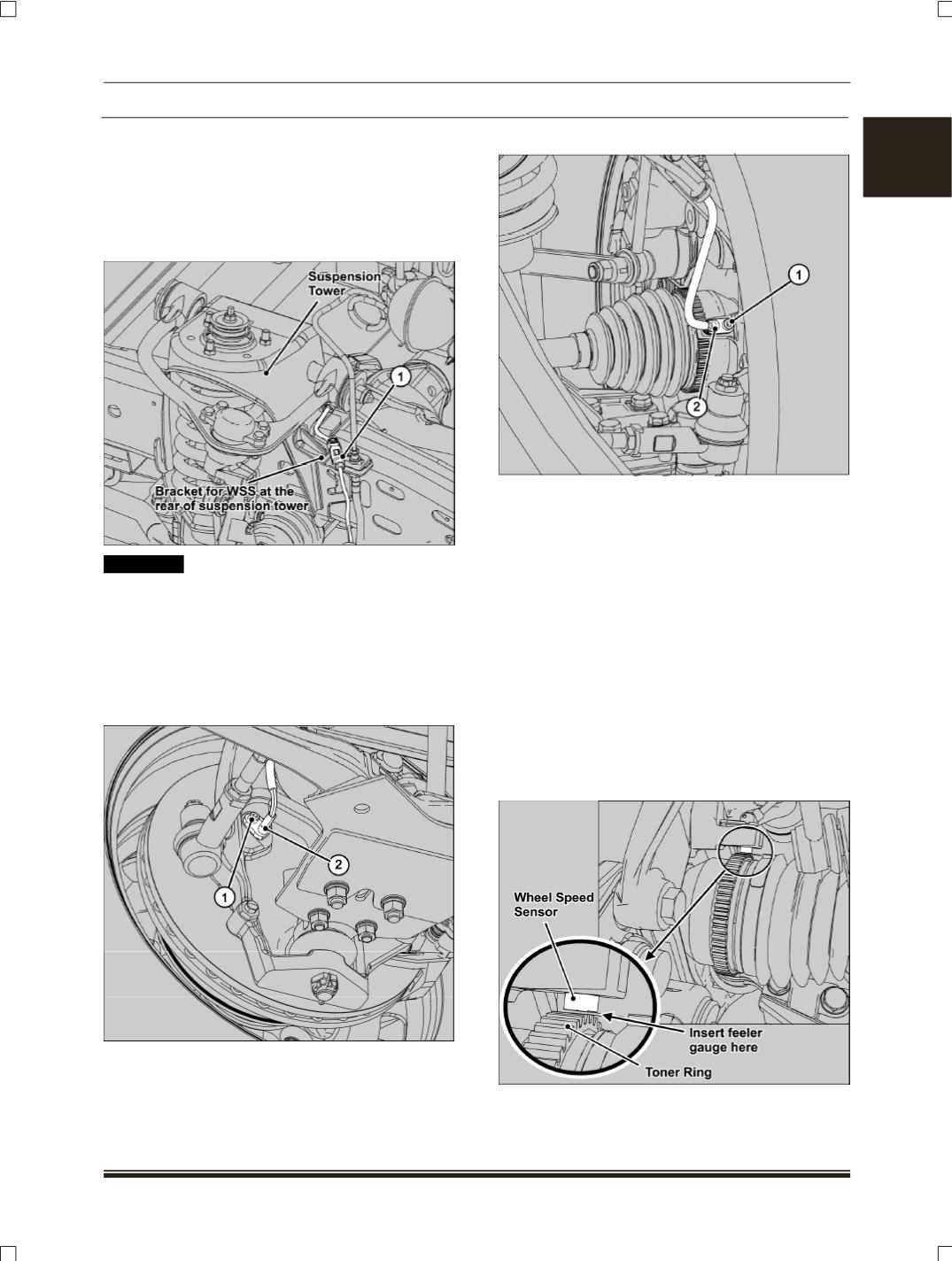

B. FRONT WHEEL SPEED SENSOR

REMOVAL

1. Position the vehicle on two post lift.

2. Disconnect electrical connector

(1)

of wheel

speed sensor located on the bracket at the rear of

the front suspension tower.

! CAUTION

Take proper precautions while disconnecting the

wheel speed sensor from vehicle wiring harness,

otherwise it might damage the pins of the connecter.

3. Remove sensor mounting screw

(1)

and remove

the wheel speed sensor

(2)

from the steering

knuckle.

FOR 4X2 VEHICLES

FOR 4X4 VEHICLES

INSTALLATION

1. Clean speed sensor and its mounting surface.

2. Route the cable properly.

3. Connect the wiring harness connector to wheel

speed sensor cable.

4. Make sure that the sensor cable connector is fully

seated and locked into vehicle wiring harness

connector.

Insert the sensor into the sensor mounting hole

and tighten the bolt to the specified torque

(1.0

Kg-m).

6. Check the air gap between the face of the wheel

speed sensor and the top surface of the toner

wheel using a feeler gauge.
