ENGINE
37

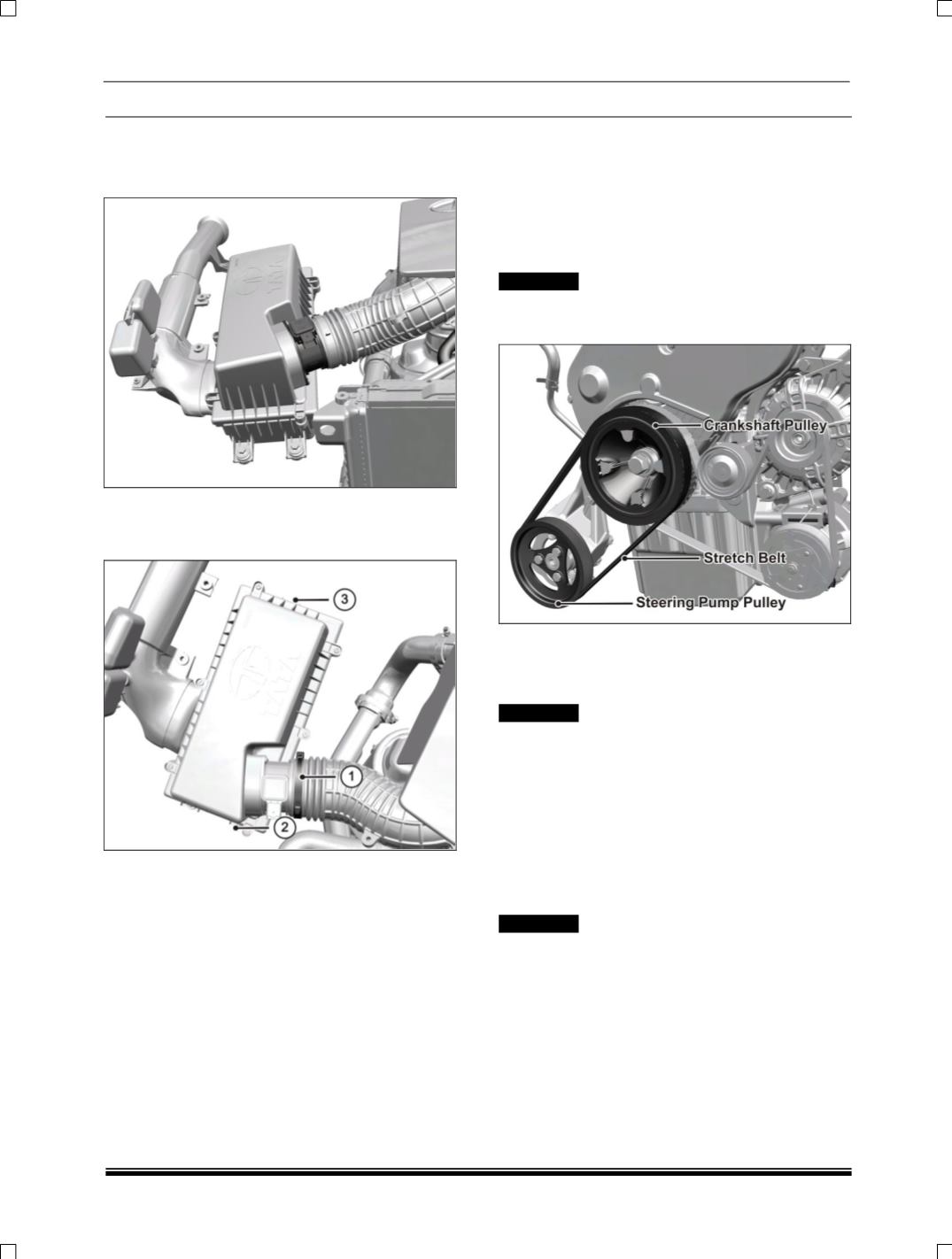

B. AIR FILTER ASSEMBLY REMOVAL
1. Disconnect the electrical connections of SIMAF
sensor.
2. Disconnect the clamp
(1).
Loosen and remove
the Air filter mounting bolts
(2 and 3)
and re-
move the Air filter.
3. Take out the air filter.
FITMENT
For fitment follow the reverse order of removal.
C. POWER STEERING PUMP BELT
(STRETCH BELT)
The stretch belt used in this vehicle is multi ribbed
belt. This belt is pre-tensioned over power steering
pump and crank shaft pulleys and therefore do not
require the tensioner as this is capable of efficient
power transmission.
! CAUTION
The stretch belt is not interchangeable and should
not be interchanged with normal V-ribbed belts
.
STRETCH BELT REMOVAL
Remove the stretch belt from vehicle using stretch
belt removal tool 2702 5890 0623.
! CAUTION
Stretch belt should not be reused. Once removed it
should be replaced by new one.
FITMENT
1. Install the new stretch belt on power steering
pump pulley.
2. Align the belt with the crank shaft pulley and hold
the belt with the mounting tool (Part no. 2702
5890 0622) and rotate the crank shaft pulley
clockwise.
! CAUTION
Ensure that the tool is correctly located during the
belt fitment process.Make sure that while rotating the
crank shaft pulley the belt should not slip away from
power steering pump pulley.
