FRONT AXLE (4X4)
16

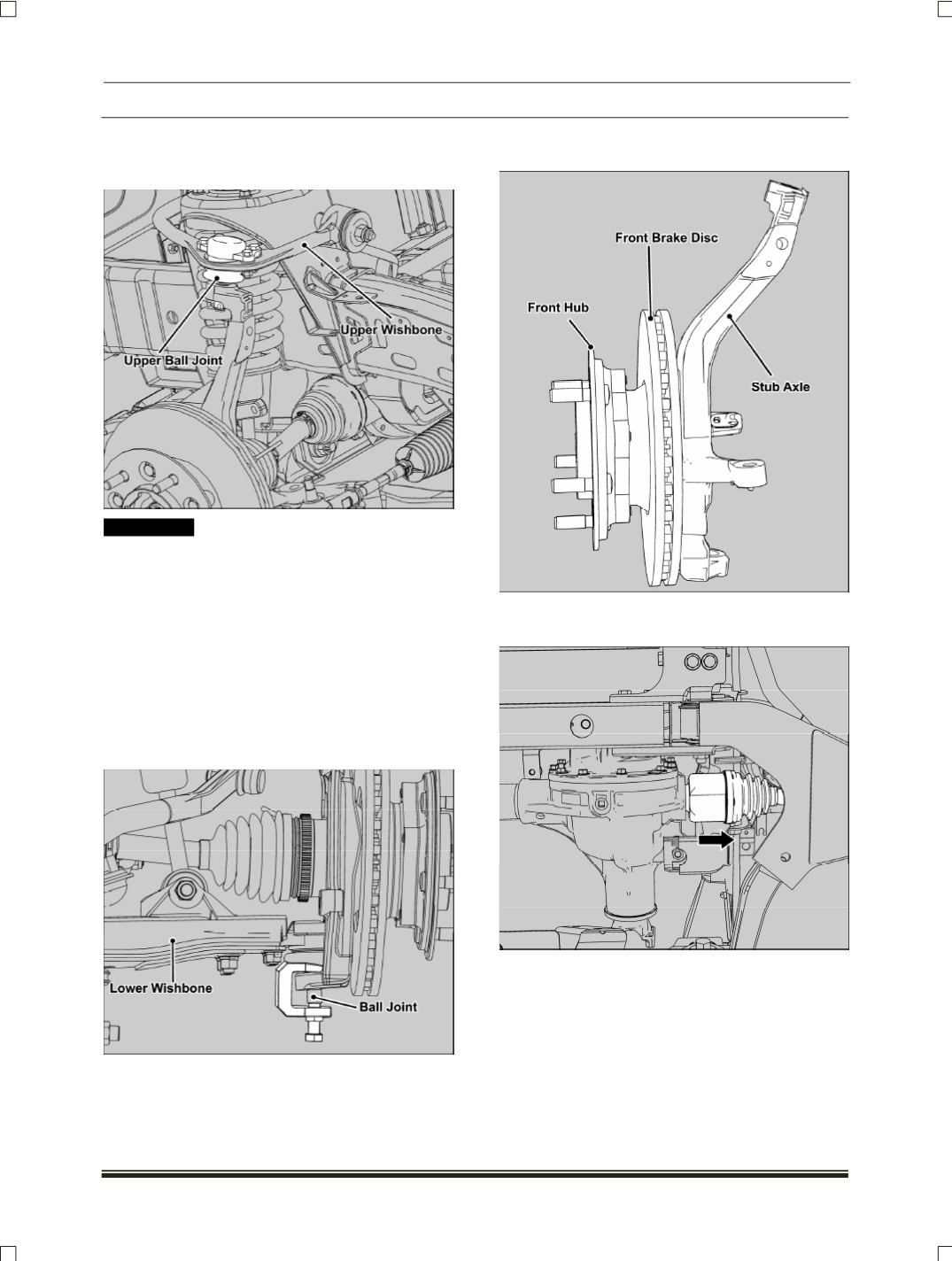

12.Disconnect upper wishbone ball joint
. (For proce-
dure refer suspension upper wishbone ball joint
removal section)
!! WARNING
When the knuckle is disconnected from the upper
wishbone the knuckle may fall outwards towards
the operator. Hence supporting it is very essen-
tial. If proper care is not taken it may cause injury.
The upper wishbone might spring upwards when
released from knuckle, hence special care should
be taken.
13.Support the stub axle assembly from below. Dis-
connect lower wishbone ball joint using puller
(Part No. 287058904601)
.
(For procedure refer
Suspension section.)
14.Pull out the stub axle to free it from driveshaft.
Carefully support the driveshaft.
15.Pull out the drive shaft from the carrier section
follow the same procedure at other end also.
