SAFARI STORME MY14

FRONT AXLE (4X4)

4.5.2.2.3 ON VEHICLE REPAIRS

A. FRONT AXLE ASSEMBLY

REMOVAL

1. Remove the stone guard.

(For procedure refer

stone guard removal in Body section.)

2. Remove front wheels.

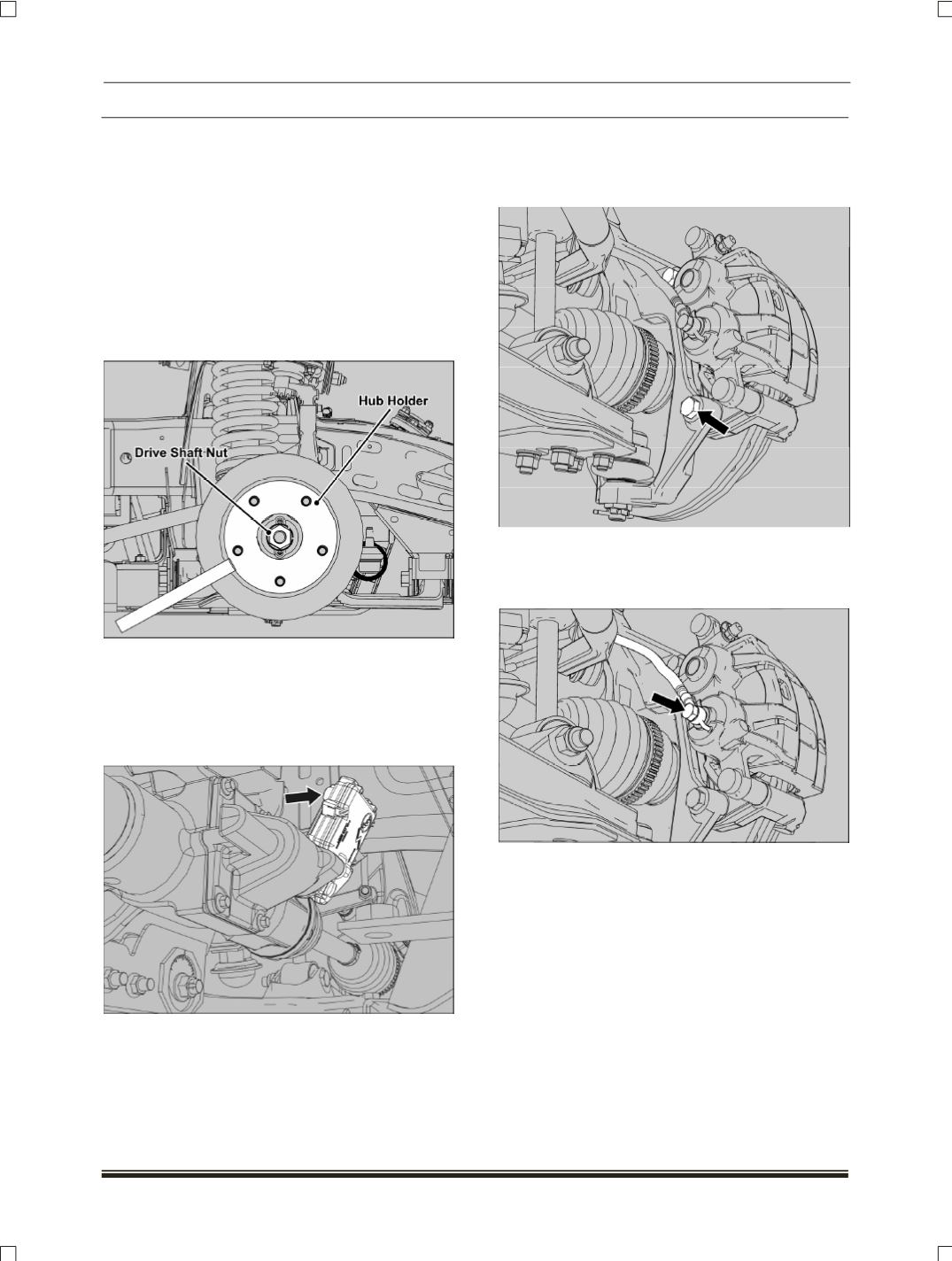

3. Remove split pin and hold the hub assembly with

the hub holder

(Part No. 287058903316)

. Secure

the hub holder tool on the hub assembly by lock-

ing with nuts and loosen drive shaft nut.

4. Lift the vehicle on two post lift.

5. Disconnect the propeller shaft from the front axle

assembly.

6. Disconnect the electrical connection from front

axle disconnect

(FAD).

7. Loosen and remove mounting bolts of front brake

caliper assembly with carrier and remove the

brake caliper assembly. (

For procedure refer

Brakes section

NOTE

Don’t remove hydraulic brake line connected to

Brake caliper assembly.
