GEAR BOX
17
SHIFTER SHAFTS

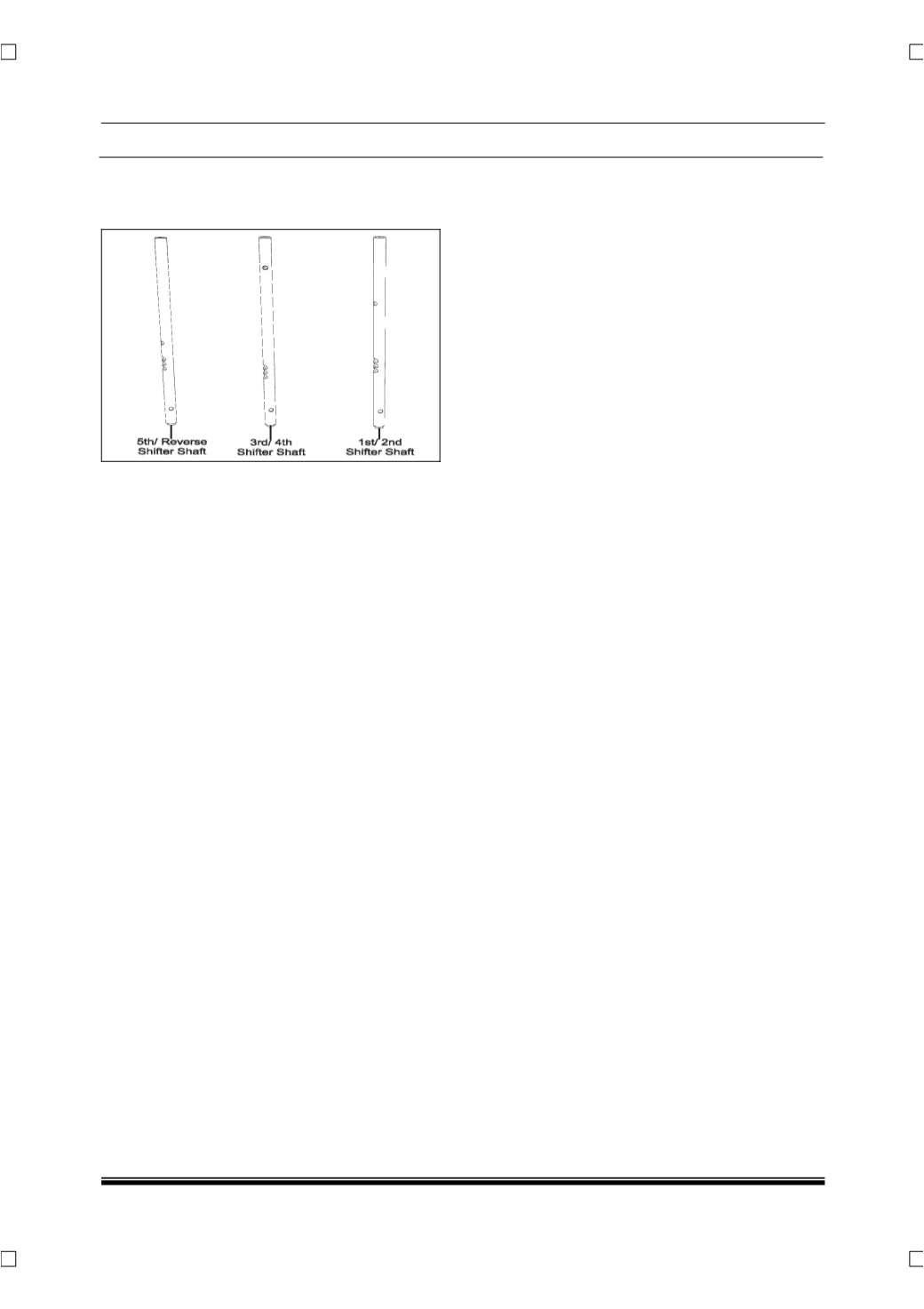

Shifter shafts can be identified by the distances be-
tween two holes on the shafts.
B. PRECAUTIONS
•
Ensure that the oil is completely drained before
commencing the dismantling procedure.
•
Ensure that the engaging gears are properly as-
sembled on shafts over respective circlip.
•
Ensure that oil seals are free from dust particles
and smear grease to dust lip.
•
Use special tools for removal and fitment of gear
box bearings.
•
Ensure proper fitment of shifter sleeve assembly
on synchro-cone and respective shaft.
•
Ensure no damage done to reverse light switch
during handling.
•
Wherever thread lock gum is used for fasteners,
pre-coated fasteners can be used alternatively.
Do not reuse pre-coated fasteners.
