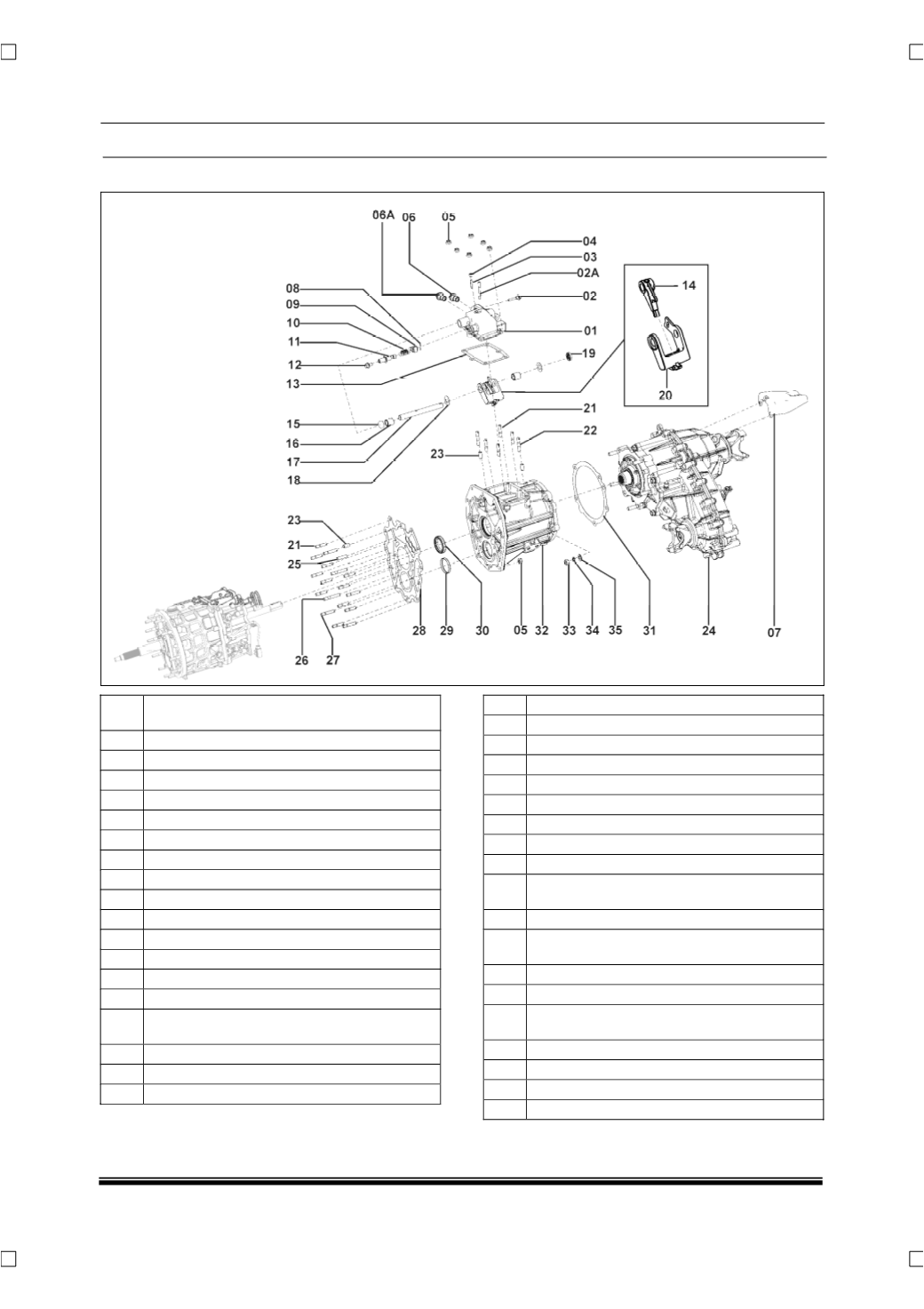

GEAR BOX
20
ADAPTOR ASSEMBLY
(4X4)
SR
NO
DESRIPTION
01 Top cover
02 Pin cross gate limiter
02A Stud
03 Spiral pin
(6X28)
04 Plug mc 10X1
05 Hexagonal flange nut AM8
06 Captive detent
(Selection)
06A Captive detent
(Shifter)
07 Bracket extension box support
08 Pin
(Assembly of inhibitor)
09 Reverse blocker
10 Reverse blocker spring
(Shifter assembly)
11 Reverse blocker shaft
12 Hexagonal flange screw M8X14
13
Gasket
(Top cover and rear cover / adap-
tor housing)
14 Selector finger
15 Core plug
(Assembly top cover)
16 Linear bearing
(Selector shifter shaft)
17 Selector shaft
(Shifter assembly)
18 Washer shim
19 Double lip oil seal
20 Swing blocker
21 Stud
22 Stud
23 Dowel sleeve
24 Transfer case ESOF
(LH drop)
with ECU
25 Bright washer 10.5
26
Stud
(Assembly gear box housing front &
rear)
27 Stud transportation bracket mounting
28
Gasket (
Between rear housing and adap-
tor housing)
29 Cap
(Adaptor)
30 Oil seal
(Main shaft)
31
Gasket - between adaptor housing and
transfer
32 Adaptor housing 4wheel drive
33 Hex nut M10
34 Spring washer B10
35 Bright washer 10.5
