BODY
48
REMOVAL

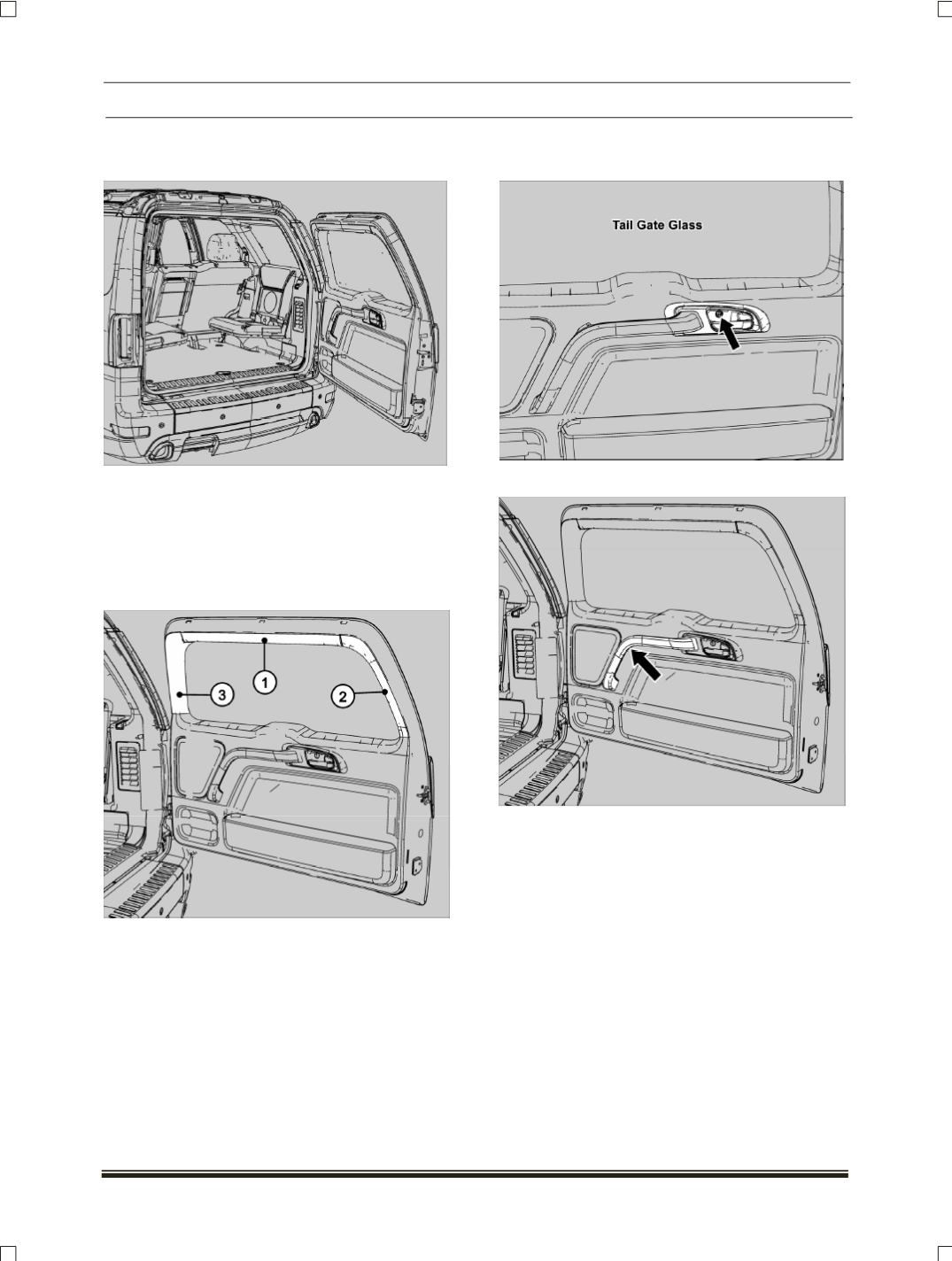

1. Open the tail gate.
2. Pull out tailgate upper trim (1) first and then
tailgate middle trim (2) and (3)
NOTE
While pulling tailgate trims, care should be taken
such that tree clips do not get damage. Refer
exploded view for location of tree clips.
3. Loosen and remove the mounting bolt of tail
gate inner latch handle.
4. Pull out the upper cover of tail gate grab handle
