1112 / 1236
BODY
52

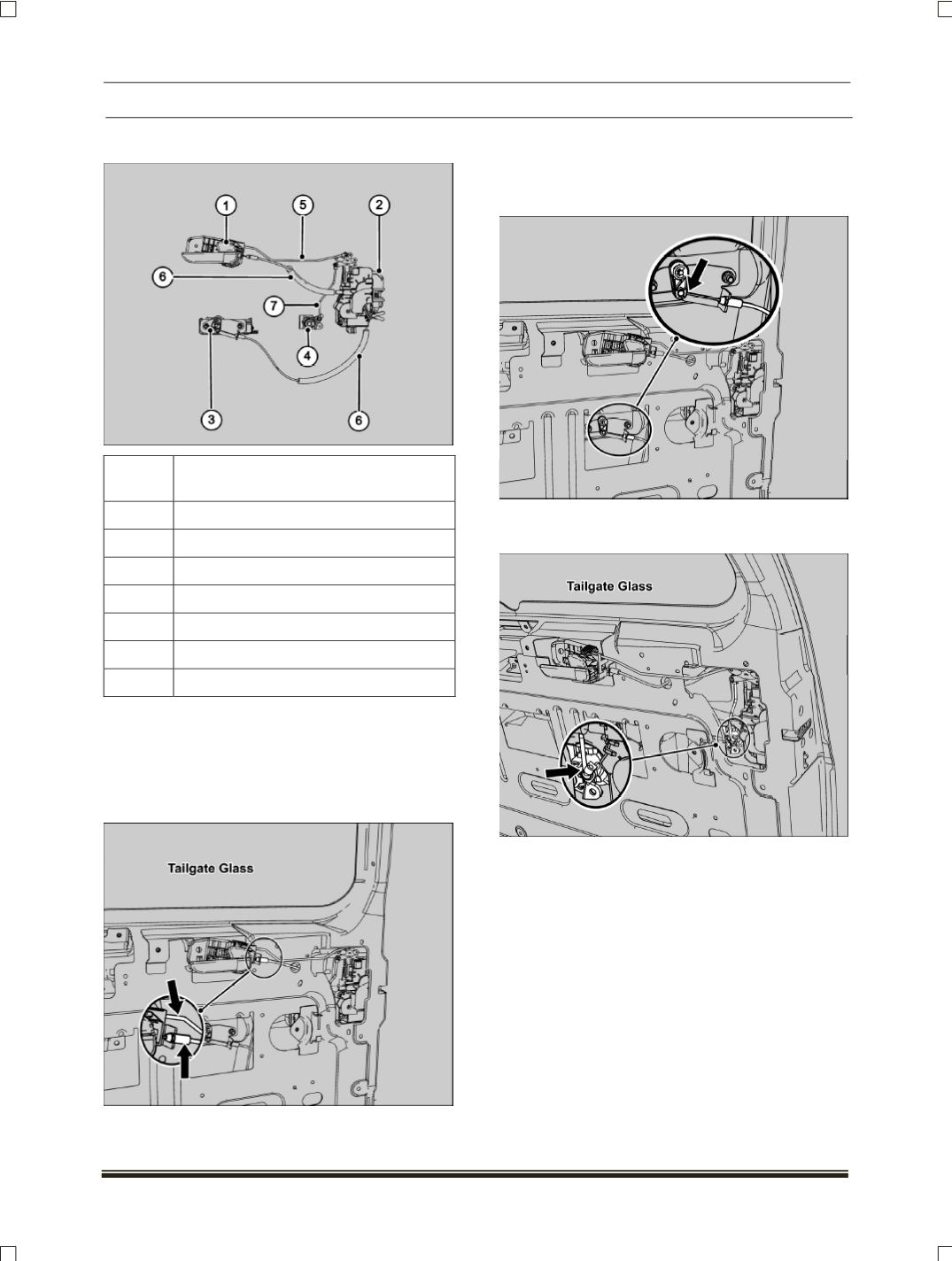

TAIL GATE LATCH
SR.
NO
DESCRIPTION
1
Tailgate latch inner handle
2
Tailgate latch
3
Tailgate outer handle
4
Tailgate lock barrel
5
Inside lock/unlock link
6
Inside release cable
7
Link between latch and lock barrel
REMOVAL
1. Remove the tail gate trim.
(For procedure refer
tail gate trim removal procedure in this section.)
2. Disconnect link between latch and inner door
handle from inner handle end
3. Remove inner handle
(for procedure refer inner
handle removal procedure in this section)
4. Disconnect cable between latch and outer door
handle.
5. Disconnect the link between latch and lock
barrel from lock barrel end.
