BODY
26

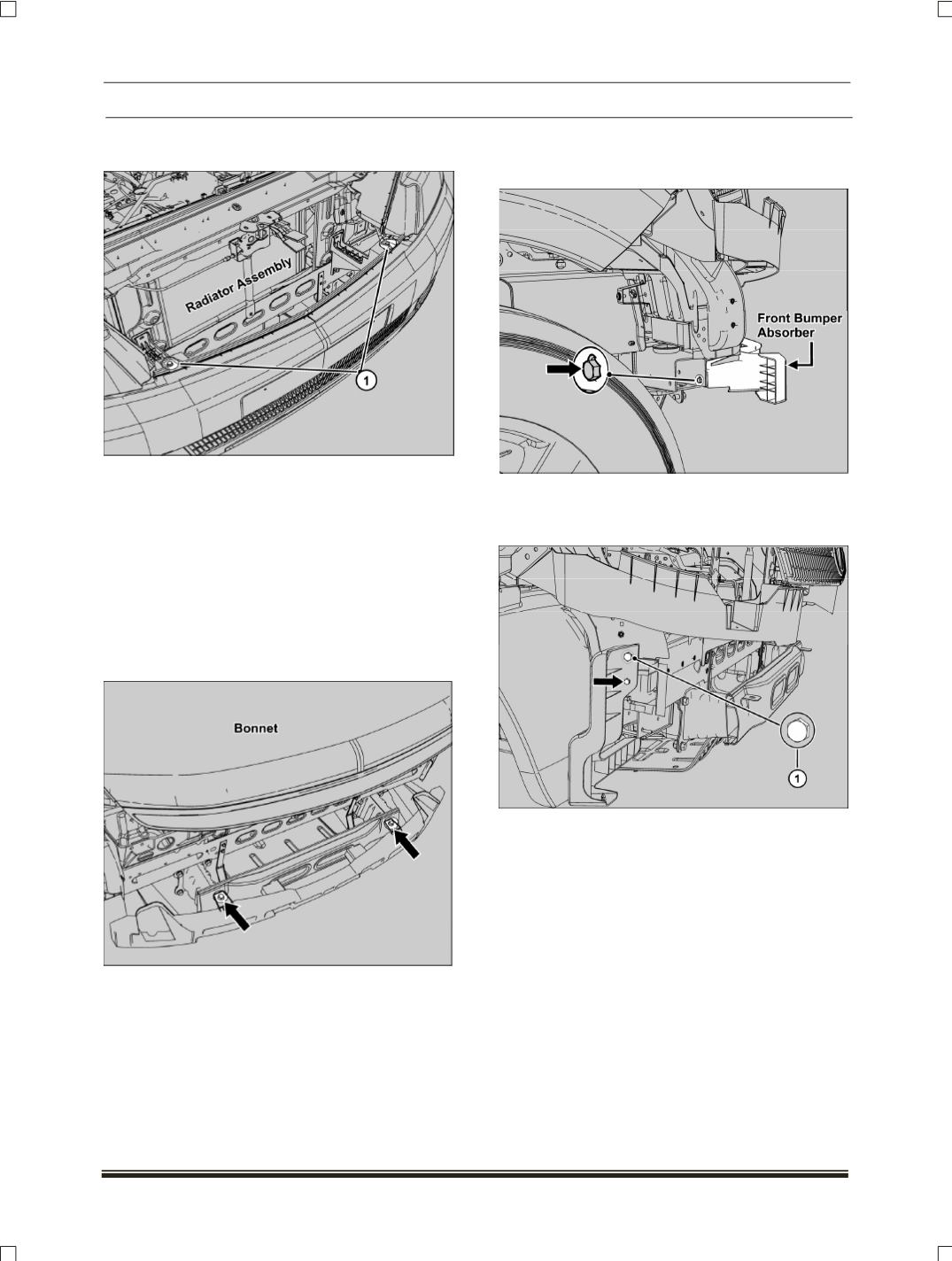

5. Loosen and remove two mounting bolts
(1)
from
top side of bumper.
6. Disconnect fog lamp connectors and remove
the bumper.
FITMENT
For fitment follow the reverse procedure of
removal
FRONT BUMPER ABSORBER
REMOVAL
1. Loosen and remove two mounting bolts from
front side.
2. Loosen and remove two mounting bolts which
are mounted on both sides of frame and take
out the front bumper absorber from vehicle
3. Remove the supporting bracket by removing
two bolts
(1).
Follow same procedure at other
end also.
FITMENT
For fitment follow the reverse procedure of
removal.
