SAFARI

ENGINE2.2LDICOR

CYLINDERBLOCK

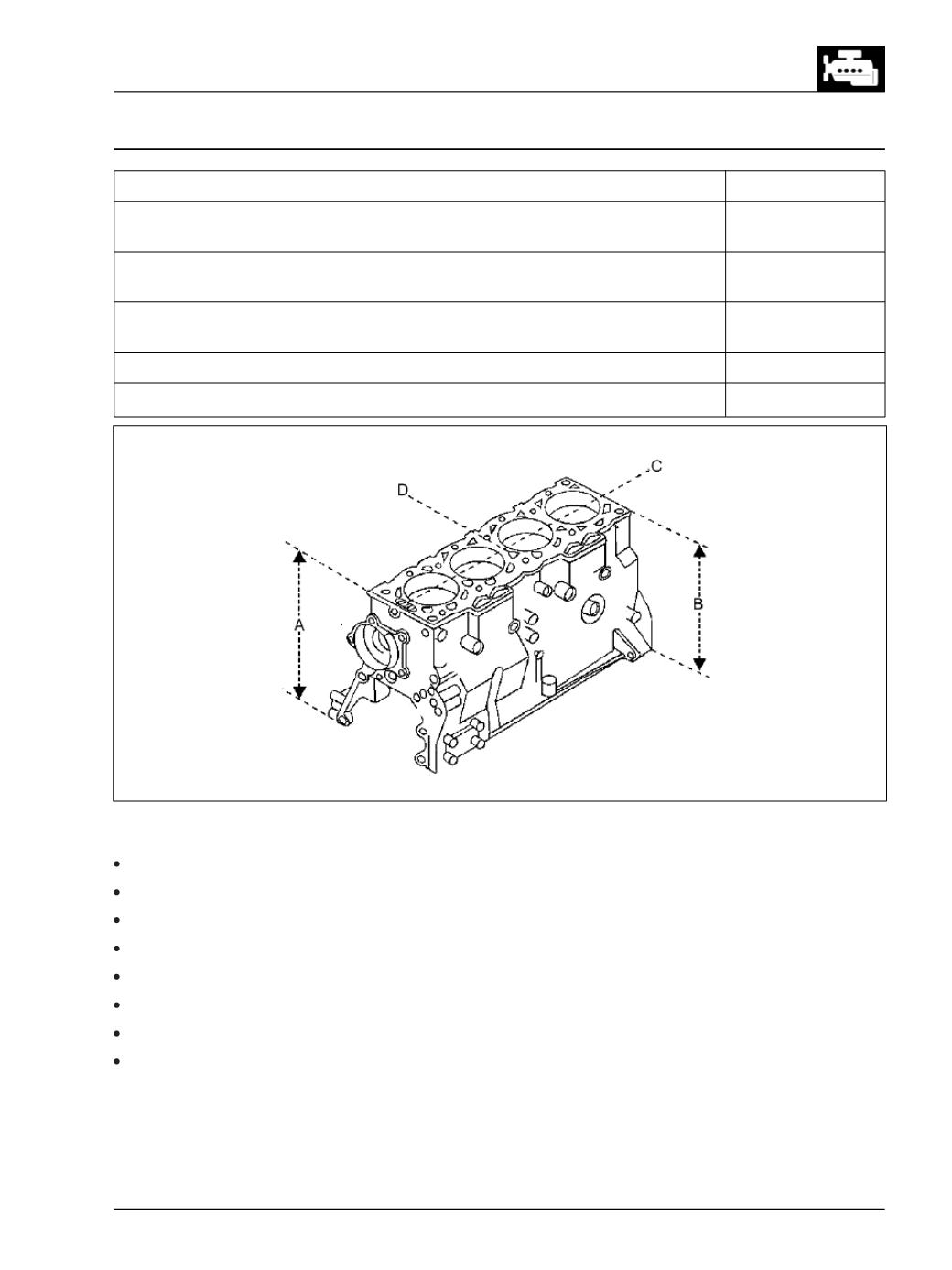

Height of crankcase(Dimensions A & B)

311 ± 0.1 mm

Maximum permissible unevenness of cylinder block Lenghtwise 'c'

0.03 mm

mating surface with cylinder head 150 x 150 Crosswise 'D'

0.015 mm

Maximum permissible out off parallelism between cylinder block top

0.03 mm

& bottom machined surface

Maximum permissible shift in perpandicularity of cylinder bore from

0.04 mm

crank shaft axis when checked at 200mm from crank shaft centre line.

Maximum permissible circularity

0.01 mm

Ovality of cylinder bore (cylindricity)

0.01 mm

AssemblyClearances

Connecting rod clearance (Big End)

0.03TO0.077mm

Connecting rod Axial play (Big End)

0.1mmTO 0.35mm

Connecting rod small end bush clearance

0.04mmTO 0.04mm

Camshaft BearingClearance

0.0mmTO 0.06mm

Camshaft bearing axial play

0.18mmTO 0.5mm

Valve StemClearance (Inlet)

0.0mmTO 0046mm

Valve stemClearance (Edhaust)

0.05mmTO 0.066mm

Piston Clearance on skirt (Bore to piston thrust side)

0.0mmTO 0.04mm
