4 DLT ENGINE

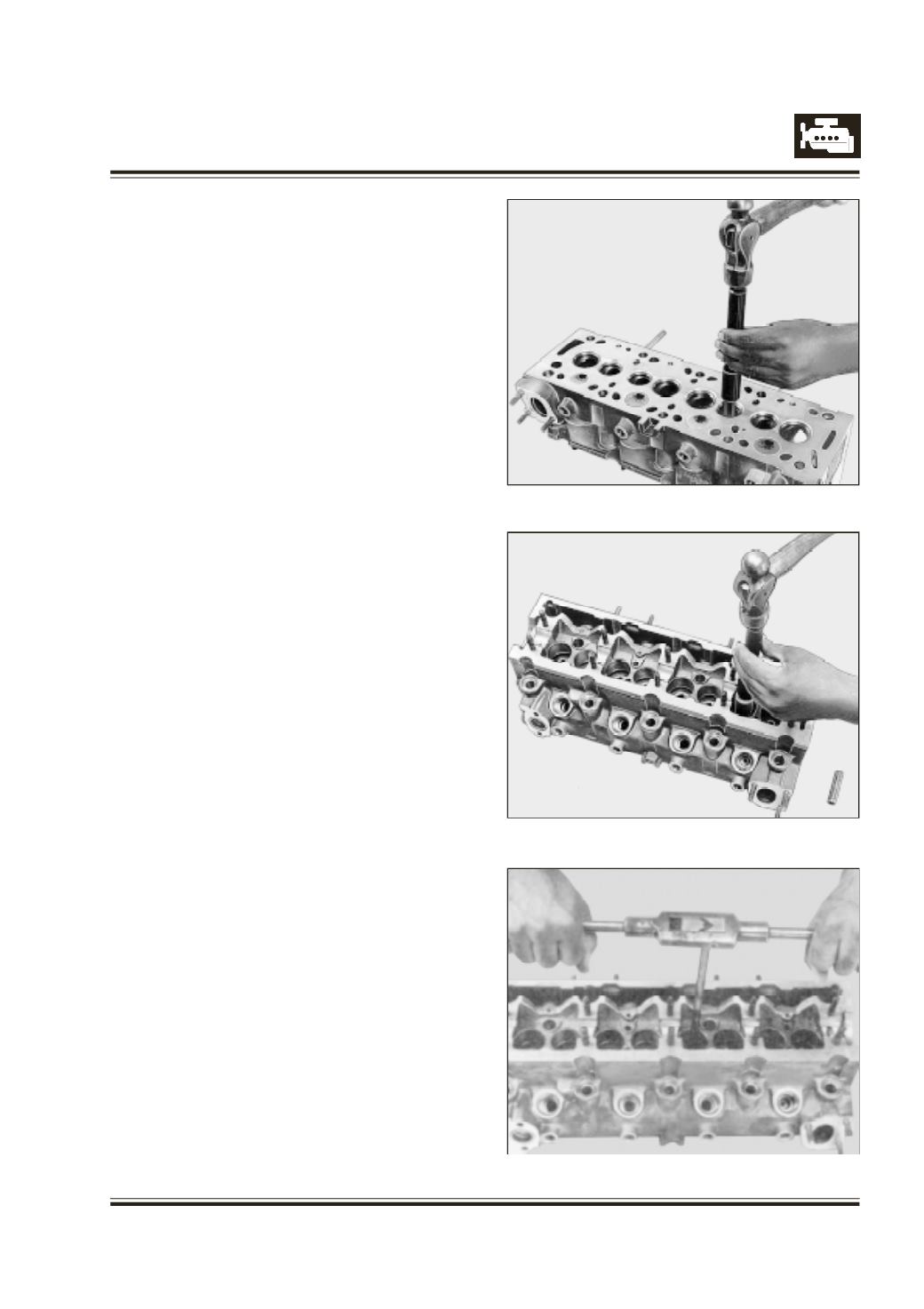

VALVE GUIDES
I
n case of valve stem sticking in valve guide bore or
excessive clearance between them, remove valve
guide from cylinder head using drift 2654 5890 05 04.
- Refer Figure 84
R
emove valve guide seal. Check condition.
C
heck valve guide bore diameter in cylinder head and
if necessary, ream valve guide bore in cylinder head
to next over size.
I
nstall matching size valve guide in cylinder head using
drift, 2654 5890 05 04 and spacer, 2654 5890 05 05.
Refer Figure 85
R
eam valve guide inside diameter to specified size.
Refer Figure 86
F
it valve guide oil seals.
Fig. 84
Fig. 85
Fig. 86
