AIR CONDITIONING

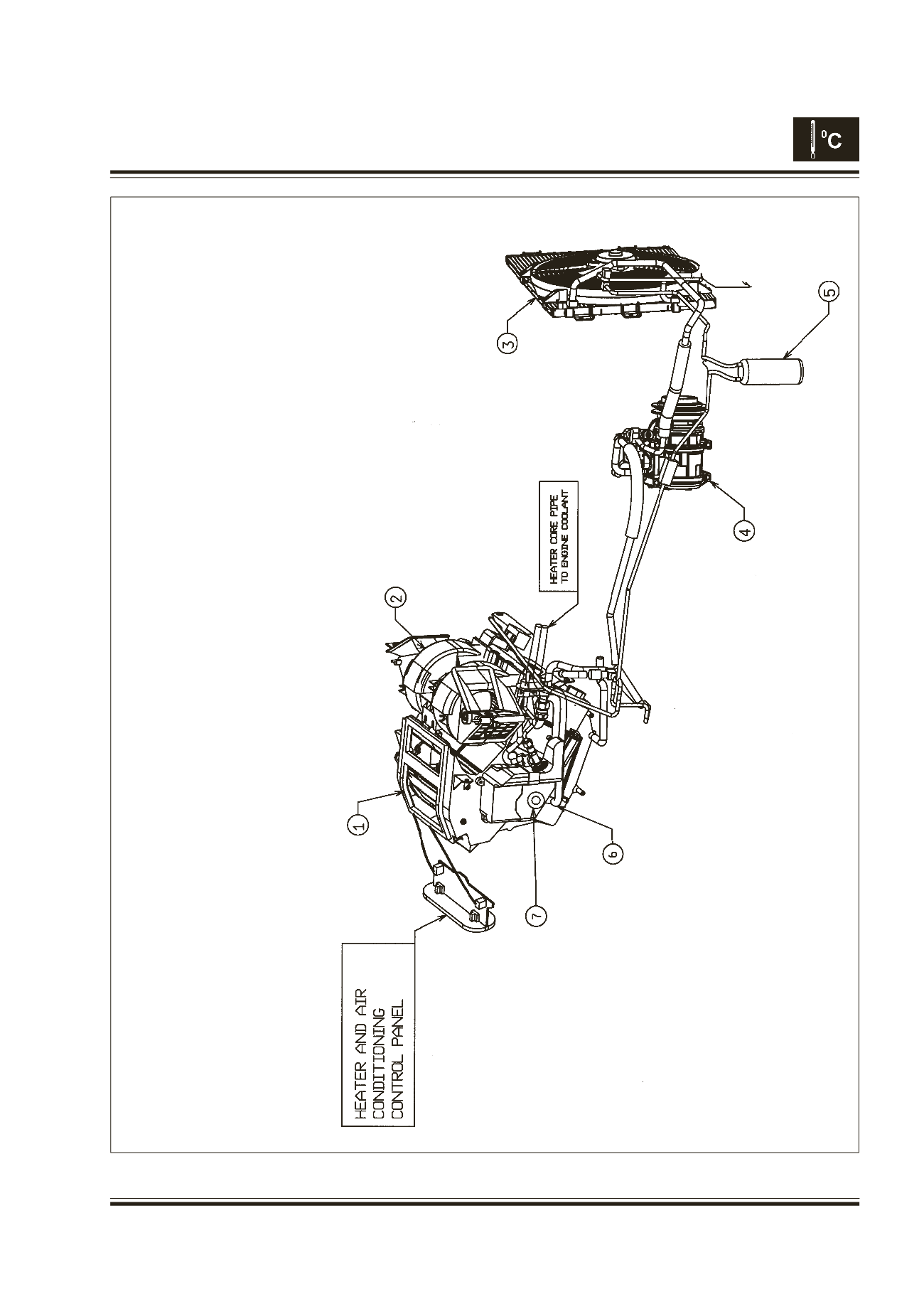

LAYOUT FOR SAFARI A/C (SINGLE)

1 Cooling and heater unit

2 Blower unit

3 Condenser Assy

4 Comp. Assy. W/Mag. Clutch

5 Tank receiver

6 Heater core

7 Water valve assy.

Fig. 2
