C. ASSEMBLY OF FRONT HUB COMPLETE :
I. ASSEMBLY
a. Before proceeding to assembly of hub, ensure
that all parts are cleaned properly; especially
the bearings.
Smear little grease on the OD of the outer race
of inner bearing. Press the outer race into the
hub using drift 2654 5890 35 07 with handle
2640 5890 35 11. Fig. 6
b. Pack the roller cage of inner bearing with grease
and keep it in place in the hub.
c. Smear little grease on the OD of the oil seal
(always fit a new oil seal, if removed earlier)
and press the seal into the hub using drift 2654
5890 35 04 with handle 2640 5890 35 11.
Fig. 7
d. Smear little grease on the OD of the outer
race of outer bearing and press the outer race
into the hub using drift 2654 5890 35 07 with
handle 2640 5890 35 11. Fig.8
e. Pack the space between two taper roller
bearings of the hub with wheel bearing grease.
Fig. 6
Fig. 7

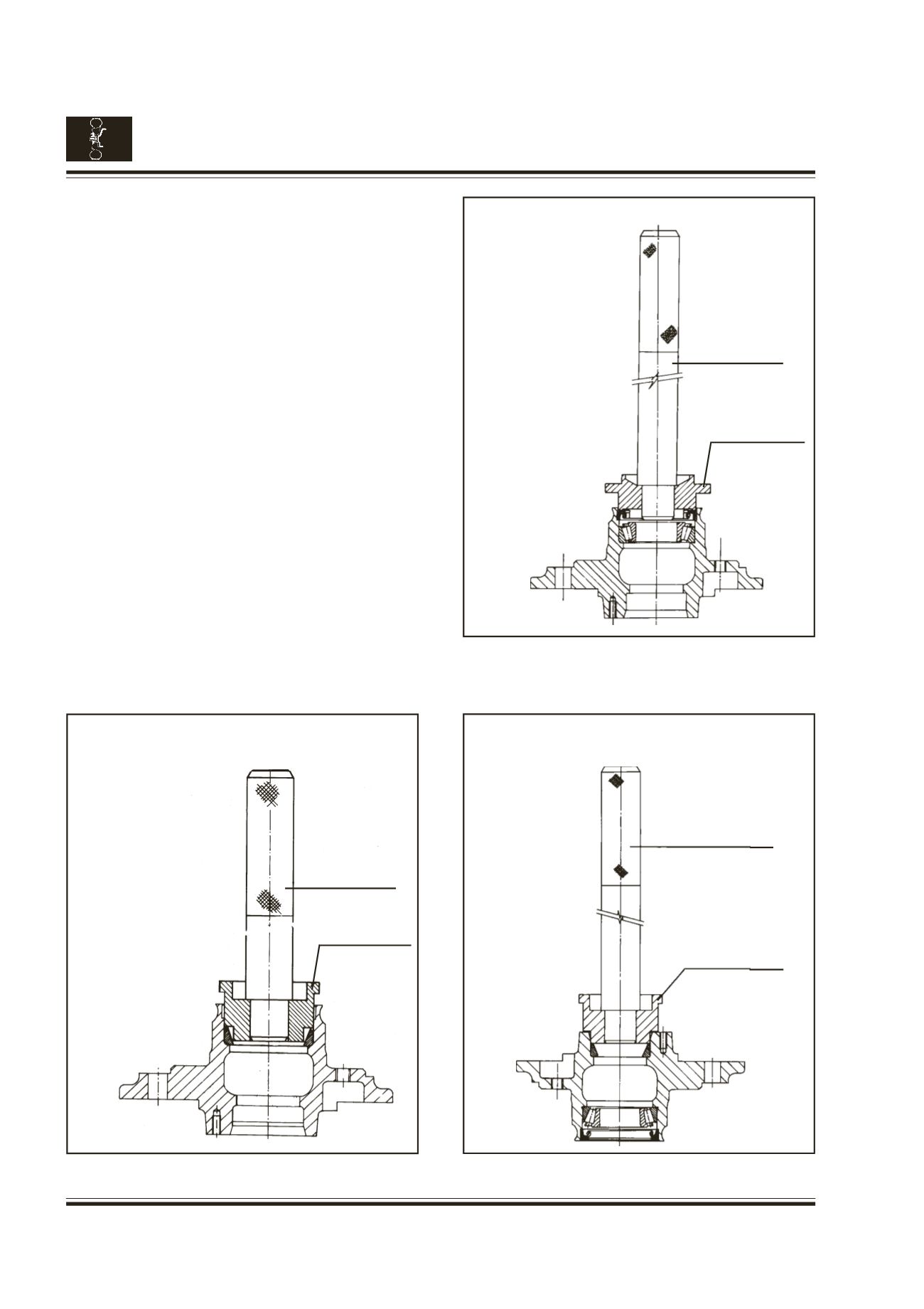

INSTALLATION OF FRONT HUB INNER
BEARING OUTER RACE
2640 5890 35 11
2654 5890 35 07
2640 5890 35 11
2654 5890 35 04
INSTALLATION OF OIL SEAL IN FRONT HUB
Fig. 8
2640 5890 35 11
2654 5890 35 07
INSTALLATION OF FRONT HUB
OUTER BEARING OUTER RACE
