SAFARI

FRONT AXLE - 4

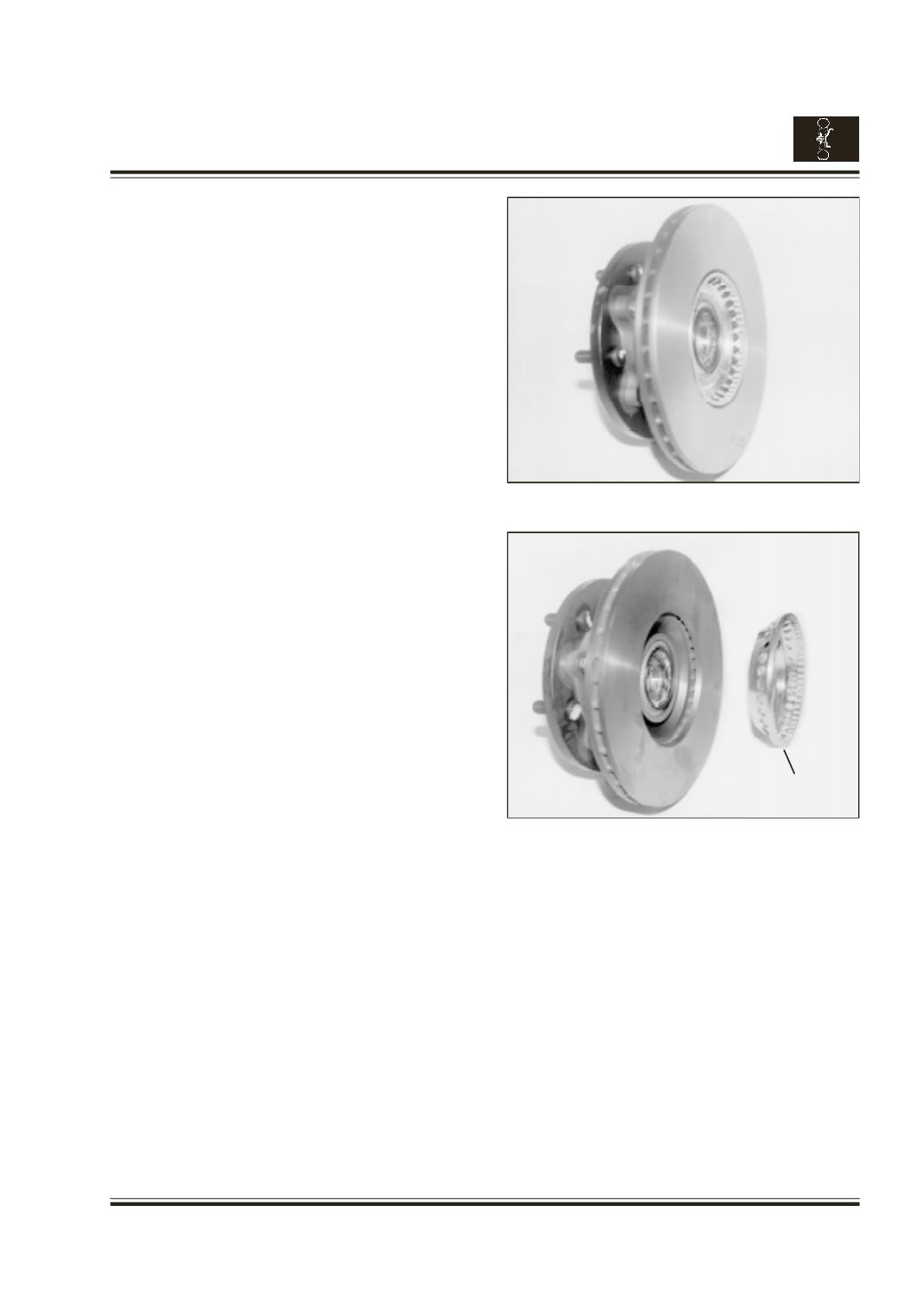

Fig. 2 ABS Front Hub

Fig. 3 ABS Toner Ring Front Hub

D. FRONTHUBASSEMBLYWITHABSTONERRING

In addition to the regular axles ABS toner ring is fitted

on the wheel hub. While the hub seal is fitted on the

inner dia, the toner ring is pressed to the outer dia of

the hub and Adapter sensor (bushing) is fitted on the

Knuckle assy. respectively.

Removal of the ABS Toner ring from the wheel

hub -

Remove the five bolts and lock washers that secure

the hub and the rotor (brake disc).

Holding the rotor (brake disc), press the hub out with

the help of a dolly or seal installer.Once the hubmoves

down, the toner ring comes out of the hub, becomes

free and remains on the rotor (brake disc), which can

be removed by hand.

Assembly of the ABSToner ring on the wheel hub -

The toner ring is press fit on the hub outer pressed

from the rotor end (brake disc end) and occupies the

cavity on the rotor (brake disc). The toner ring fitment

is the last operation after pressing the hub seal at the

rotor (brake disc) end. It will require a force of 3200

kgs minimum to seat the toner ring fully inside the

cavity.

Toner Ring
