CLUTCH

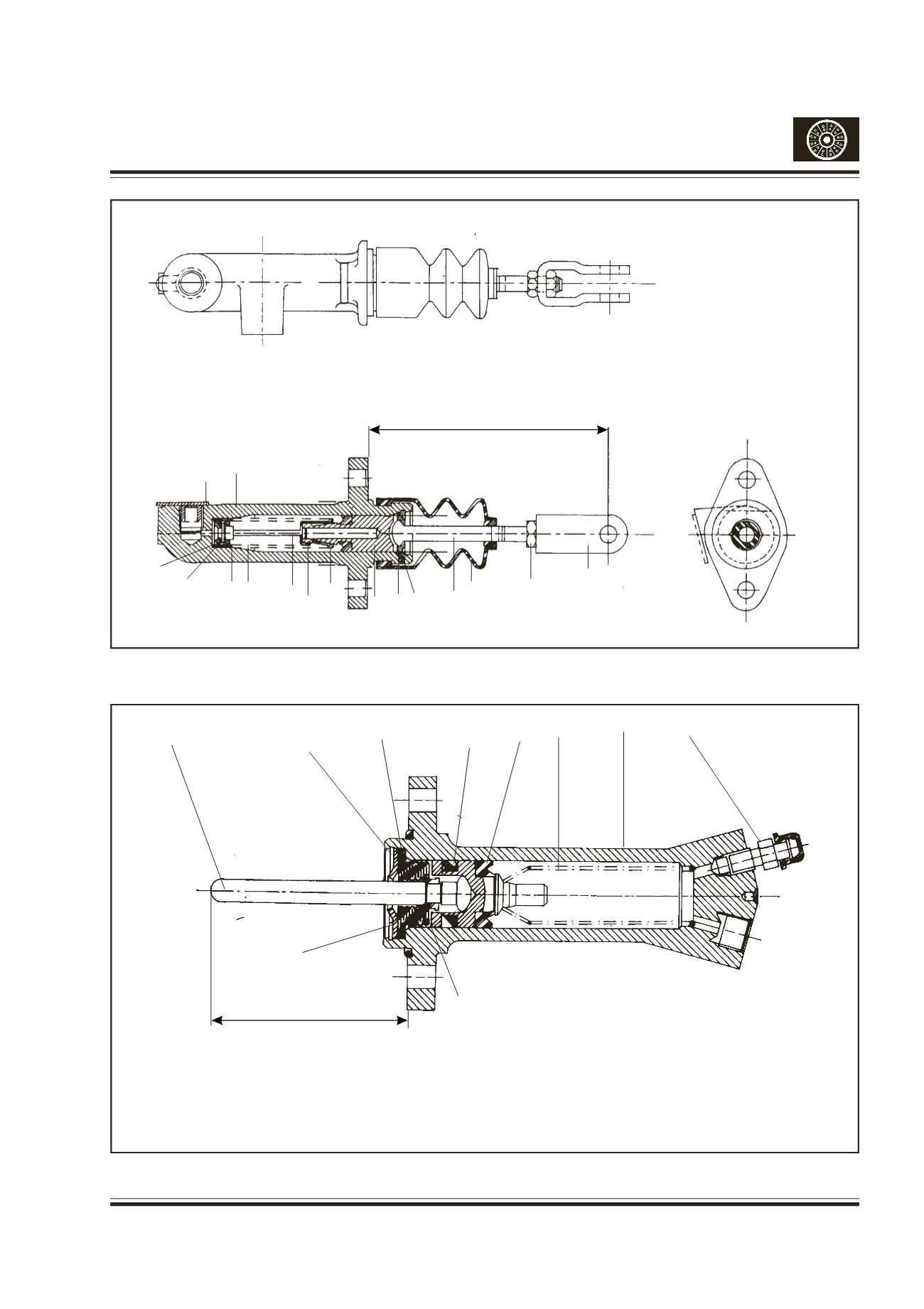

Fig.7 - Master Cylinder
Fig.8 - Slave Cylinder
1
2
3
5
6
7
8
4
1
2
3
4
5 6
7
8
9
10 11 12 13
14
15
16
1. MASTER CYLINDER BODY
2. GASKET
3. VALVE SEAL
4. SPRING WASHER
5. VALVE SPACER
6. SPRING
7. VALVE STEM
8. SPRING RETAINER
9. GLAND SEAL
10. PLUNGER
11. RETAINING WASHER
12. CIRCLIP
13. PUSH ROD
14. DUST COVER
15. LOCKNUT
16. FORK
1.
PUSH ROD
2.
WASHER
3.
DUST COVER
4.
CIRCLIP
5.
PLUNGER
6.
SEAL
7.
SPRING
8.
BODY
9.
BLEED SCREW
10. PISTON SEAL
126.0 mm.
9
68.7
mm.
10
