CLUTCH

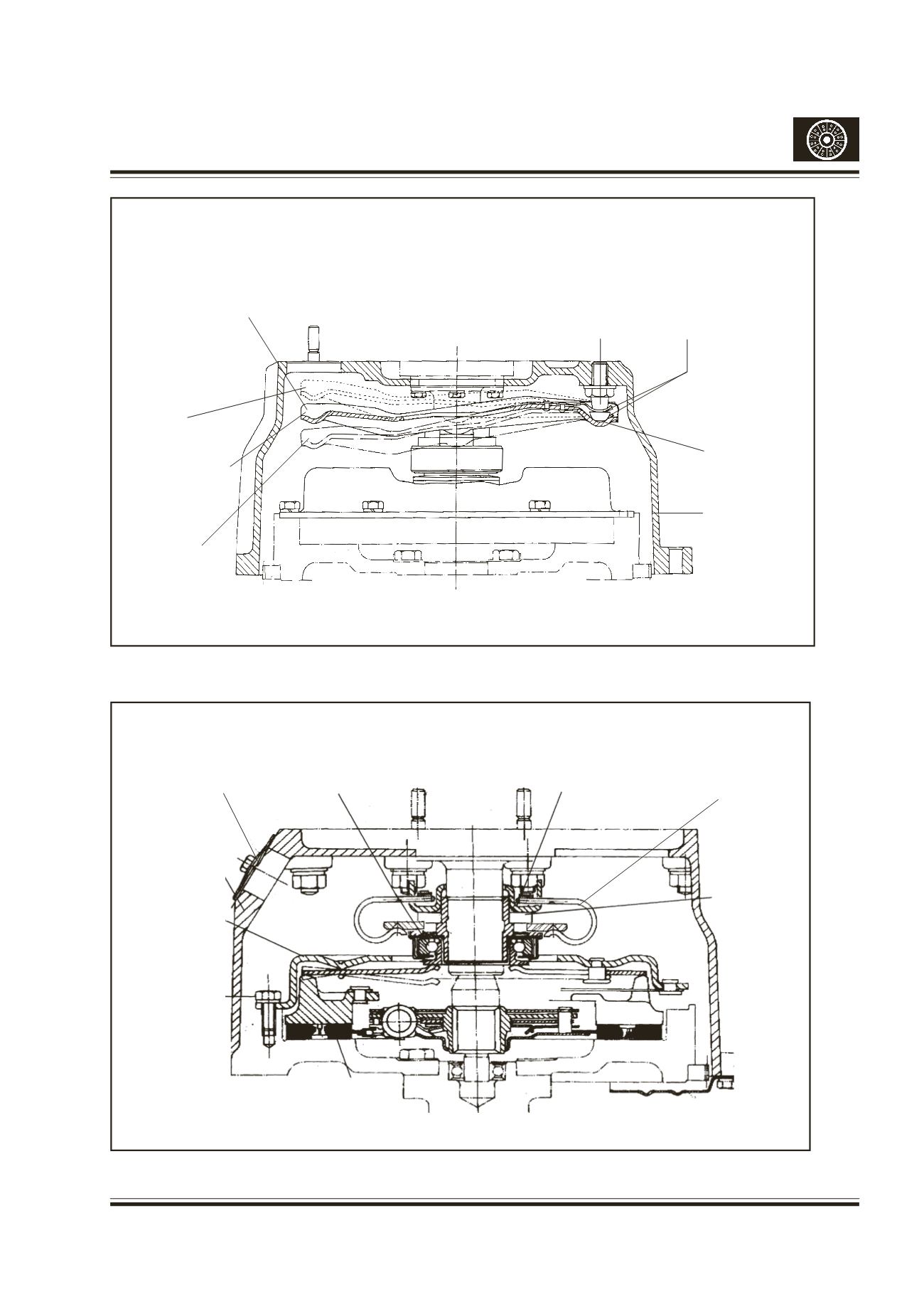

Fig.1 - Clutch release fork arrangement
CLUTCH
DISC
CLUTCH
MOUNTINGBOLTS
THIS POCKET
OF RELEASE
SLEEVE TO BE
FILLED WITH
GREASE 3%
MOS2
LUBRICATETHE
SURFACEWITH
GREASE 3% MOS2
CLUTCH
HOUSING
CLUTCH
RELEASE
BEARING
CLUTCH
COVER
Fig.2 - Clutch parts and the mounting arrangement
LUBRICATE FORK
BEARINGSURFACEWITH
GREASE 3% MOS2
WEAR
POSITION
ENGAGED
POSITION
DISENGAGED
POSITION
ASSY. CLUTCH
RELEASE FORK
CLUTCH
HOUSING
LUBRICATETHE
FORK, SPRING
PLATE & BALL PIN
BEARING WITH
GREASE 3% MOS2
BALL PIN
BACK
COVER
LOCKING
WIRE
COVER
INSPECTION
WINDOW
