BRAKES

3

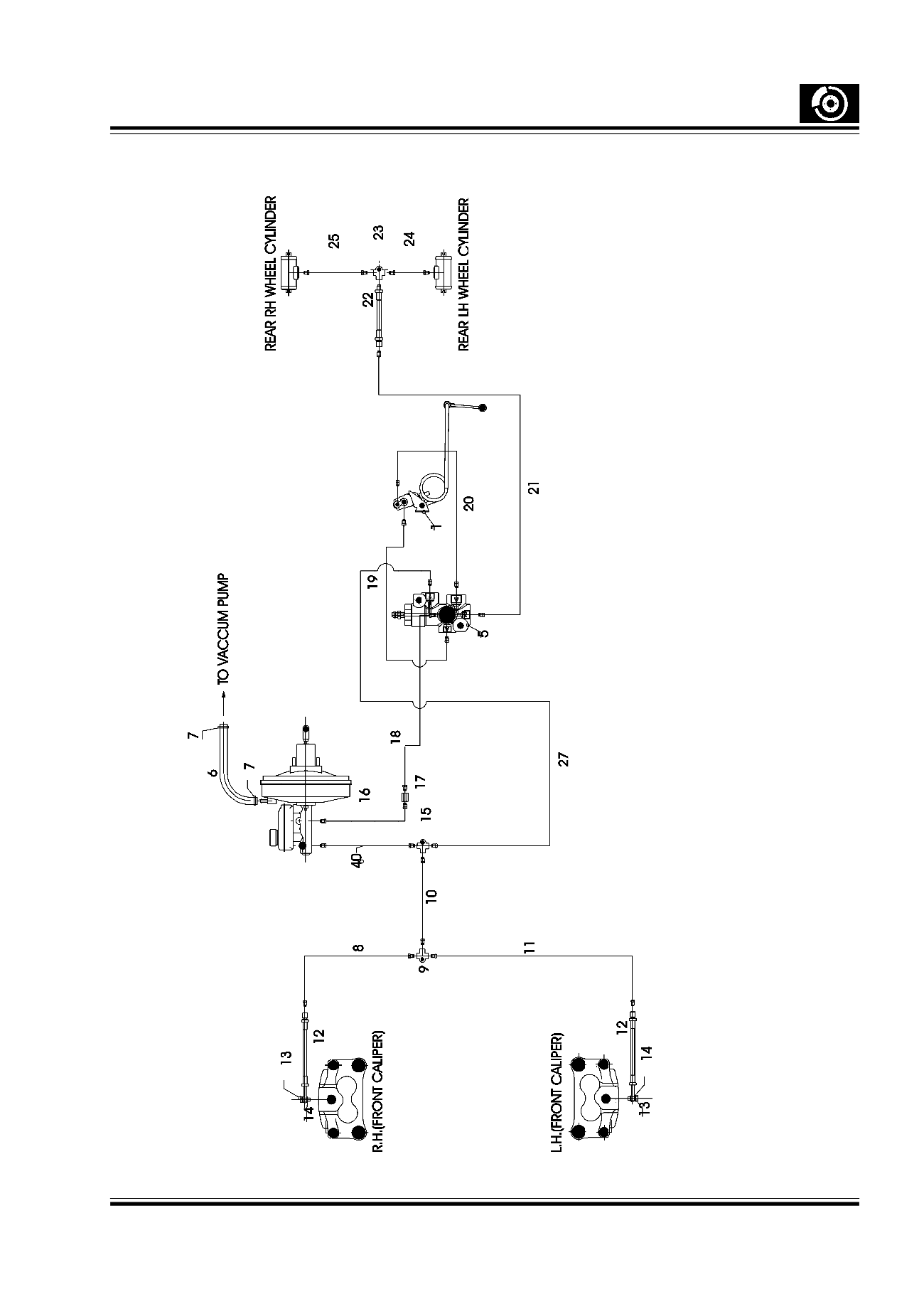

HYDRAULIC BRAKE LINES FOR NON ABS WITH BYPASS VALVE

HYDRAULIC LINES FOR NON ABS :

N0.

PART NAME

1 LCRV& LINKAGE ASSY.

2 ASSY.BRACKET (LCRVMTG.ONAXLE)

3 SCREWM8X20

4 HEXNUTM8

5 VALVEASSY.(BYPASSM/S-BI)

6 VACUUMHOSE

7 HOSE CLIP 21

8 ASSY.TUBE

9 THREEWAY CONNECTOR

10 ASSY.TUBE

11 ASSY.TUBE

12 ASSY FRONT BRAKE HOSE (BI) TWIN POT CAL

13 UNIONBOLT

14 SEALINGWASHER 10X13.5 IS3175 CU

15 THREEWAY CONNECTOR

16 ASSY.TUBE

17 ADAPTER (FROMADAPTORTOBYPASSVALVE)

18 ASSY.TUBE

19 ASSY.TUBE

20 ASSY.TUBE

21 ASSY.TUBE

22 ASSY.BRAKEHOSE.

23 THREEWAY CONNECTOR

24 ASSY.PIPE-HOSETOREAR LHWHEEL

25 ASSY.PIPE-HOSETOREARRHWHEEL

26 BRACKET (BRAKE LINE CLAMPING)

27 ASSY.TUBE

28 SCREWM8X20 8.8

29 HEX SCREWM8X40

30 SPRINGWASHER B8

31 ASSY.CLAMP

32 HOLDERBRAKEHOSE

33 BRACKET (FUEL LINE CLAMPING)

34 ASSY.CLAMP

35 HEX FL SCREWM6X16

36 HEXNUTM6

37 COATED CLAMP

38 VACUUMHOSE

39 ASSY.TUBE

40 ASSY.TUBE

41 ASSY.TUBE
