SAFARI

1379 / 1526

2
ABS - ECU DIAGNOSTIC
4. INSTALLATION AND OPERATING PROCEDURE
4.1. Installation of Software :
The Installation CD of the software is supplied with
the kit.
Follow the following steps to install the software:
Installation Procedure:
1. Insert the CD in the CD Rom.
2. Set-up will start running automatically.
3. After this the program will guide you for further
installation.
4. After successful installation , a short-cut to program
will appear on desk-top.
5. This program will be loaded in following directory
'C:/Program files/TATA MOTORS'

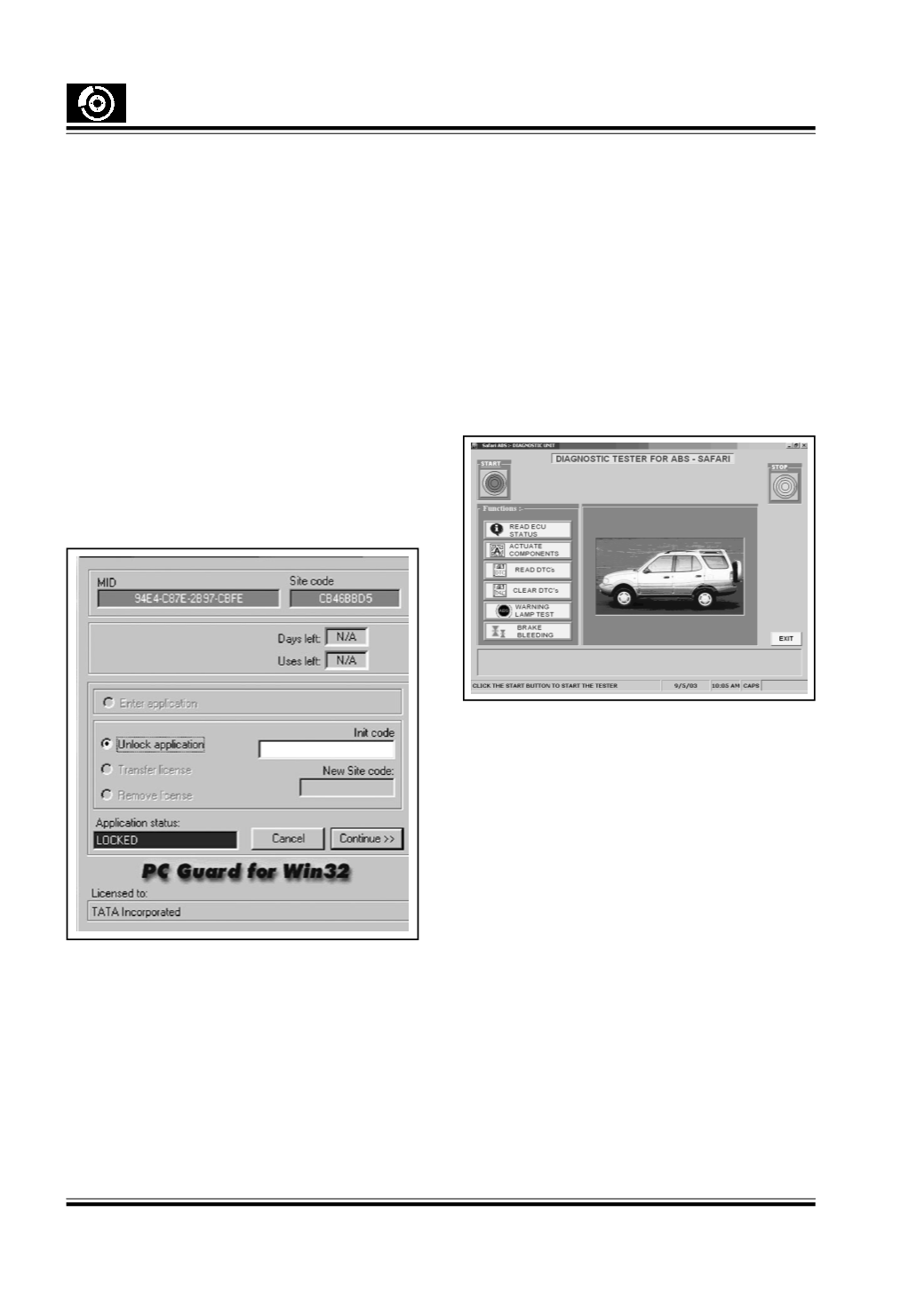

6. When user clicks the short-cut , following screen
will appear –
8. ThenApplication statuswill change to‘LICENSED’
Click continue to start the application.
9. Now your application is unlocked.
4.2. Operating Procedure :
4.2.1. MainMenu :
This is themain formfor theapplicationAll the functions
catering to the Diagnostic of the ECU can be performed
through the perform any function press the
respectivebutton.
To start the communication between the ECU and the
Tester press the “START” button . This initialises the ECU
communication and enables the other commands.
MID and Site code values in above fig. are for
example. These values are machine dependent.
These values will be different for your machine.
TheApplication statuswill be‘LOCKED’,for unlocking
theprogramuser has to sendMIDand Site codeby E-
mail on following E-mail ID -
7 After this TataMotors will send you Init code onmail.
Please enter that code in Init code box.
The Following operations can be performed with
the help of these commands:
1. Read ECU status
2. Actuate the components
3. Read the Diagnostic Trouble Codes (DTC’s)
4. Clear the Diagnostic Trouble Codes (DTC’s)
5. Warning Lamp Test
6. Brake Bleeding
7. Stop
