PROPELLER SHAFT
1

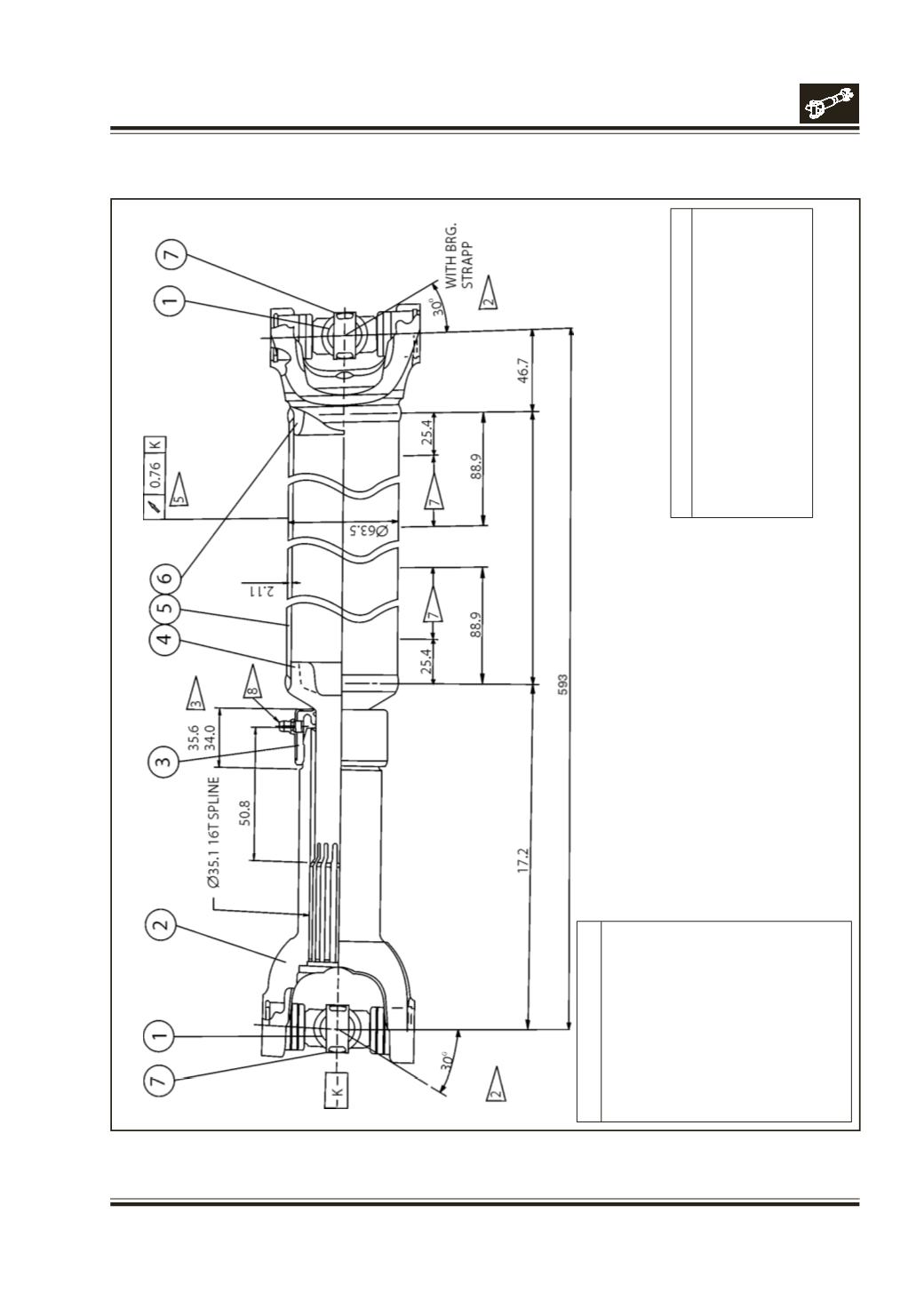

Fig. 1 : 4x4 Front propeller shaft
CONSTRUCTION
ITEM DISCRIPTION
1
UNIVERSAL JOINT
2
SLIP YOKE ASSY.
3
DUST CAP ASSY.
4
TUBE SHAFT
5
TUBE - CDW
6
TUBE YOKE
7
SHIPPING STRAP
8
BEARING STRAP
9
CAP SCREW
SPECIFICATION
1 Overall Length
618 mm
2 Closed Length
593 mm
3 Tube shaft Length
374 mm
4 Max. Swing Dia.
100 mm
