ENGINE

145

SR.

Description

NO.

01 FRONT ENGINE SUPPORT

RIGHT

02 FRONT ENGINE SUPPORT

LEFT

03 SCREW

04 SPRINGWASHER

05 SCREW

06 LIFTINGHOOK (REAR)

07 ASSY.ENGINEMTG.

FRONT LH

08 ASSY.ENGINEMTG.

FRONT - RH

09 BRIGHTWASHER

10 SPRINGWASHER

11 HEXSCREW

12 COVER ENG.MTG.

FRONT/RH.

14 SPRINGWASHER

15 HEXBOLT

16 ASSY.ENGINE

MOUNTING-REAR

17 SPRINGWASHER

18 HEXNUT

19 WASHER

20 HEXSCREW

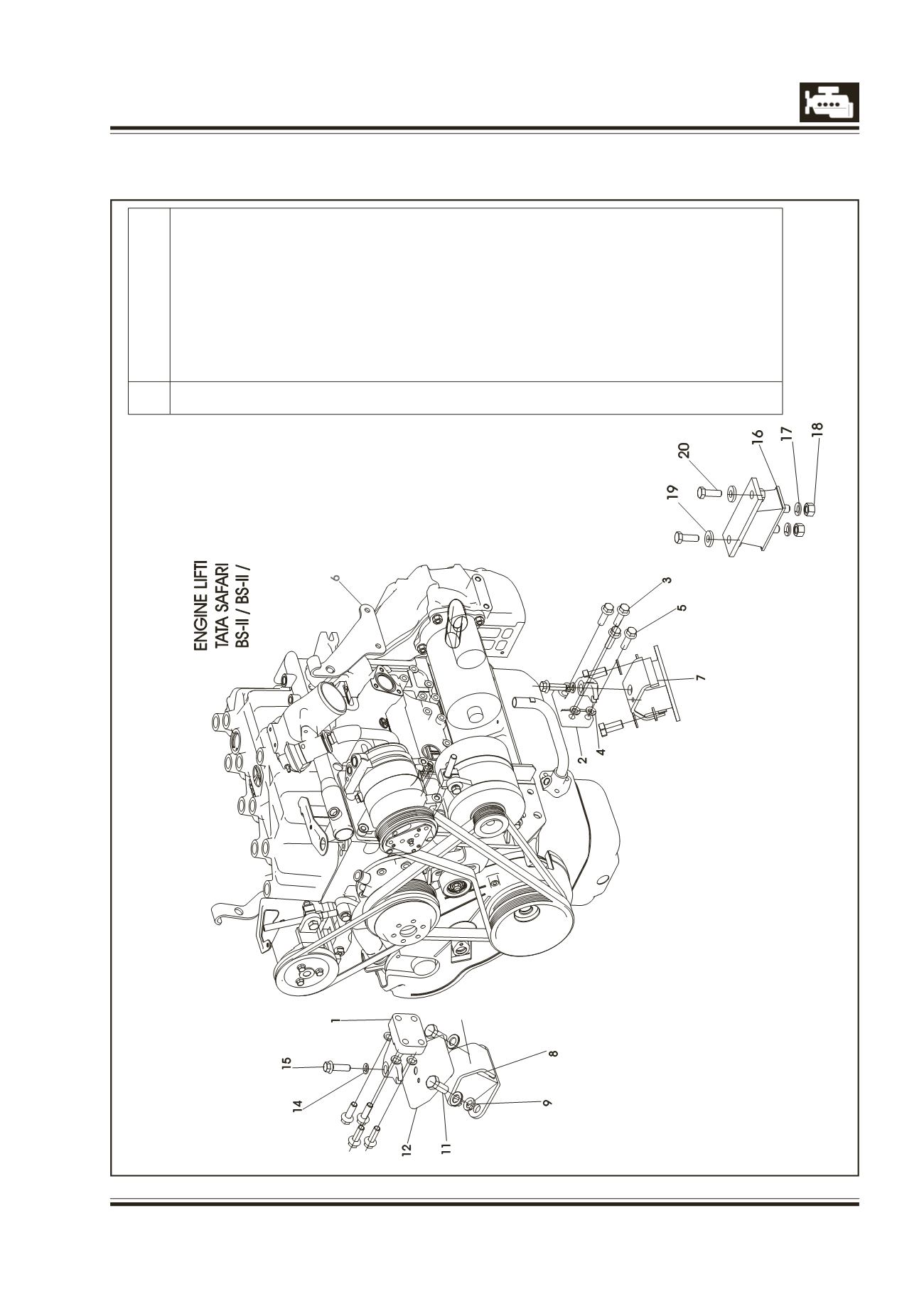

ENGINE LIFTING AND SUSPENSION

EXPLODED VIEWS
