SAFARI

GEAR BOX G-76

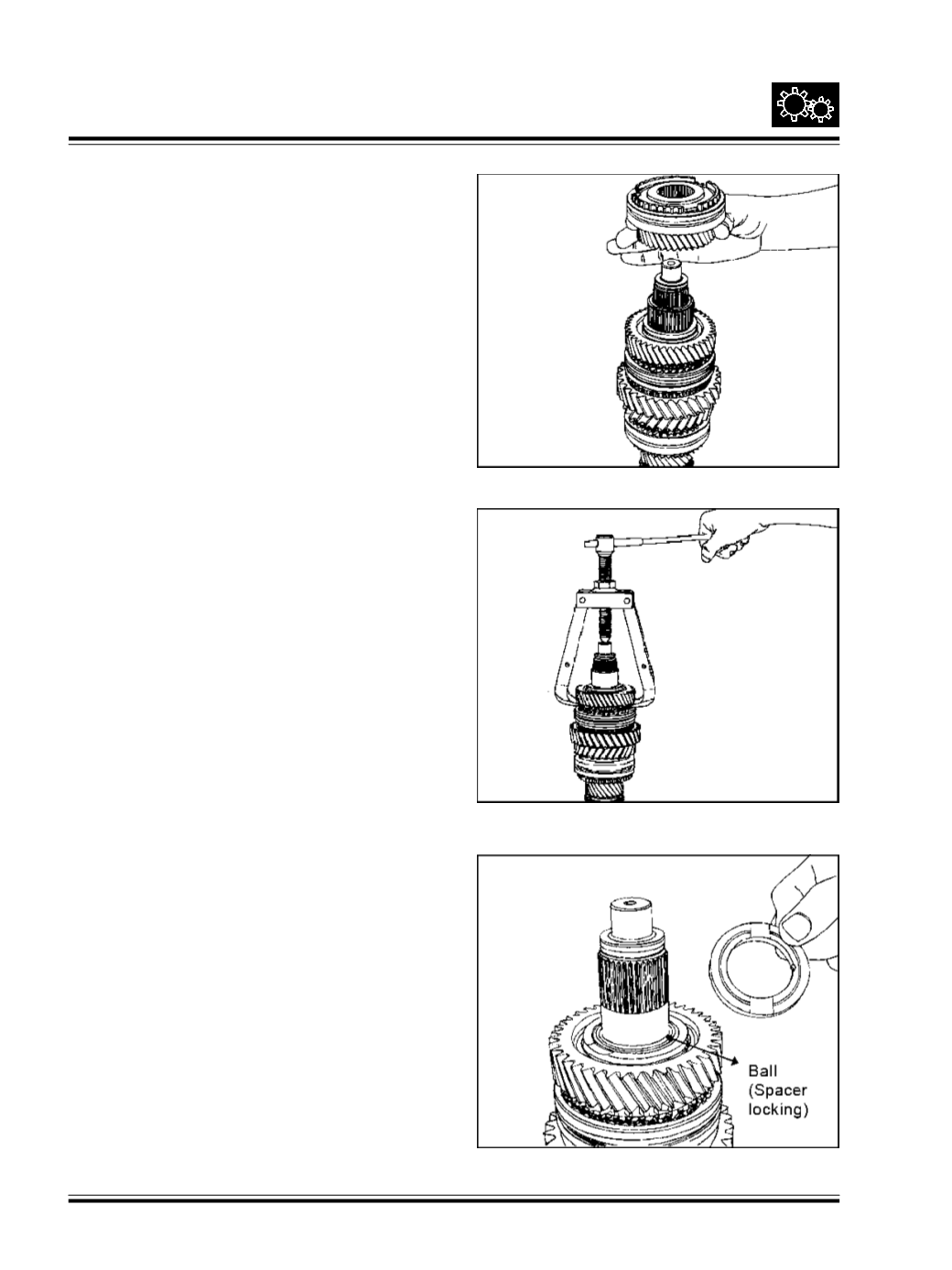

Take out 3rd speed gear along with 3rd / 4th shifter

sleeve and engaging gear. Ref fig. 42

Remove needle roller cage.

Gently separate out shifter sleeve from engaging gear

and remove carriers, springs and balls - 5 mm dia.

Separate out synchro cone.

Hold the shaft firmly and pull out bush along with

spacer and 2nd speed gear with the help of puller. Pt.

No. 312 589 25 33. Ref Fig. 43

Fig. 42

Fig. 43

Fig. 44

Remove spacer locking ball – 3. Ref Fig. 44
