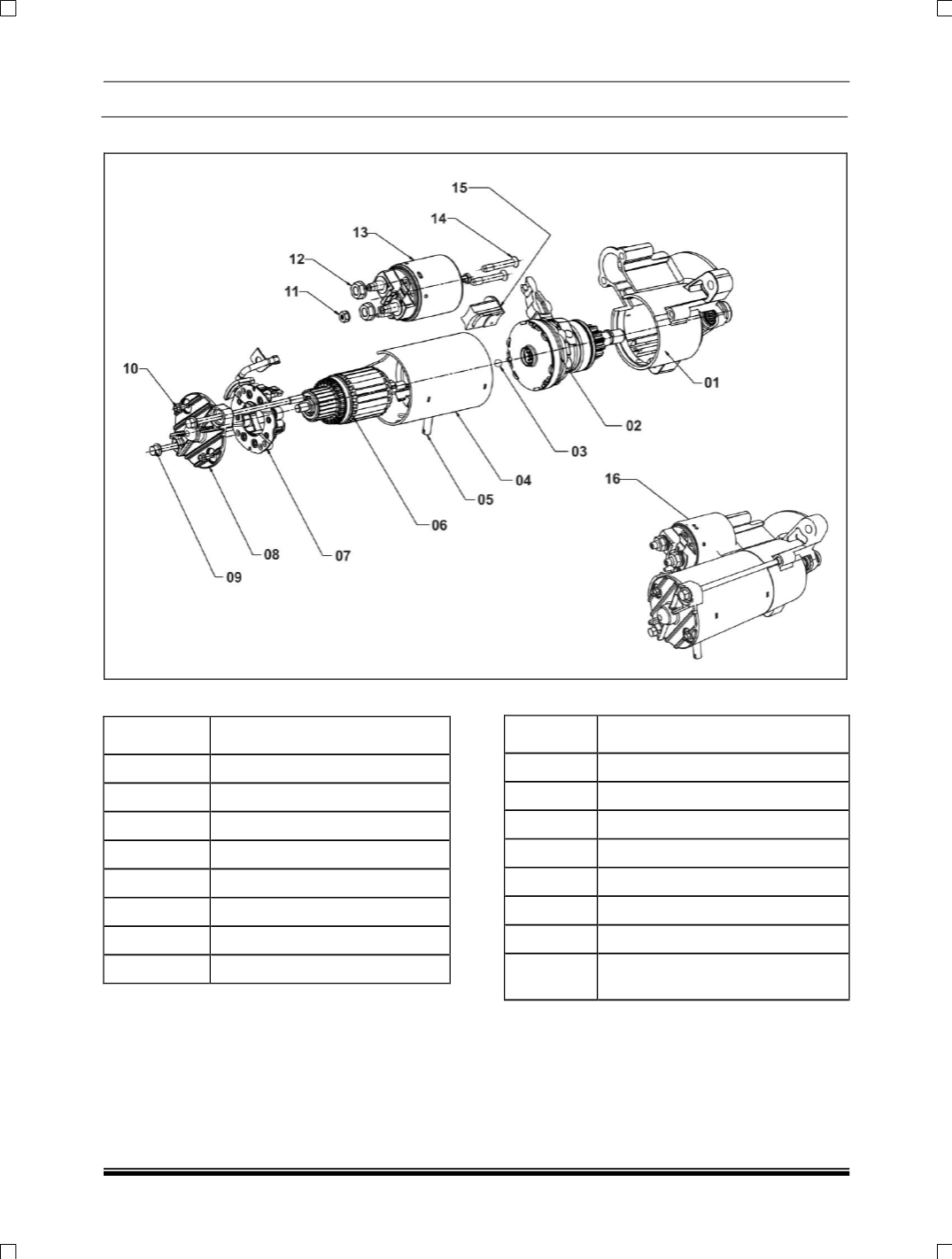

EXPLODED VIEW:
STARTER MOTOR (PART LIST):
ITEM NO.
DESCRIPTION
01
HOUSING ASSY
02
DRIVE ASSY
03
THRUST BALL
04
FRAME ASSY
05
DRAIN TUBE
06
ARMATURE
07
BRUSH HOLDER ASSY
08
END PLATE
ITEM NO.
DESCRIPTION
09
THRU BOLT
10
BRUSH HOLDER SCREW
11
SOLENOID TERMINAL NUT -M5
12
BATTERY TERMINAL NUT M8
13
SOLENOID ASSY
14
SOLENOID SCREW
15
SEAL
16
STARTER _ MOTOR _ 12V,
1.4KW
CIRCUIT DIAGRAM:
