DRIVETRAIN-TA65 Star
23

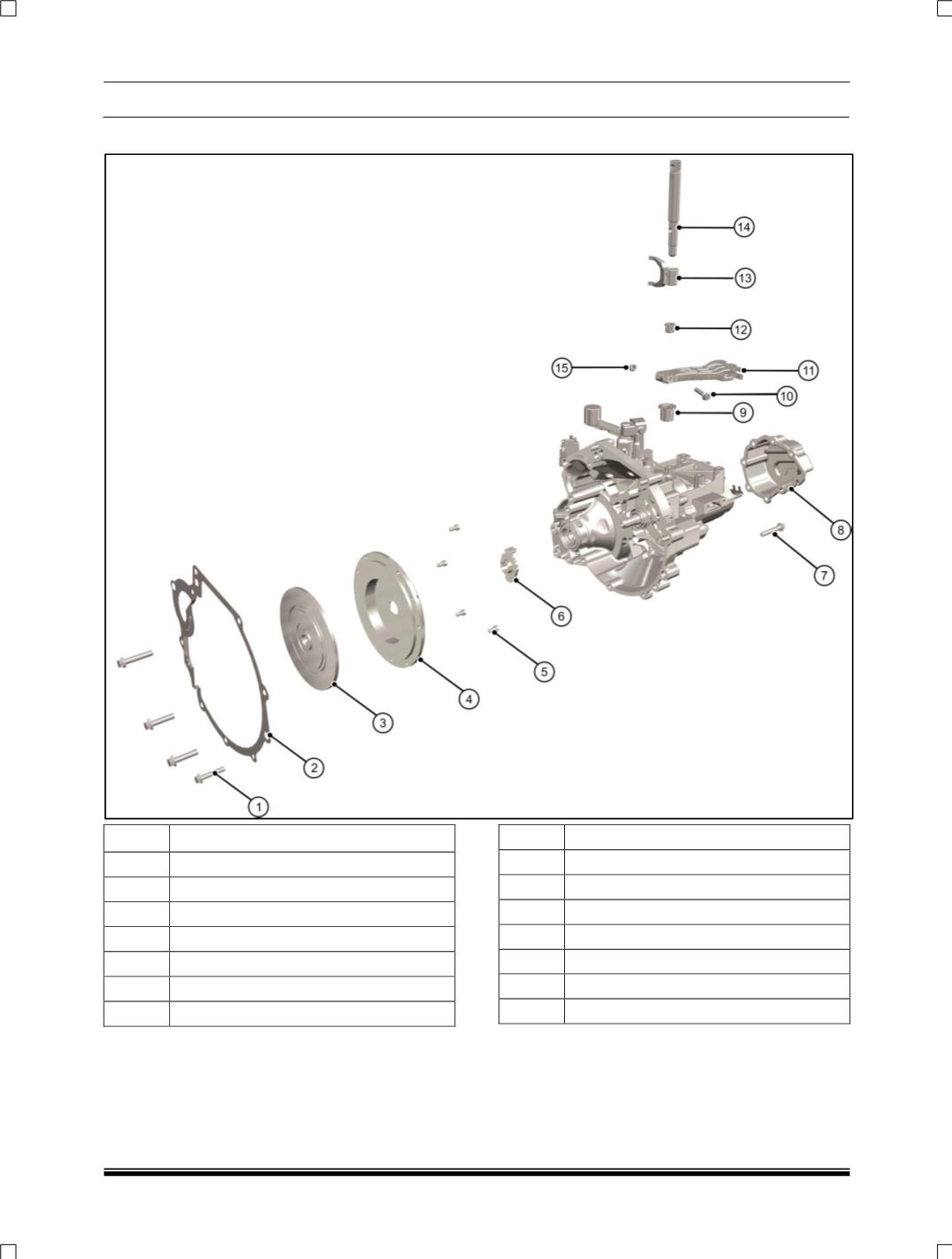

CONSTRUCTIONAL DETAILS (DIESEL)
S. No.
COMPONENT DESCRIPTION
1
Hex Fl Bolt Ts17130
2
Back Cover
3
Clutch Disc Assembly
4
Clutch Cover Assembly
5
Hex. Flange Screw
6
Sleeve
7
Hex Fl Bolt Ts17130
8
Rear Cover
9
Bush, Lower
10
Hex Fl Bolt Ts17130
11
Clutch Release Lever
12
Bush, Upper
13
Clutch Release Yoke
14
Clutch Release Shaft
15
Hex Nut
Clutch is a mechanism interposed between engine
and the Transaxle which enables engine power as
well as torque of the engine to be transmitted to
the transaxle through friction drive. When clutch
pedal is depressed the clutch is disengaged and
therefore motion and power flow from engine to
Transaxle and hence to road wheels is
disconnected.
It is a single disc dry friction type clutch having 200
mm dia. clutch disc. Clutch pressure plate
assembly is diaphragm spring type. Clutch
actuation is through mechanical linkages (cable).
