DRIVETRAIN-TA65 Star

22

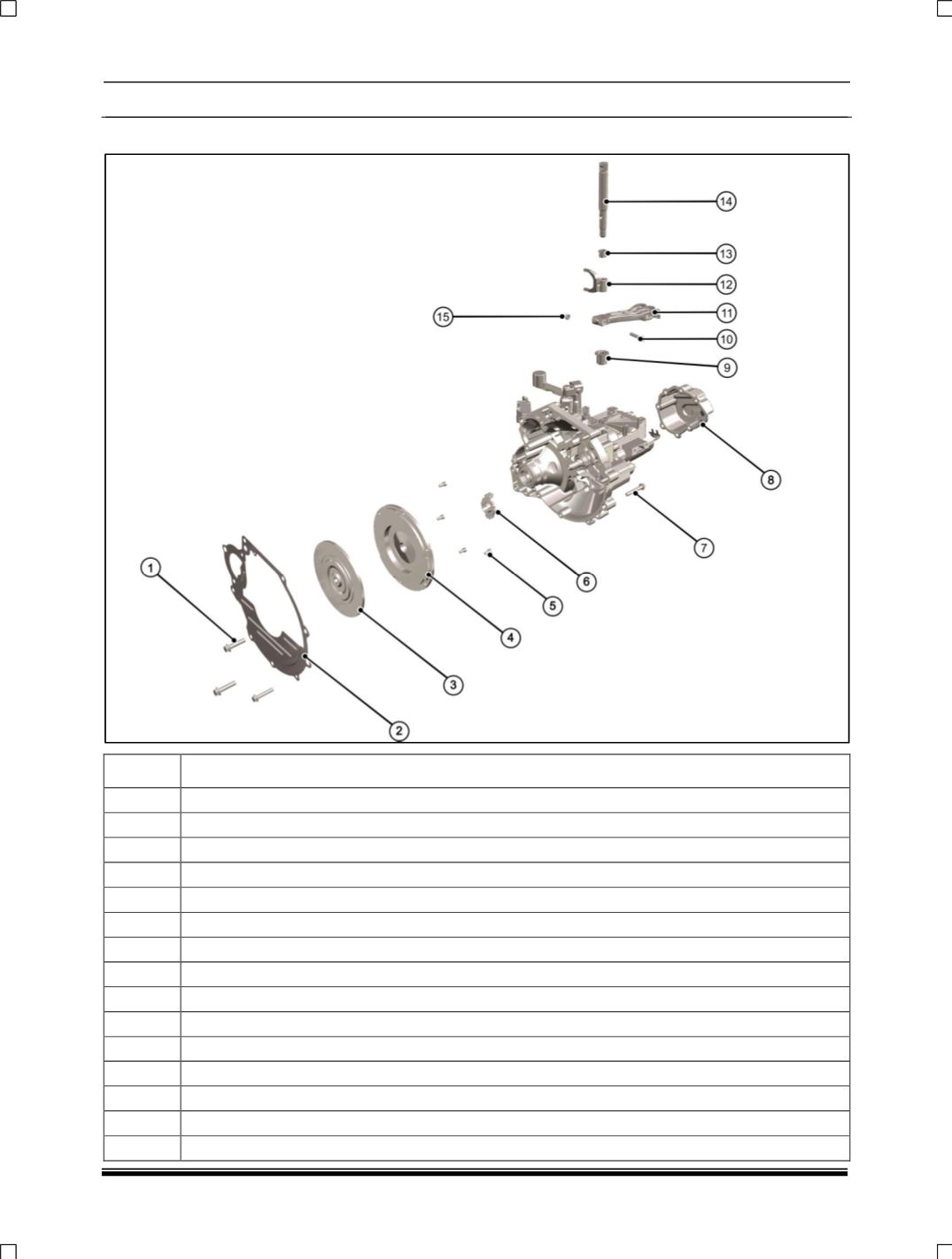

4.6. B. CONSTRUCTIONAL DETAILS (PETROL)

S. No.

COMPONENT DESCRIPTION

1

Hex Fl Bolt Ts17130

2

Back Cover

3

Clutch Disc Assembly

4

Clutch Cover Assembly

5

HEX. FLANGE SCREW

6

Sleeve

7

Hex Fl Bolt Ts17130

8

Rear Cover

9

Bush, Lower

10

Hex Fl Bolt Ts17130

11

Clutch Release Lever

12

Clutch Release Yoke

13

Shaft Bush, Upper

14

Clutch Release

15

Hex Nut
