SAFARI

REAR AXLE

Fig. 31

Fig. 30

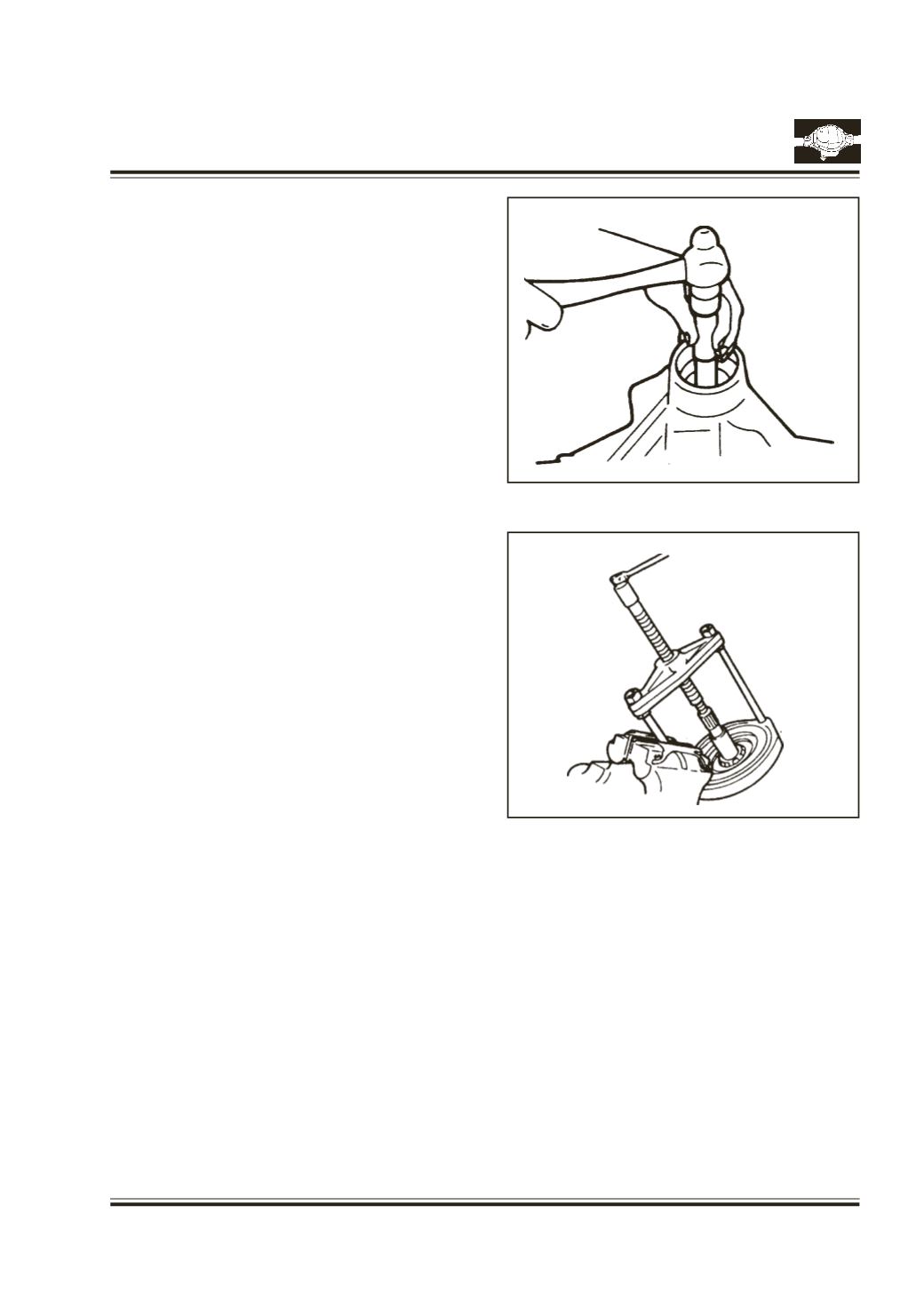

Turn nose of carrier up and remove inner pinion bearing

cup.

Locate driver on back edge of cup, then drive out cup

using Remover, rear pinion bearing cup. Pt. No. 2698

5890 3511 and handle

2698 5890 3506.

Fig. 30

Note:

A pinion depth shim is located between the

inner pinion bearing cone and pinion gear.

Remove inner pinion bearing using Press Pt. No.

698 5890 3515, Adapter, rear pinion bearing cone.

2698 5890 3503 and adapter ring Pt. No. 2698 5890

3516.

Fig. 31

Remove pinion depth shim from pinion.

CLEANING AND INSPECTING

Wheel Unit Bearing

Clean bearing cup with metal cleaning solvent.

Inspect cup for any possible wear, nicks etc.

The cone assembly can be cleaned in place on the

axle shaft.

Use stiff bristle brush and compressed air.

Note:

Bearing should not be ‘Spin dried’ with

compressed air. Air should be directed so

that it goes through the bearing.

Clean bearing bore in the housing.

After inspection, lubricate bearing with a small

amount of specified lube prior to installation.
