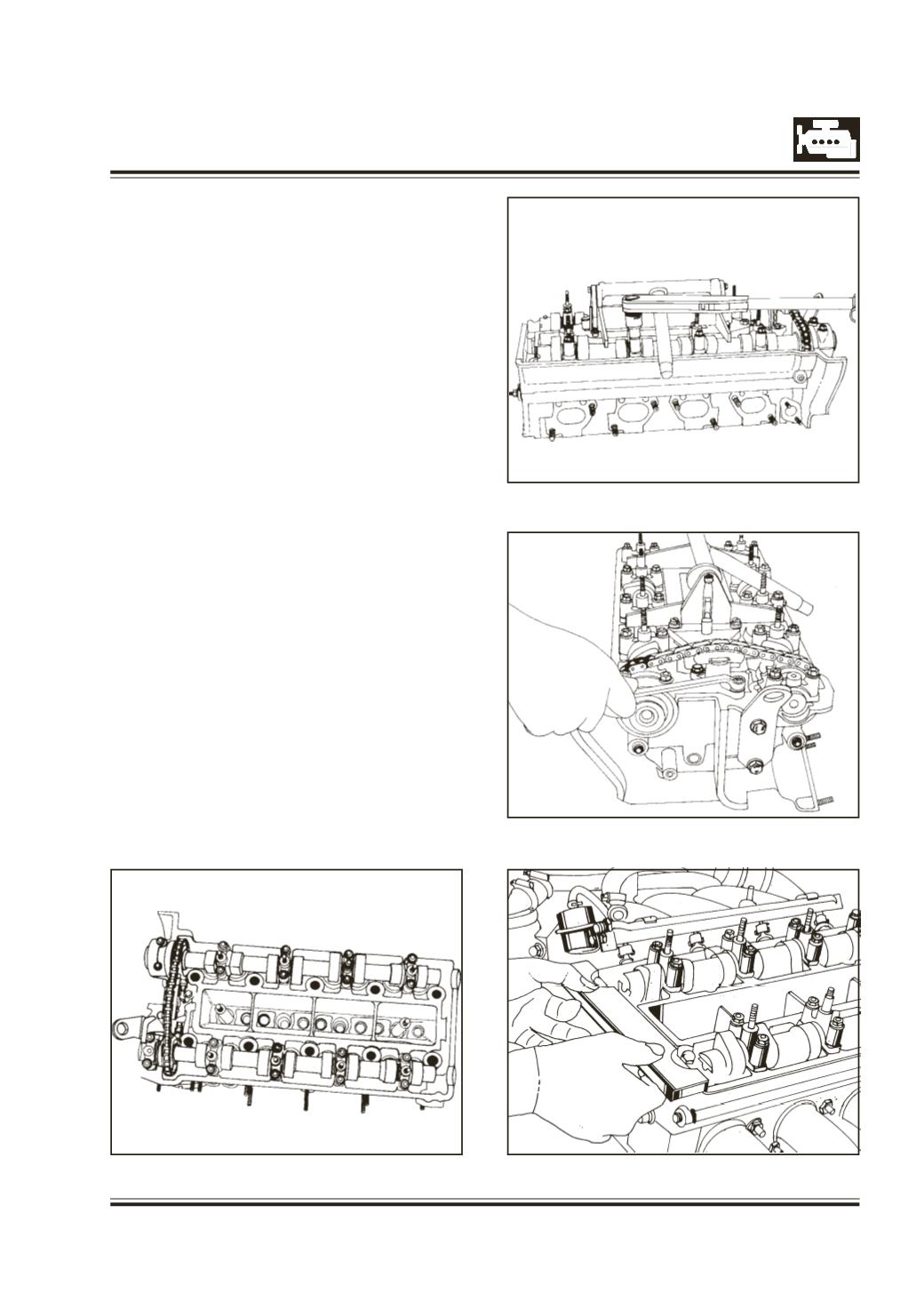

Apply anabond 611 sealant on parting faces

between 1st and 5th cap and cylinder head.

Install cam shaft pressing tool (Pt No. 2699 5890

0602) at the spark plug location. Fig. 131

Press both the cam shafts. Fig. 132

Place all the bearing caps at their respective

position as numbered.

Fit bearing cap nuts with New washers

Tighten to specified torque, first the middle cap and

then move outwards. Fig. 132

Tighten mounting nuts of hydraulic chain tensioner.

Fig. 133

Check the timing plate (Pt No. 2699 5890 0601)

easyness when inserted in slots. Fig. 134

Rotate either of the camshaft if required.

Fig. 134
